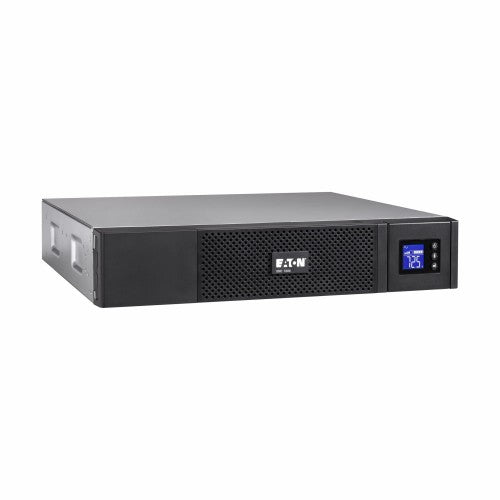

5SC UPS, Line-interactive, 1500 VA, 1050 W, Input C14, Outputs 8 x C13, Rack, 2U, with BS input cord
Description
The new Eaton 5PX Gen2 UPS provides Enterprise Networks and Edge IT equipment with best-in-class line-interactive power protection maximising IT space and Service Continuity. Eaton 5PX Gen 2 offers powerful tools to remotely monitor, integrate with IT architecture and remotely deploy / maintain large installed base of UPSs.
Specifications
| Power |
|---|
| Output power factor |
0.7 |
| Output power |
1050 W |
| Input operation voltage (min) |
184 V |
| Input operation voltage (max) |
276 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
97% |
| Power factor |
0.7 |
| Output power capacity |
1.5 kVA |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Power protection features |
Overdischarge |
| Noise level |
40 dB |
| Features |
|---|
| Output frequency |
50/60 Hz |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output power factor |
0.7 |
| Output power |
1050 W |
| Input operation voltage (min) |
184 V |
| Input operation voltage (max) |
276 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
97% |
| Power protection features |
Overdischarge |
| Power factor |
0.7 |
| Noise level |
40 dB |
| Output power capacity |
1.5 kVA |
| Input frequency |
45/65 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| AC outlets quantity |
9 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
C20 coupler |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| USB port type |
USB Type-B |
| Battery |
|---|
| Number of batteries supported |
3 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Typical backup time at full load |
5 min |
| Automatic battery test |
Yes |
| Design |
|---|

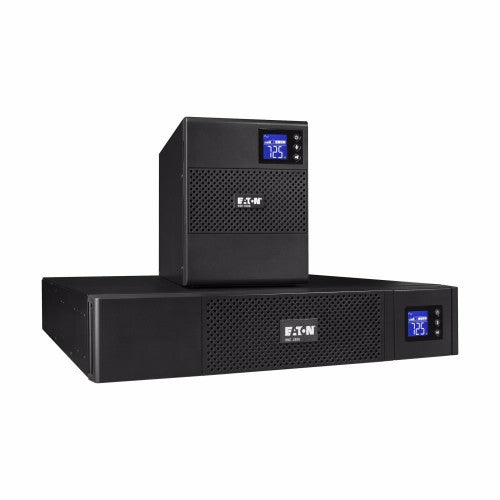

| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Certification |
TUV
IEC/EN 62040-1
IEC/EN 62040-2
EAC
cTUVus
UL 1778 |

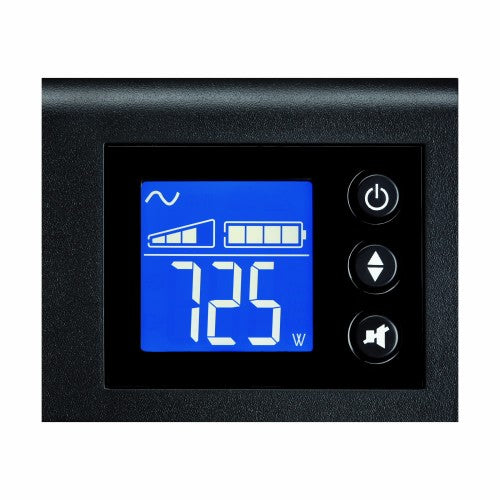

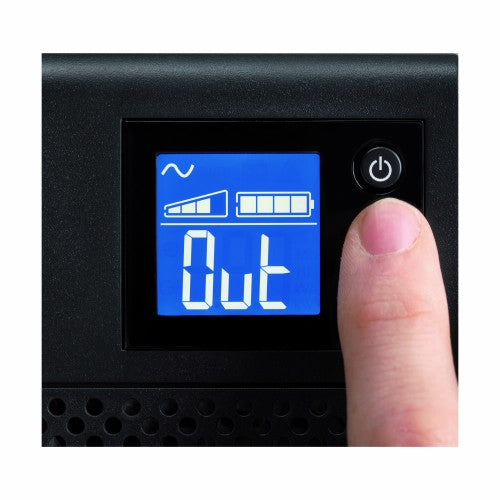

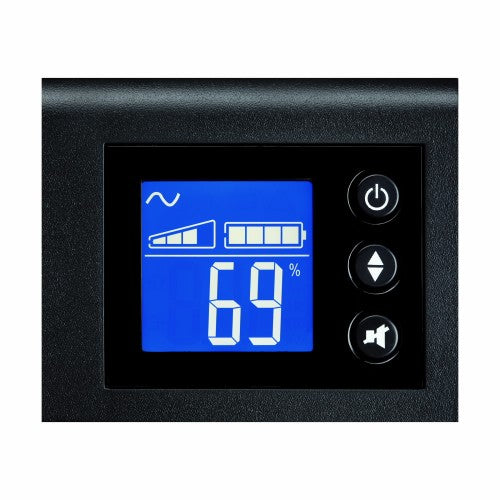

| Display type |
LCD |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Operating altitude |
0 - 3000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Sustainability compliance |
Yes |
| Compliance certificates |
CE |
| Weight & dimensions |
|---|
| Weight |
26.9 kg |
| Width |
522 mm |
| Height |
86.2 mm |
| Depth |
441 mm |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
Input power cable, USB cable |
| Rack mount kit |
Yes |
| Certificates |
|---|
| Certification |
TUV
IEC/EN 62040-1
IEC/EN 62040-2
EAC
cTUVus
UL 1778 |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
Input power cable, USB cable |
| Rack mount kit |
Yes |
