Description

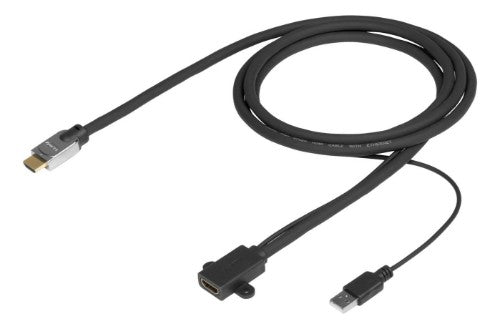

Pro HDMI Cable 5m M/F w/usb power - LSZH
Supports Resolutions up to 4K@60Hz with HDCP 2.2, CEC and ARC
LSZH: Low Smoke Zero Halogen
LSZH Cables from Vivolink is made with a smooth and strong surface. This makes these cables perfect for e.g. Magic Holes. Minimal friction and running smoothly.
Ultra flexible.
Unique design features made for Professional AV environments.
USB cable for power injection (fiber cables).

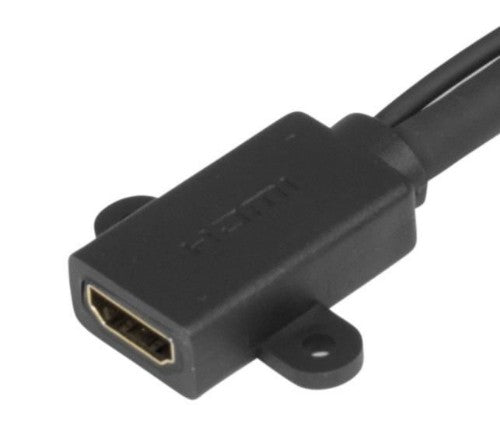

HDMI female end has ears for securing and mounting the cable e.g under a table
Key Features
- All HDMI resolutions up to 4K (4096x2160p @60Hz), including 3D video
- Support sample rate 4:4:4
- Transfer speed 18 Gbit/s
- HDCP 2.2
- Supports Deep Color, up to 16-bits per channel, including x.v.Color standard
- Supports the 21:9 cinema aspect ratio
- Supports SA-CD, DVD-Audio, DTS-HD Master Audio, Dolby TrueHD, and other highde inition audio standards
- Audio Return Channel
- Auto Lip Sync
- Supports up to 32 audio channels and a 1536 kHz audio sampling rate
- Dynamic sound synchronization
- Supports extended CEC (Consumer Electronics Control) commands and functions
- the HDMI Ethernet Channel, and the Audio Return Channel features
- Fully assembled with 19 pins connected

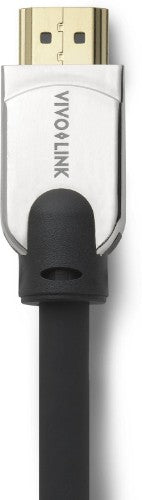

- High quality HDMI A connector, 15um gold min. in contact area for high reliability and professional use
- 99,9% pure copper wires for lossless picture transmission
- Triple shielded cable and extra shielding in the connector
- High Flexibility ensuring small bending radius
Description
High Performance and High Speed HDMI 2.0 18Gbit Cable with Ethernet and Metal Housing.Supports Resolutions up to 4K@60Hz with HDCP 2.2, CEC and ARC
LSZH: Low Smoke Zero Halogen
LSZH Cables from Vivolink is made with a smooth and strong surface. This makes these cables perfect for e.g. Magic Holes. Minimal friction and running smoothly.
Ultra flexible.
Unique design features made for Professional AV environments.
USB cable for power injection (fiber cables).
HDMI female end has ears for securing and mounting the cable e.g under a table
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Cable length | 5 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDMI version | 2.0 |
| Data transfer rate | 18 Gbit/s |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| HDCP | Yes |
| Quantity per pack | 1 pc(s) |
| Cable jacket material | Low smoke zero halogen (LSZH) |
| HDCP version | 2.2 |
| Weight & dimensions | |
| Package weight | 390 g |
| Weight | 388 g |
| Package width | 164 mm |
| Package depth | 146 mm |
| Package height | 61 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
