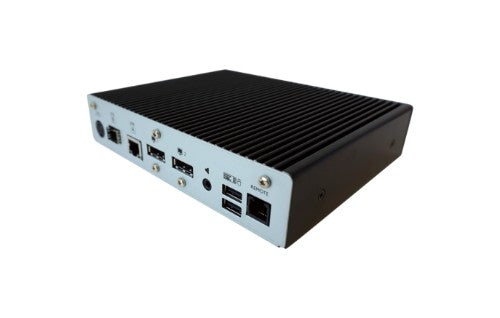

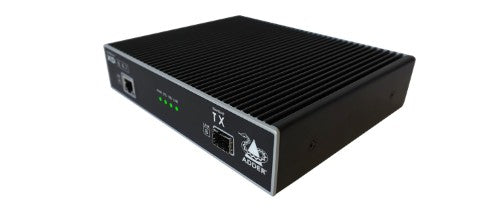

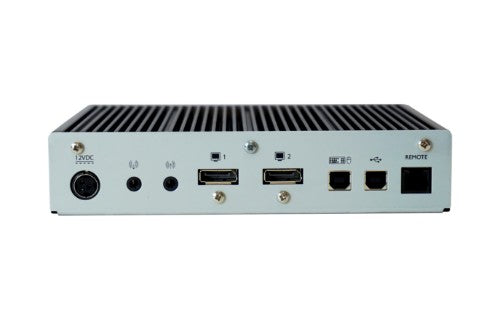

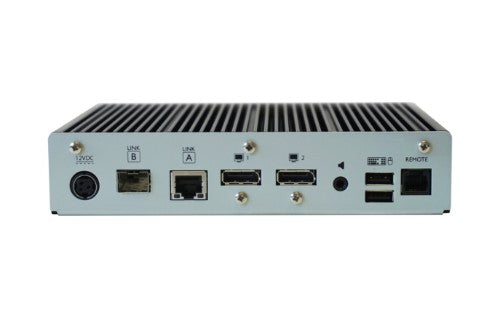

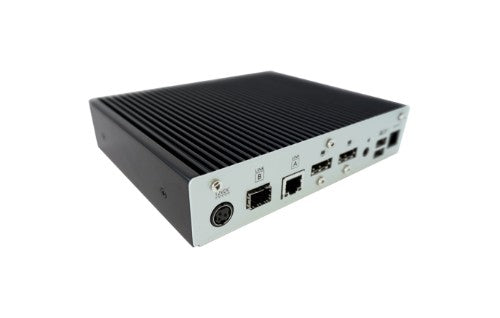

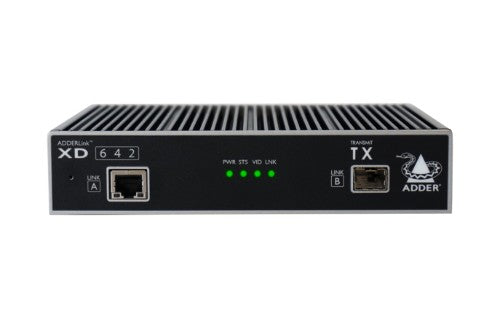

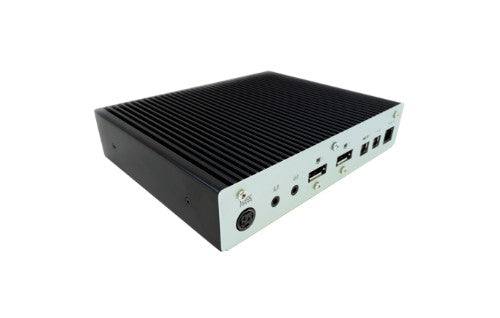

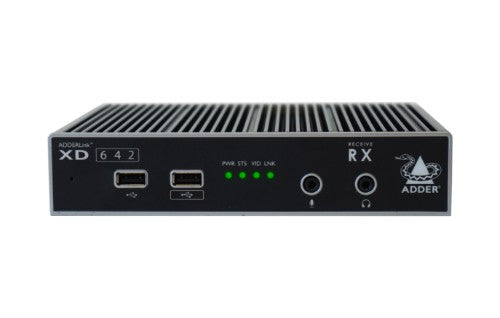

Link XD642, KVMA, DisplayPort, USB2.0
Key Features
- Dual-head 4K60 video, USB2.0 and audio
- Point-to-point protocol for ultra-low latency
- Flexibility between copper and fiber connectivity
- Adder’s USB emulation ensures reliable computer bootup
Description
The ADDERLink XD642 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience.
Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high performance 4K KVM extension; resulting in superior functionality and flexibility in a cost-effective, reliable and straightforward solution.
Specifications
| Features |
|---|
| Type |
Transmitter & receiver |
| Connectivity technology |
Wired |
| Maximum transfer distance |
4000 m |
| Cable types supported |
Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8.1, Fiber |
| Maximum digital resolution |
4096 x 2160 pixels |
| Product colour |
Black |
| Material |
Metal |
| Plug and Play |
Yes |
| Certification |
CE, FCC |
| Colour depth |
8 bit |
| USB 2.0 ports quantity |
6 |
| LED indicators |
Status |
| Supported resolutions |
up to 4096x2160 @ 60Hz using 8 bits per color and 4:4:4 chroma sampling |
| Transmitter |
|---|
| Transmitter video port type |
DisplayPort |
| Transmitter local keyboard/mouse port type |
USB |
| RJ-45 ports quantity (transmitter) |
1 |
| Receiver |
|---|
| Receiver local video port type |
DisplayPort |
| Receiver local keyboard/mouse port type |
USB |
| RJ-45 ports quantity (receiver) |
1 |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
47/63 Hz |
| AC adapter output voltage |
12 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Transmitter width |
18.6 cm |
| Transmitter depth |
14.8 cm |
| Transmitter height |
3.9 cm |
| Transmitter weight |
1.29 kg |
| Receiver width |
18.6 cm |
| Receiver depth |
14.8 cm |
| Receiver height |
3.9 cm |
| Receiver weight |
1.24 kg |
| Ports & interfaces |
|---|
| RJ-45 ports quantity |
2 |
| PC Audio in |
Yes |
| PC Audio out |
Yes |
| RJ-11 ports quantity |
2 |
| Packaging data |
|---|
| AC adapter included |
Yes |
| Packaging content |
|---|
| AC adapter included |
Yes |
