Description
10.1", 2K, IP65, Windows 10 Pro, WLAN, WWAN, Bluetooth, NFC
The Zebra L10 rugged platform offers a variety of tablet configurations and a shared accessory ecosystem that sets a standard in office, vehicle and field-based computing.

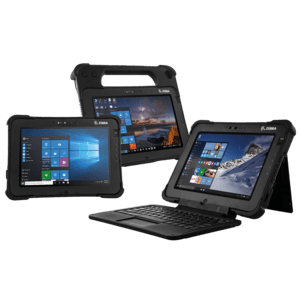

Whether your mobile workers prefer a traditional tablet form factor (XSlate L10), a tablet with a rigid-handle and built-in barcode reader (XPad L10), or a 2-in-1 laptop alternative with a detachable keyboard and KickStrap accessories with the XSlate (XBook L10), the flexibility of the Zebra L10 tablets ensures that your workers have the right computing tool for their job. Choose the right operating system for your business, whether that be Windows or Android. Only Zebra offers this many performance, security, connectivity and accessory options in one rugged mobile computer platform.
GET THROUGH TASKS FASTER
With more advanced CPU options, the performance-driven L10 rugged tablet platform is the right fit for your organisation, whatever your operating system. Both operating systems offer superior power for the blazing-fast application performance you need out in the field or in your facility. The L10axe Windows is equipped with the latest 11th generation Intel processors, while the L10 Android features the Qualcomm SD660 processors. The L10 is also available with a range of RAM and storage options for every business and agency application.
EXPAND YOUR USAGE CAPABILITIES
The L10 combines latest-generation NFC, Bluetooth, Wi-Fi, GPS and cellular technologies to provide uninterrupted connectivity. Keep your workforce connected wherever they are with the advanced wireless connectivity of the L10axe Windows with support for Wi-Fi 6E and optional 5G/4G and the L10 Android with 802.11ac Wi-Fi and optional 4G. Each L10 rugged tablet can be equipped with workflow-specific tools needed for nearly any application. This includes an optional true serial port, UHF RFID reader (AEI), a built-in barcode reader (XPad only) and more. Front-facing and 13 MP rear-facing high-resolution cameras enable capture of proof-of-condition/delivery, incident documentation, evidence and more.
USE IT VIRTUALLY ANYWHERE
The L10 platform defines the standard of rugged tablets. It is rated for a 6 ft. drop and the L10axe Windows is tested to the latest MIL-STD-810H, while the L10 Android is tested to MIL-STD-810G. It maintains its IP65 rating even with the port doors open. It can be used in cold storage, blowing dust, or driving rain. With sunlight viewable reinforced glass displays and an active digitiser option, your screen will be easy to read wherever you use it. Plus, the optional 5 pass-through antennas mean it's ideal for mounting in vehicles of all types.
LIGHTWEIGHT FOR EASY TRANSPORT
Whether you opt for Windows or Android, your XSlate L10 will deliver more than enough computing power. It is the smallest and lightest of the L10 family for workers who need the ultimate rugged traditional tablet. Roam far and wide connected to the information and people you need with advanced wireless connectivity. A hot swappable battery is standard, but this tablet will stay powered for over 24 hours with the extended-life, accessory battery.
Key Features
- A built-to-last rugged design
- Seamless push-to-talk communication and secure text messaging
- Easy to secure and manage
Description
A VERSATILE TABLET PLATFORM RUGGED TO THE COREThe Zebra L10 rugged platform offers a variety of tablet configurations and a shared accessory ecosystem that sets a standard in office, vehicle and field-based computing.
Whether your mobile workers prefer a traditional tablet form factor (XSlate L10), a tablet with a rigid-handle and built-in barcode reader (XPad L10), or a 2-in-1 laptop alternative with a detachable keyboard and KickStrap accessories with the XSlate (XBook L10), the flexibility of the Zebra L10 tablets ensures that your workers have the right computing tool for their job. Choose the right operating system for your business, whether that be Windows or Android. Only Zebra offers this many performance, security, connectivity and accessory options in one rugged mobile computer platform.
GET THROUGH TASKS FASTER
With more advanced CPU options, the performance-driven L10 rugged tablet platform is the right fit for your organisation, whatever your operating system. Both operating systems offer superior power for the blazing-fast application performance you need out in the field or in your facility. The L10axe Windows is equipped with the latest 11th generation Intel processors, while the L10 Android features the Qualcomm SD660 processors. The L10 is also available with a range of RAM and storage options for every business and agency application.
EXPAND YOUR USAGE CAPABILITIES
The L10 combines latest-generation NFC, Bluetooth, Wi-Fi, GPS and cellular technologies to provide uninterrupted connectivity. Keep your workforce connected wherever they are with the advanced wireless connectivity of the L10axe Windows with support for Wi-Fi 6E and optional 5G/4G and the L10 Android with 802.11ac Wi-Fi and optional 4G. Each L10 rugged tablet can be equipped with workflow-specific tools needed for nearly any application. This includes an optional true serial port, UHF RFID reader (AEI), a built-in barcode reader (XPad only) and more. Front-facing and 13 MP rear-facing high-resolution cameras enable capture of proof-of-condition/delivery, incident documentation, evidence and more.
USE IT VIRTUALLY ANYWHERE
The L10 platform defines the standard of rugged tablets. It is rated for a 6 ft. drop and the L10axe Windows is tested to the latest MIL-STD-810H, while the L10 Android is tested to MIL-STD-810G. It maintains its IP65 rating even with the port doors open. It can be used in cold storage, blowing dust, or driving rain. With sunlight viewable reinforced glass displays and an active digitiser option, your screen will be easy to read wherever you use it. Plus, the optional 5 pass-through antennas mean it's ideal for mounting in vehicles of all types.
LIGHTWEIGHT FOR EASY TRANSPORT
Whether you opt for Windows or Android, your XSlate L10 will deliver more than enough computing power. It is the smallest and lightest of the L10 family for workers who need the ultimate rugged traditional tablet. Roam far and wide connected to the information and people you need with advanced wireless connectivity. A hot swappable battery is standard, but this tablet will stay powered for over 24 hours with the extended-life, accessory battery.
Specifications
| Display | |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen type | Capacitive |
| Display diagonal | 25.6 cm (10.1") |
| Display glass type | Gorilla Glass |
| HD type | WUXGA |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Processor | |
| Conflict-Free processor | Yes |
| Processor manufacturer | Intel |
| Processor boost frequency | 2.5 GHz |
| Processor frequency | 1.1 GHz |
| Processor model | N4200 |
| Processor cores | 4 |
| Processor family | Intel® Pentium® |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | LPDDR4-SDRAM |
| Storage | |
| Storage media | SSD |
| Internal storage capacity | 256 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSDXC |
| SSD interface | Serial ATA |
| Graphics | |
| Graphics card family | Intel |
| Graphics card | HD Graphics 505 |
| Audio | |
| Number of built-in speakers | 1 |
| Audio system | High Definition (HD) |
| Number of microphones | 2 |
| Camera | |
| Rear camera type | Single camera |
| Rear camera resolution (numeric) | 13 MP |
| Front camera | Yes |
| Front camera resolution (numeric) | 2 MP |
| Auto focus | Yes |
| Front camera flash | Yes |
| Network | |
| Mobile network connection | Yes |
| Mobile network generation | 4G |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Dual SIM support | Yes |
| 4G standard | LTE |
| WWAN | Installed |
| Near Field Communication (NFC) | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| SIM card type | NanoSIM |
| Ethernet LAN | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Headphone out | Yes |
| Combo headphone/mic port | Yes |
| SmartCard slot | Yes |
| Headphone connectivity | 3.5 mm |
| USB 2.0 Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Navigation | |
| GLONASS | Yes |
| GPS (satellite) | Yes |
| Assisted GPS (A-GPS) | Yes |
| Design | |
| International Protection (IP) code | IP65 |
| Device type | Tablet PC |
| Protection features | Cold resistant, Dust resistant, Explosion proof, Heat resistant, Rain proof, Shock resistant, Temperature proof, Vibration proof, Waterproof |
| Form factor | Slate |
| Product colour | Black |
| Fingerprint reader | Yes |
| Harmonized System (HS) code | 84713000 |
| Rugged design | Yes |
| Performance | |
| Operating system installed | Windows 10 Pro |
| Position location | Yes |
| GLONASS | Yes |
| Operating system architecture | 64-bit |
| GPS (satellite) | Yes |
| Assisted GPS (A-GPS) | Yes |
| Trusted Platform Module (TPM) | Yes |
| Galileo | Yes |
| Night mode | Yes |
| BeiDou | Yes |
| Technical details | |
| Device type | Tablet PC |
| Intel Smart Connect Technology | No |
| WWAN | Installed |
| Near Field Communication (NFC) | Yes |
| Protection features | Cold resistant, Dust resistant, Explosion proof, Heat resistant, Rain proof, Shock resistant, Temperature proof, Vibration proof, Waterproof |
| Form factor | Slate |
| Product colour | Black |
| Processor manufacturer | Intel |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, EPEAT Silver |
| Compliance certificates | RoHS, WEEE |
| Security | |
| Trusted Platform Module (TPM) | Yes |
| SmartCard slot | Yes |
| Fingerprint reader | Yes |
| Software | |
| Platform | Windows |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Smart Response Technology version | 0.00 |
| Intel Smart Connect Technology version | 0.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Secure Boot Technology version | 1.00 |
| Intel Secure Boot | Yes |
| Intel Rapid Storage Technology | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel Enhanced Halt State | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Intel Smart Connect Technology | No |
| Battery | |
| Battery voltage | 20 V |
| Battery life (max) | 9.5 h |
| Battery recharge time | 2.75 h |
| Power | |
| AC adapter input voltage | 19 V |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, EPEAT Silver |
| Weight & dimensions | |
| Width | 195.2 mm |
| Depth | 22 mm |
| Height | 280.8 mm |
| Weight | 1.3 kg |
| Certificates | |
| Compliance certificates | RoHS, WEEE |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 3 - 95% |
| Storage relative humidity (H-H) | 3 - 95% |
| Operating altitude | 0 - 15240 m |
| Drop proof | 183 cm |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| Other features | |
| Processor manufacturer | Intel |
| SIM card type | NanoSIM |
| SSD interface | Serial ATA |
| Processor family | Intel® Pentium® |
| Harmonized System (HS) code | 84713000 |
