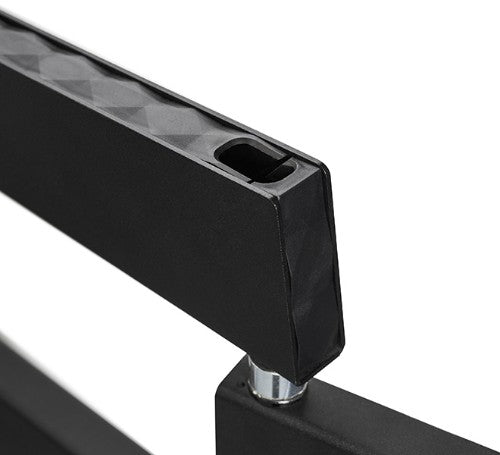

Ultra-slim Double Arm Flat Screen Wall Mount with Tilt & Swivel (VESA 600 x 400)
Key Features
- Easy tilt and swivel adjustments
- Slim-line design allows close to the wall installation when folded flat
- Features three swivel points: 180° at wall & interface & 360° at central pivot
- Tool-less tilt with option to lock in position

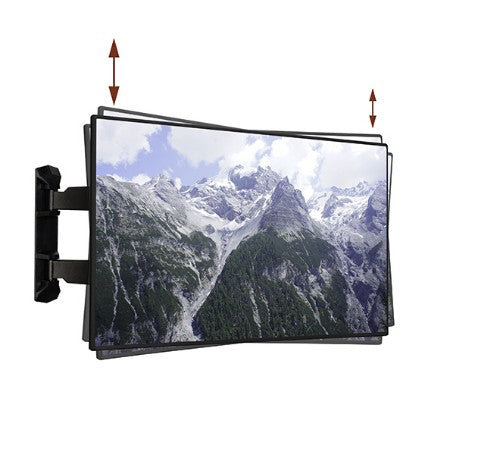

- Screen levelling of up to 3° in either direction
- Integrated cable management
- Attractive cover plates included to hide fixings

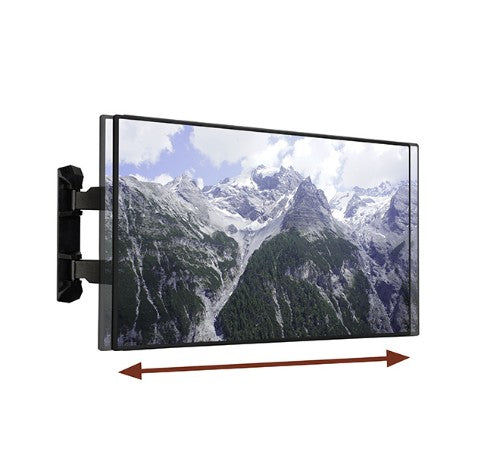

- Lateral adjustment of screen once mounted
- Keyhole mounting and drilling template for a quick and easy installation
- Safety screws help prevent unauthorised removal of screens
- Simple 'hook-on' installation with all mounting hardware included
Description

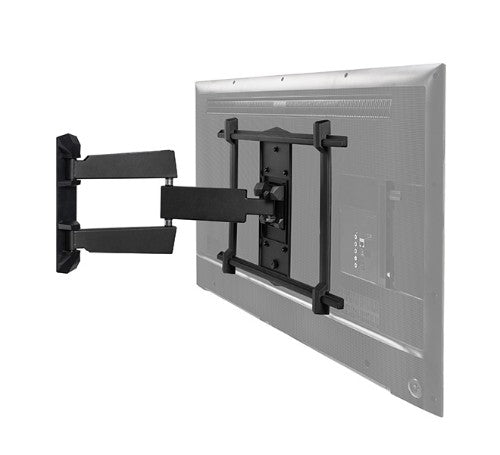

Designed to mount medium to large sized screens, this universal double arm wall mount features an easy to tilt interface and three swivel points, for a quick, smooth repositioning of the screen - whether folded flat to the wall (at a depth of just 50mm) or at maximum extension. Cover plates and integrated cable management help hide all fixings for a neat and tidy mounting solution, ideal for both commercial and home installations.
Specifications
| Mounting |
|---|
| Maximum weight capacity |
35 kg |
| Number of displays supported |
1 |
| Mounting type |
Wall |
| Maximum VESA mount |
600 x 400 mm |
| Maximum screen size |
165.1 cm (65") |
| Ergonomics |
|---|
| Swivel angle |
180° |
| Tilt angle range |
-3 - 14° |
| Number of pivot points |
3 |
| Distance to the wall (min) |
5 cm |
| Distance to the wall (max) |
57.4 cm |
| Cable management |
Yes |
| Tilt adjustment |
Yes |
| Swivelling |
Yes |
| Design |
|---|
| Product colour |
Black |
| Technical details |
|---|
| Number of pivot points |
3 |
| Number of displays supported |
1 |
| Mounting type |
Wall |
| Distance to the wall (min) |
5 cm |
| Distance to the wall (max) |
57.4 cm |
| Logistics data |
|---|
| Harmonized System (HS) code |
83024200 |
