Type A (US) to Angled C7 Power Cord Black 2m
Description

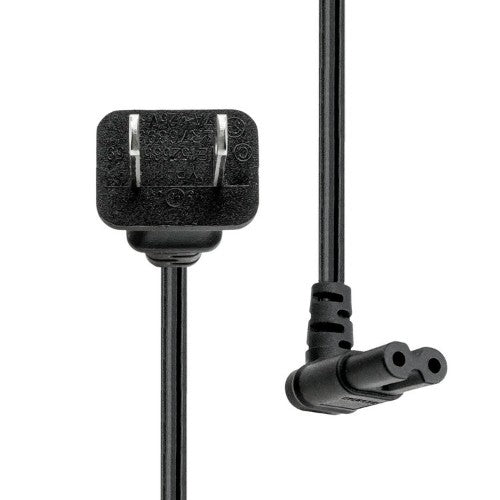

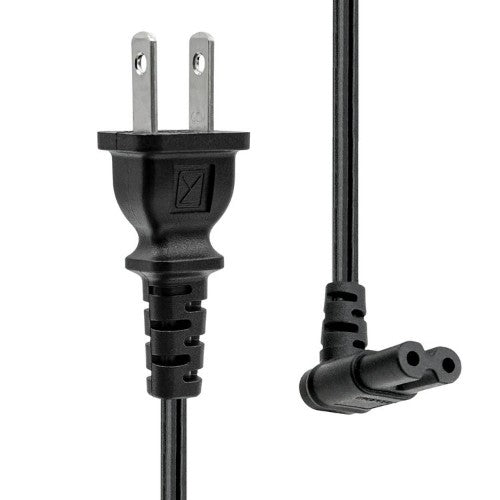

The PC-AC7A-002 power cord enables a connection between a male Type A connector, and a female C7 connector. The Type A connector has a straight form factor, while the C7 connector is angled at 90 degrees.
This 18AWG type SPT-2 copper power cable is wrapped in a PVC jacket and features 2 cores consisting of 47 conductors each. The cables core size is 0.824mm2 and its supported input voltage is 125V and input current is 15A.
Type A connectors are mainly used in North and Central America, China and Japan as well as some smaller Asian countries.
Specifications
| Ports & interfaces |
|---|
| Connector angle |
90° |
| Connector 2 |
C7 coupler |
| Connector 1 |
Power plug type A |
| Cable length |
2 m |
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Angled |
| Conductor material |
Copper |
| Number of conductors |
47 |
| Cable type |
SPT-2 |
| AWG wire size |
18 |
| Number of cable cores |
2 |
| Core size |
0.824 mm² |
| Certification |
UL, US California Proposition |
| Overload protection |
No |
| Jacket material |
Polyvinyl chloride (PVC) |
| Connector angle |
90° |
| Connector 2 |
C7 coupler |
| Connector 1 |
Power plug type A |
| Cable length |
2 m |
| Connector 1 lockable |
No |
| Connector 2 lockable |
No |
| Suitable for use in country/location |
United States |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Product colour |
Black |
| Plug and Play |
Yes |
| Power |
|---|
| Input voltage |
125 V |
| Input current |
15 A |
| Colour |
|---|
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-15 - 90 °C |
| Storage temperature (T-T) |
-20 - 105 °C |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Country of origin |
China |
| Overload protection |
No |
| Jacket material |
Polyvinyl chloride (PVC) |
| Sustainability compliance |
Yes |
| Harmonized System (HS) code |
84733080 |
| Other features |
|---|
| Country of origin |
China |
