Description

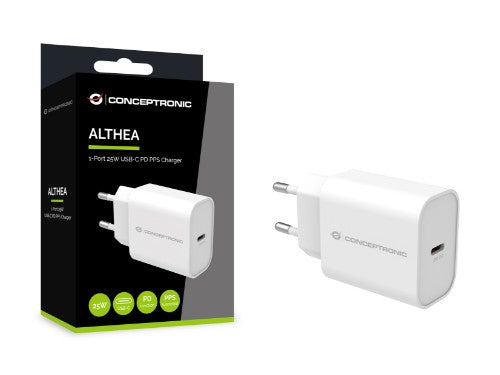

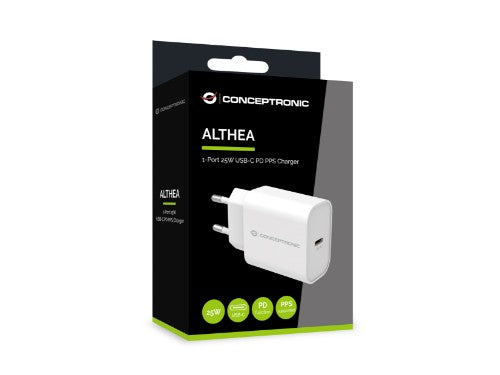

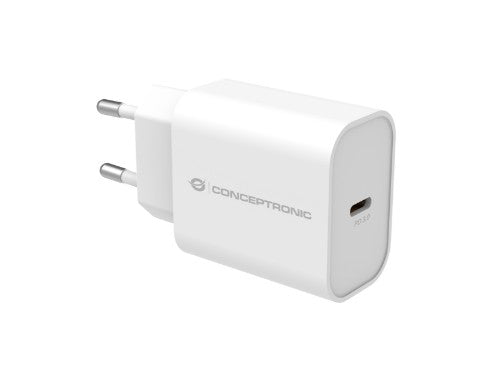

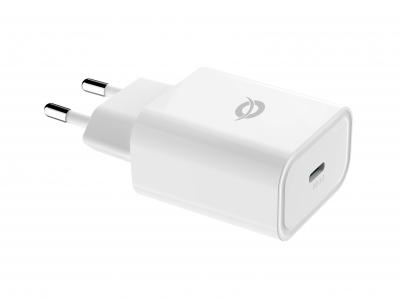

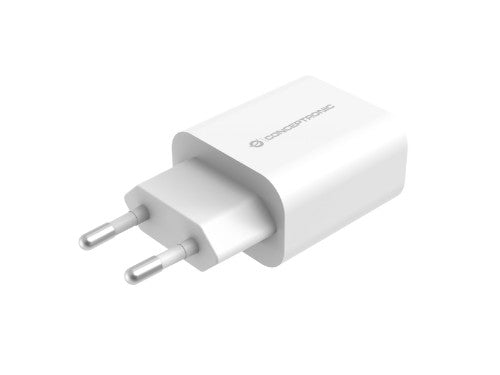

ALTHEA10W 1-Port 25W PPS USB-C PD Charger
Key Features
- Dedicated Port Connector: Equipped with a USB-C ports (with PD 3.0), providing up to 25W of total power and high-speed charging for a wide range of devices with varying power requirement.
- Wide Compatibility: Supports a range of output options from 3.3V to 12.0V across its ports, ensuring compatibility with devices from smartphones to laptops.
- Enhanced Safety Features: Built-in protections against overload, short circuiting, and overheating, ensuring the safety of both the charger and connected devices.
- Efficiency and Fast Charging Technology: Incorporates USB Power Delivery (PD) 3.0 for rapid charging, along with Programmable Power Supply (PPS) compliance to maximize charging efficiency and minimize heat generation.
Description
The ALTHEA10W USB-C charger offers efficient and fast charging, featuring a USB Type-C port with Power Delivery (PD) technology that automatically detects and charges devices such as Samsung Galaxy S21/S20/Note10/Note20, Nintendo Switch, iPad, iPhone etc., at up to 25W speed. The charger is protected against overload, short circuiting and overheating, and with a compact and light-weight design, it is a great travel device and daily companion.
Specifications
| Performance | |
|---|---|
| Country of origin | China |
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |
| Power protection features | Overheating, Overload, Short circuit |
| Fast charging | Yes |
| Fast charging technology | Power Delivery 3.0 |
| USB Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| Number of simultaneously connected devices (max) | 1 |
| Design | |
| Product colour | White |
| Power | |
| Input current | 0.6 A |
| Maximum power | 25 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Maximum output voltage | 3.3 V |
| Minimum output voltage | 12 V |
| Output current (5V) | 3 A |
| Output current (9V) | 2.77 A |
| Output current (12V) | 2.1 A |
| Power consumption (no load) | 0.1 W |
| Technical details | |
| Package type | Box |
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |
| Power protection features | Overheating, Overload, Short circuit |
| Country of origin | China |
| Manual | Yes |
| Sustainability compliance | Yes |
| Pallet net width | 120 cm |
| Pallet net height | 170 cm |
| Pallet net length | 80 cm |
| Harmonized System (HS) code | 8504408390 |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Width | 40 mm |
| Depth | 43 mm |
| Height | 25 mm |
| Weight | 54 g |
| Package width | 70 mm |
| Package depth | 70 mm |
| Package height | 30 mm |
| Package weight | 30 g |
| Packaging data | |
| Package type | Box |
| Package width | 70 mm |
| Package depth | 70 mm |
| Package height | 30 mm |
| Package weight | 30 g |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 80 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Packaging content | |
| Manual | Yes |
| Package type | Box |
| Colour | |
| Product colour | White |
| Logistics data | |
| Products per master (outer) case | 100 pc(s) |
| Master (outer) case width | 320 mm |
| Master (outer) case length | 220 mm |
| Master (outer) case height | 375 mm |
| Master (outer) case gross weight | 8.7 kg |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet gross height | 170 cm |
| Harmonized System (HS) code | 8504408390 |
| Other features | |
| Country of origin | China |
| Manual | Yes |
| Package type | Box |
