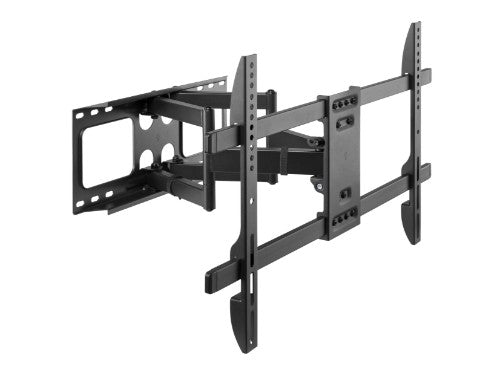

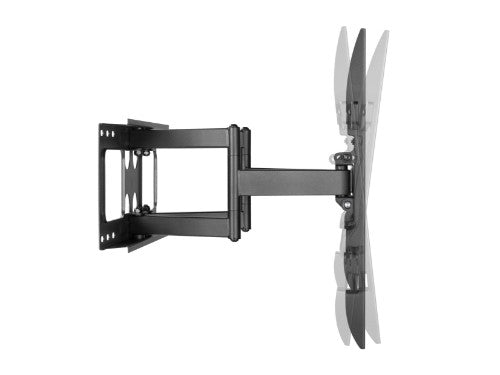

37"-80" Full Motion TV Wall Mount Bracket
Key Features
- "Max. Load Capacity: 60Kg
- Max. VESA: 600x400
- Swiveling arm offer maximum viewing flexibility
- Built-in level adjustment ensures perfect positioning
- Swivel and tilt wall mount
- VESA standards compliant

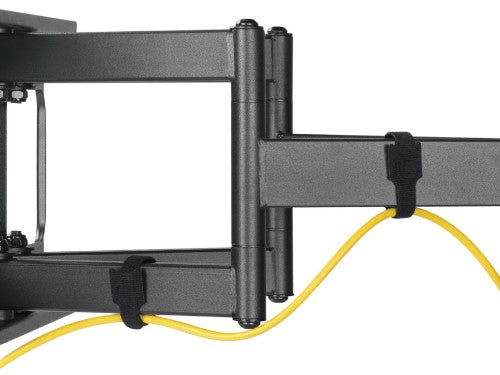

- Build-in cable management"
Description
The equip® 650335 TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/LED TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
94 cm (37") |
| Panel mounting interface |
200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400 |
| Number of displays supported |
1 |
| Minimum VESA mount |
200 x 200 mm |
| Maximum VESA mount |
600 x 400 mm |
| Maximum screen size |
2.03 m (80") |
| Maximum weight capacity |
60 kg |
| Ergonomics |
|---|
| Tilt angle range |
-15 - 5° |
| Pan range |
-60 - 60° |
| Distance to the wall (min) |
5.8 cm |
| Distance to the wall (max) |
40.2 cm |
| Tilt adjustment |
Yes |
| Technical details |
|---|
| Number of displays supported |
1 |
| Distance to the wall (min) |
5.8 cm |
| Distance to the wall (max) |
40.2 cm |
| Product colour |
Black |
| Mounting type |
Wall |
| Country of origin |
China |
| Design |
|---|
| Product colour |
Black |
| Anti-theft function |
No |
| Housing material |
Plastic, Stainless steel |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Manual |
Yes |
| Screw nuts included |
Yes |
| Weight & dimensions |
|---|
| Width |
710 mm |
| Height |
402 mm |
| Weight |
5.2 kg |
| Depth (max) |
43 cm |
| Packaging data |
|---|
| Package width |
436 mm |
| Package depth |
65 mm |
| Package height |
298 mm |
| Package type |
Box |
| Package weight |
5.66 kg |
| Quantity per pack |
1 pair(s) |
| Mounting kit |
Yes |
| Manual |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
| Other features |
|---|
| Mounting type |
Wall |
| Country of origin |
China |
