10/100, 2xSM SC-Duplex, max. 30km, 1310nm
Description

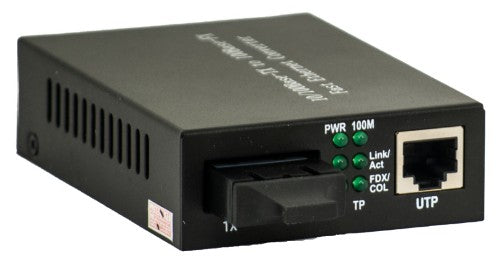

This simple media converter can easily be integrated into a network and extends Ethernet connections with fiber optics.
Specifications
| Network |
|---|
| Fiber optic connector |
SC |
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Maximum data transfer rate |
100 Mbit/s |
| Technical details |
|---|
| Wavelength |
1310 nm |
| Maximum transfer distance |
30000 m |
| Internal |
No |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
2 |
| Fiber optic connector |
SC |
| Performance |
|---|
| Wavelength |
1310 nm |
| Maximum transfer distance |
30000 m |
| Design |
|---|
| Product colour |
Black |
| Internal |
No |
| Power |
|---|
| Power consumption (max) |
2 W |
| Input voltage |
5 V |
| Colour |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
71 mm |
| Depth |
94 mm |
| Height |
26 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
