Description
ARM 32bit, IPQ-4018, 4 core, 716 MHz, IPQ-4018, 191 x 42 mm, RouterOS, 300 Mbit/s-867 Mbit/s, 802.11b/g/n /ac, AC1200

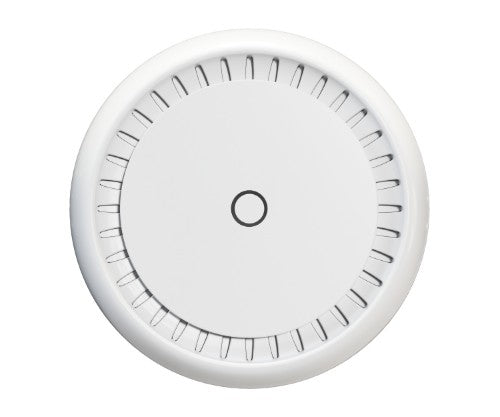

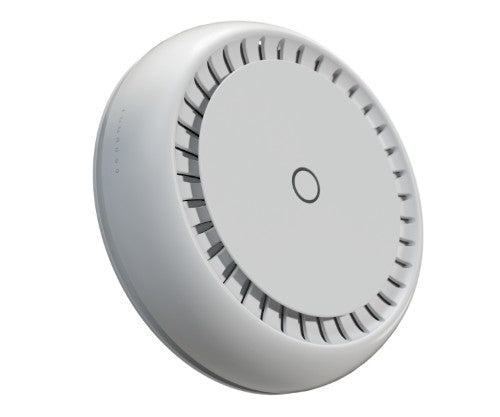

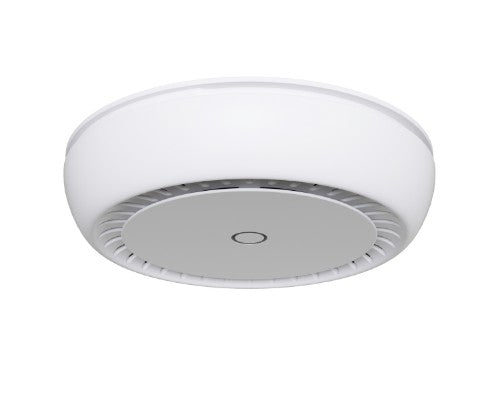

Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.
The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!
The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.

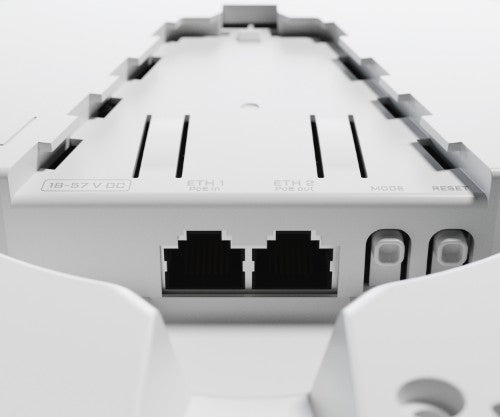

Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.
Description
The ceiling AP on steroids! Our bestseller cAP is back – juiced up and stronger than ever. Compared to the previous cAP models, the improved high-gain antenna increases the covered area by up to 100%!Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.
The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!
The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.
Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.
Specifications
| Data transmission | |
|---|---|
| Wi-Fi data rate (max) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 867 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi data rate (max) | 867 Mbit/s |
| Frequency band | 2 - 5.5 GHz |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 867 Mbit/s |
| Mean time between failures (MTBF) | 100000 h |
| Chipset | IPQ-4018 |
| Operating system installed | RouterOS |
| Internal memory | 16 MB |
| Flash memory | 128 MB |
| Built-in processor | Yes |
| Processor model | IPQ4018 |
| Processor frequency | 716 MHz |
| Security update term | IPsec hardware acceleration |
| Wireless LAN features | |
| Frequency band | 2 - 5.5 GHz |
| Wireless technology | Wi-Fi 5 |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Memory | |
| Internal memory | 16 MB |
| Flash memory | 128 MB |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi data rate (max) | 867 Mbit/s |
| Frequency band | 2 - 5.5 GHz |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Maximum data transfer rate | 867 Mbit/s |
| Bluetooth | No |
| Transmitting power (CE) | 26 dBm |
| Mean time between failures (MTBF) | 100000 h |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Operating system installed | RouterOS |
| Internal memory | 16 MB |
| Flash memory | 128 MB |
| Built-in processor | Yes |
| Processor model | IPQ4018 |
| Processor frequency | 716 MHz |
| Security | |
| Security features | IPsec hardware acceleration |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Power | |
| Power consumption (max) | 24 W |
| Power consumption (typical) | 11 W |
| Power over Ethernet (PoE) | Yes |
| Input current | 1.2 A |
| AC input voltage | 17 - 57 V |
| Power over Ethernet (PoE) type supported | Passive PoE |
| DC voltage range | 24 V |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| WPS push button | Yes |
| Antenna | |
| Antenna type | Internal |
| Technical details | |
| WPS push button | Yes |
| Security update term | IPsec hardware acceleration |
| Warranty period | 5 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions | |
| Width | 191 mm |
| Height | 42 mm |
| Other features | |
| Wireless technology | Wi-Fi 5 |
| WPS push button | Yes |
| Logistics data | |
| Warranty period | 5 year(s) |
