Description

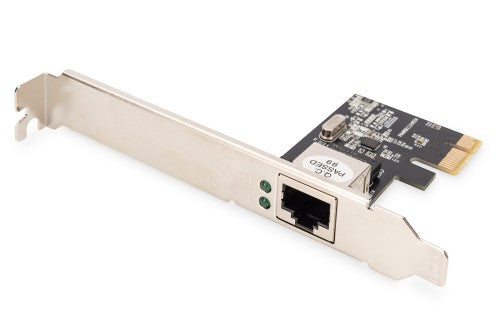

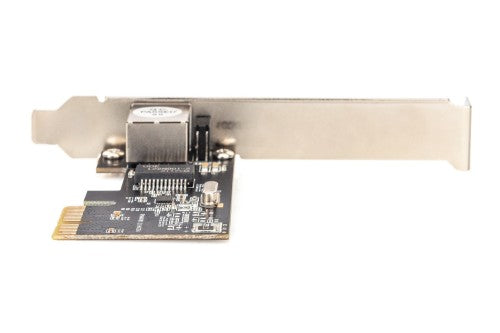

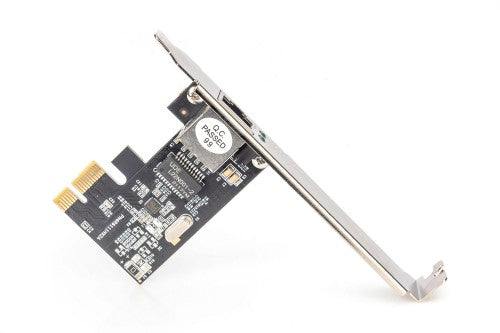

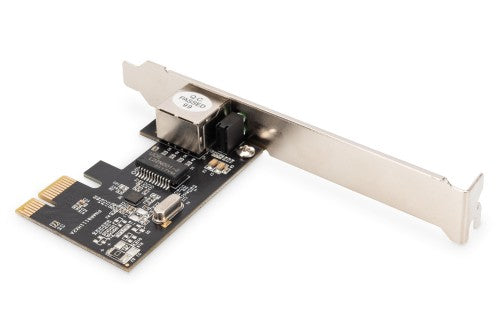

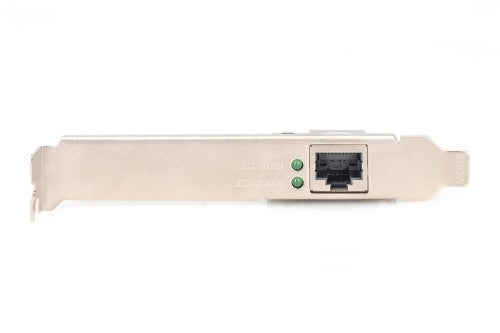

Gigabit Ethernet PCI Express Card 32-bit, low profile bracket,Realtek RTL8111H
- Adds an extra Gigabit port to a PC using PCI Express
- Gigabit data transfer rates of up to 1000 Mbps
- Space-saving, low-profile plate
Gigabit Ethernet PCI Express Card,32-bit, low profile bracket, Realtek chipset
Key Features
- Compliant with 10/100/1.000 IEEE 802.3 specification
- Supports 10/100/1.000 Mbps auto negotiation
- Connection: 1x RJ45 LAN
- Chipset: Realtek RTL8111H
- Supports Auto MDI/MDIX crossover at all speed
- Compliant with PCI Express base specification 1.1
- Single-lane (or X1) PCI Express throughput supports rates of 2.5Gbps

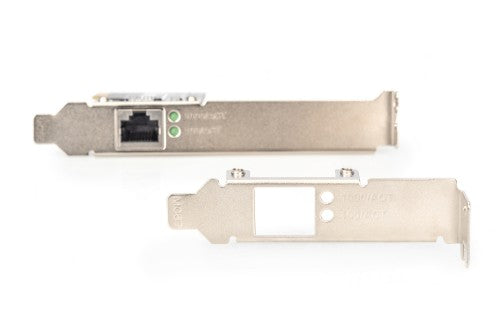

- Additional Low Profile Bracket to use the Card also in Thin Computers
- Operating temperature: 0 °C - 55 °C
- Operating humidity: 0% - 85% RH (non-condensing)
- Supports Windows 10, 8.1, 8, 7, Win-Server2008 / 2016, Linux, VMWare, FreeBSD
Description
Unprecedented speed is now available over your existing network cabling - Built to run the fastest network applications- Adds an extra Gigabit port to a PC using PCI Express
- Gigabit data transfer rates of up to 1000 Mbps
- Space-saving, low-profile plate
Gigabit Ethernet PCI Express Card,32-bit, low profile bracket, Realtek chipset
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 1.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI Card form factor | Half-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 1000 Mbit/s |
| Network | |
| Chipset | Realtek RTL8111H |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 802.3 |
| Auto MDIX IEEE | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Auto-negotiation | Yes |
| Technical details | |
| Product colour | Black |
| Auto MDIX IEEE | Yes |
| Plug and Play | Yes |
| PCI Card form factor | Half-height (low-profile) |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Design | |
| Product colour | Black |
| Chipset | Realtek RTL8111H |
| Plug and Play | Yes |
| Internal | Yes |
| PCI Card form factor | Half-height (low-profile) |
| LED indicators | Yes |
| Country of origin | China |
| Component for | PC |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Linux operating systems supported | Yes |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Server operating systems supported | Windows Server 2008 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 140 mm |
| Height | 35 mm |
| Package width | 200 mm |
| Package depth | 140 mm |
| Package height | 35 mm |
| Package weight | 150 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 140 mm |
| Package height | 35 mm |
| Package weight | 150 g |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Resource CD | Yes |
| Performance | |
| Server operating systems supported | Windows Server 2008 |
| Auto MDIX IEEE | Yes |
| Plug and Play | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Linux operating systems supported | Yes |
| Auto-negotiation | Yes |
| Other features | |
| Chipset | Realtek RTL8111H |
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
