2304 x 1728, 25/30 fps, 1/2.7, CMOS, PoE, IP42, IK08, 375 g
Key Features
- Great image quality in 4 MP; HDMI output for public viewing monitors; Support for analytics with deep learning; Varifocal lens with remote zoom and focus; WDR, Lightfinder and OptimizedIR
Description

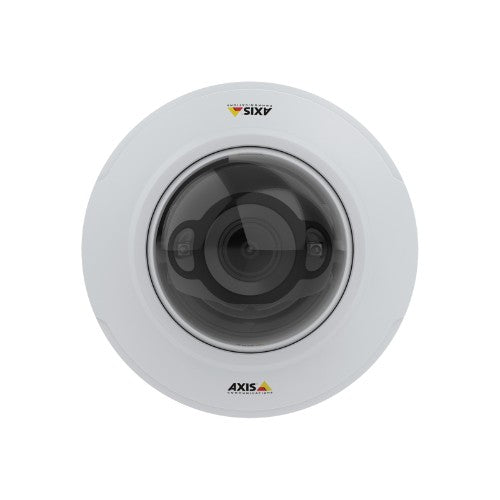

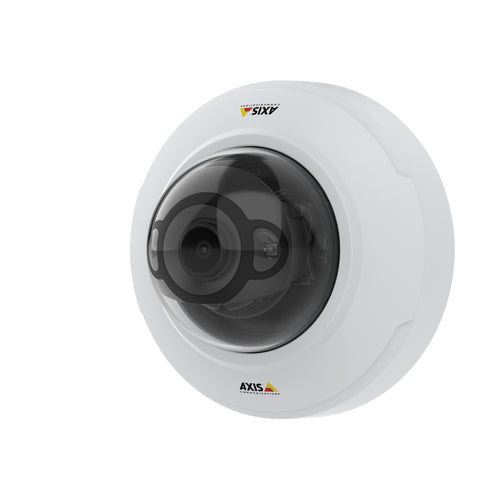

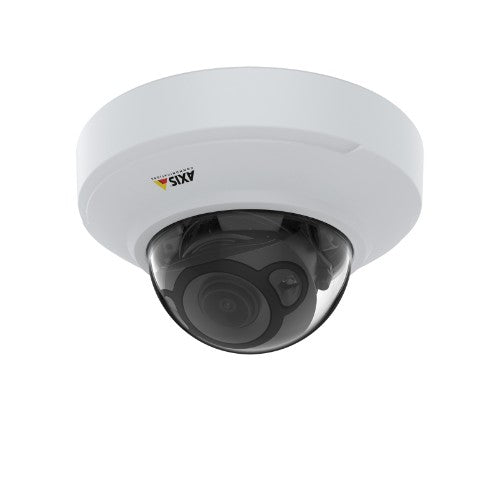

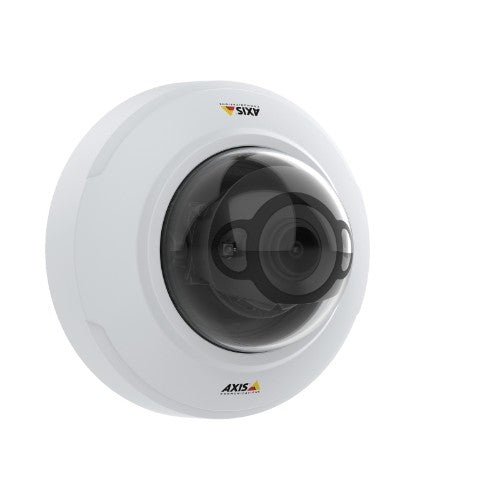

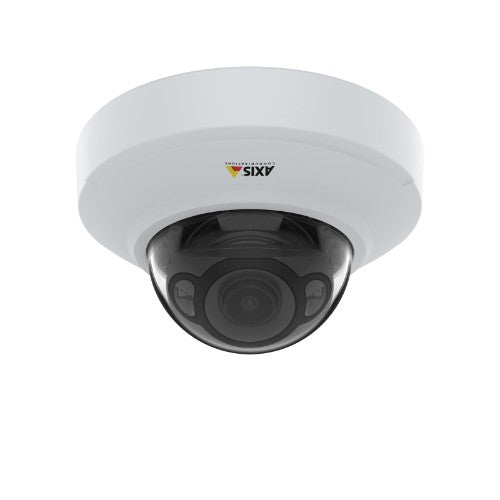

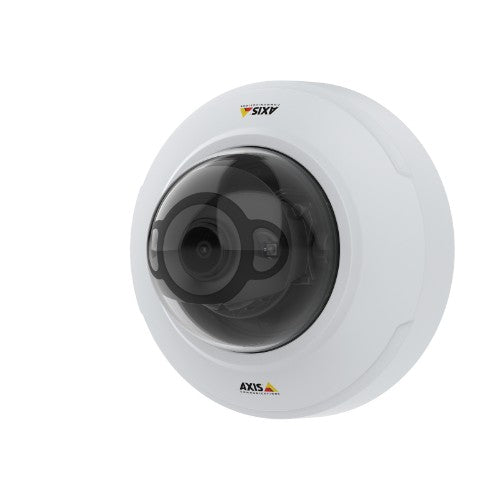

The compact and discreet AXIS M4216-LV delivers great images, day and night. With a deep learning processing unit (DLPU), it’s possible to take advantage of intelligent applications based on deep learning on the edge. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Designed to blend seamlessly into any environment, the camera can be repainted and offers a wide range of accessories for discreet monitoring. It features an HDMI port and offers the flexibility to add audio and I/O connectivity using accessories.
Specifications
| Performance |
|---|
| Infrared (IR) cut-off filter |
Yes |
| Number of languages |
11 |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| PTZ modes |
Digital PTZ |
| Type |
IP security camera |
| Connectivity technology |
Wired |
| Placement supported |
Indoor |
| Wide Dynamic Range (WDR) |
Yes |
| Day/night mode |
Yes |
| Design |
|---|
| IK code |
IK08 |
| Form factor |
Dome |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| International Protection (IP) code |
IP42 |
| Housing material |
Aluminium, Polycarbonate (PC) |
| Camera |
|---|
| Minimum illumination |
0.18 lx |
| Tilt angle range |
-40 - 65° |
| Pan range |
-180 - 180° |
| Camera shutter speed |
1/37500 - 1/5 s |
| Camera pan control |
Yes |
| Camera tilt control |
Yes |
| Progressive scan |
Yes |
| Image sensor |
|---|
| Sensor type |
CMOS |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.7 mm (1 / 2.7") |
| Number of sensors |
1 |
| Lens system |
|---|
| Number of lenses |
1 |
| Zoom capability |
Yes |
| Focal length range |
3 - 6 mm |
| Night vision |
|---|
| Night vision |
Yes |
| Night vision distance |
20 m |
| LED type |
IR |
| Infra-red wavelength |
855 nm |
| Video |
|---|
| Text caption overlay |
Yes |
| Privacy masking |
Yes |
| Flip & mirror |
Yes |
| Video compression formats |
H.264, H.265 |
| Maximum resolution |
2304 x 1728 pixels |
| Supported video modes |
720p, 1080p |
| Frame rate |
30 fps |
| Video streaming |
Yes |
| Total megapixels |
4 MP |
| Network |
|---|
| Bluetooth |
No |
| Networking standards |
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Quality of Service (QoS) support |
Yes |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Supported network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI, LLDP, CDP, MQTT v3.1.1 |
| Storage |
|---|
| Built-in HDD |
No |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD |
| Internal memory |
1024 MB |
| Flash memory |
512 MB |
| Built-in SSD |
No |
| Ports & interfaces |
|---|
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired |
| Security |
|---|
| Alert notification type |
E-mail, Text alert message |
| Video motion detection |
Yes |
| Security algorithms |
EAP-TLS |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Active tampering alarm |
Yes |
| Password protection |
Yes |
| Power |
|---|
| Power source type |
PoE |
| Power consumption (max) |
9.7 W |
| Power consumption (typical) |
5 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage relative humidity (H-H) |
5 - 95% |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Height |
71 mm |
| Diameter |
12.1 cm |
| Weight |
375 g |
| Packaging content |
|---|
| Number of cameras |
1 |
| Technical details |
|---|
| Doesn't contain |
BFR, PVC |
| Other features |
|---|
| Video compression formats |
H.264, H.265 |
