Description

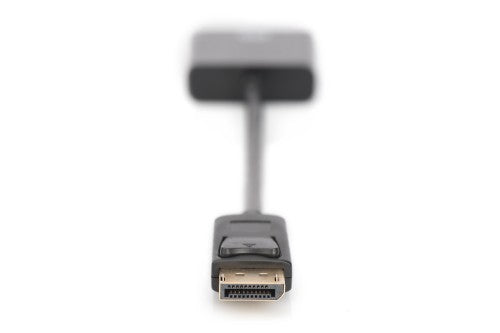

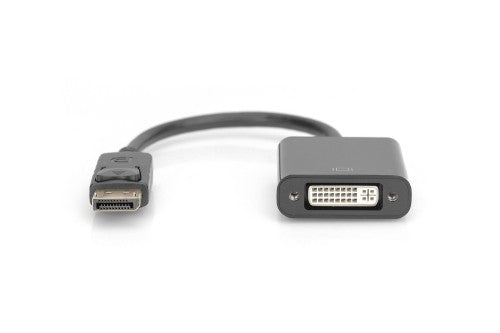

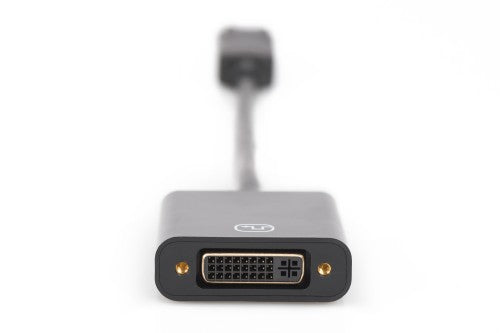

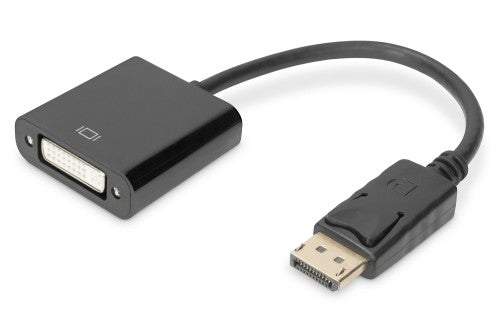

DisplayPort Adapter Cable, Type DP-DVI (24+5) M/F, 0.15m,w/interlock, DP 1.1a, bl
- Clear and sharp display - Full HD resolution
- Copper wire, foil and braid shielding for robustness and reliable connection
- Supports digital full HD and a higher transmission rate by Single Link.
- Plug and play, no additional driver needed
- Perfect for video streams, gaming or extending the workplace
- Ensures a lower burden of the interface.
This digital HD adapter / converter suits for example ideal to connect a notebook or computer with DP interface to a DVI monitor, beamer, LCD/TFT monitor with a DVI cable.
Key Features
- Support up to 1080p with 60Hz
- Supports digital full HD and a higher transmission rate by Single Link.
- Copper wire, foil and braid shielding for robustness and reliable connection
- Plug and play, no additional driver needed
- Attention! The DVI socket supports the connection of 24+5 plugs, but only transmits single link 18+1 DVI-D signals in Full HD resolution.
- Supports DisplayPort 1.1
- Bandwidth: 6.75 (2.25 per channel, 225 MHz)
- Color depth: 36bit (12bit per channel)
- Power supply via DisplayPort
- Input: DisplayPort male connector, 20 pin
- Output: DVI female connector, (24+5)
- Resolutions: 480i, 576i, 1080i, 480p, 576p, 720p, 1080p (50 / 60 Hz)
- Operating temperature: 0°C to +45°C
- Operating humidity: 10% to 80% RH (no condensation)
- Storage temperature: -10°C to +80°C
- Storage humidity: 5% to 90% RH (no condensation)
- Power consumption: 300 mW
- Entire cable length: 15 cm
- Color: black
Description
Perfect for video streams, gaming or extending the workplace- Clear and sharp display - Full HD resolution
- Copper wire, foil and braid shielding for robustness and reliable connection
- Supports digital full HD and a higher transmission rate by Single Link.
- Plug and play, no additional driver needed
- Perfect for video streams, gaming or extending the workplace
- Ensures a lower burden of the interface.
This digital HD adapter / converter suits for example ideal to connect a notebook or computer with DP interface to a DVI monitor, beamer, LCD/TFT monitor with a DVI cable.
Specifications
| Features | |
|---|---|
| Country of origin | China |
| DisplayPort version | 1.1a |
| Product colour | Black |
| Cable length | 0.15 m |
| Connector 1 | DisplayPort |
| Connector 2 | DVI-I |
| Connector contacts plating | Nickel |
| Cable material | Copper |
| AWG wire size | 28 |
| Ferrite bead | No |
| Connector gender | Male/Female |
| Technical details | |
| Country of origin | China |
| Harmonized System (HS) code | 84733080 |
| Weight & dimensions | |
| Package width | 150 mm |
| Package depth | 200 mm |
| Package weight | 48.5 g |
| Package volume | 486 cm³ |
| Packaging data | |
| Package width | 150 mm |
| Package depth | 200 mm |
| Package type | Polybag |
| Package weight | 48.5 g |
| Package volume | 486 cm³ |
| Packaging content | |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| UK Trade Tariff code | 85444290 |
