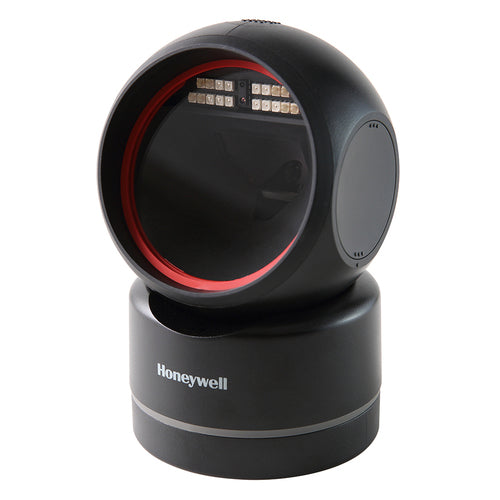

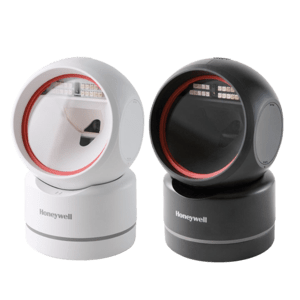

Honeywell Orbit HF680 Barcode module bar code reader 1D/2D Black

GEN7Hand-free scanner kit, 2D, Black, 2.7m USB host cable, EU plug ( 50130784-001), level VI 5.2V1A Wall, PS

Key Features

• FASTER SCANNING - With its Megapixel sensor and 1Ghz processor, the Orbit HF680’s fast scanning will speed customers through the checkout line – even when presented with digital or damaged barcodes
• SIMPLIFIED SCANNER INTEGRATION - Save time by rapidly configuring the Orbit HF680 with Honeywell’s EZConfig configuration utility. Simplify installations with OPOS/JPOS drivers that ensure scanner compatibility with various POSs
• MODERN STYLING - The Orbit HF680 provides retailers a scanner that can be displayed proudly at the checkout counter
• GREAT PRICE - Exceptional performance and design at an exceptional price

Description

Honeywell’s Orbit HF680 point-of-sale hands free/presentation scanner is the perfect blend of affordability, performance and style. With the Orbit HF680, retailers no longer have to compromise their budgets to get performance and a modern design. Get it all with Honeywell’s Orbit HF680. Customers will zip through the checkout line with the Orbit HF680’s lightning fast scanning of both 1D and 2D barcodes.

And the Orbit HF680 minimizes checkout delays by quickly scanning traditionally difficult to read digital barcodes and even damaged barcodes. The Orbit HF680 scanning is not only fast, it’s also unobtrusive.

The low profile, recessed LED lights in the scan window light up barcodes without irritating your customers. And when the scanner is not in use, its lighting will automatically turn off.

Specifications

Scanning
Type	Barcode module bar code reader
Linear (1D) barcodes supported	Code 39, UPC-A
2D (matrix & stacked) barcodes supported	Data Matrix, QR Code
Motion tolerance (cm/s)	250
Scanner type	1D/2D
Pitch reading angle	-60 - 60°
Light levels (direct sunlight)	0 - 100000 lx
Optical sensor resolution (W x H)	1280 x 800 pixels
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	USB
Performance
Product colour	Black
Print contrast	20%
Light levels (direct sunlight)	0 - 100000 lx
Design
Type	Barcode module bar code reader
Product colour	Black
Power
Power consumption	400 mA
Power source type	DC
Power consumption (typical)	2 W
Power consumption (standby)	0.85 W
AC adapter output voltage	5 V
Weight & dimensions
Width	88 mm
Depth	85 mm
Height	139 mm
Weight	278 g
Technical details
Type	Barcode module bar code reader
Product colour	Black
Packaging data
Cables included	USB
External power adapter	Yes
Operational conditions
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Light levels (direct sunlight)	0 - 100000 lx
Packaging content
Cables included	USB
External power adapter	Yes
