Description
Flex Tabletop Small Room Video Conference System for Microsoft Teams Rooms, International
Native Microsoft Teams Rooms Experience
The UC-MM30-T-I system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.
Intuitive User Interface with Impressive Audio

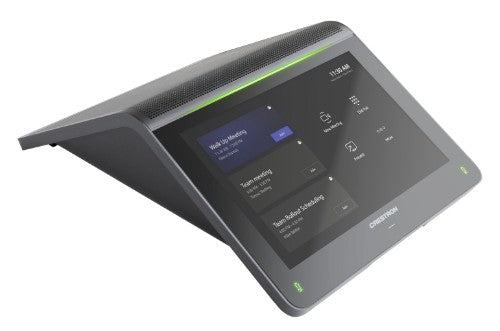

With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (UC-2-T-V-I) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices.
Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the Flex tabletop conference device to the UC Bracket Assembly.
High‑Definition Video Conferencing

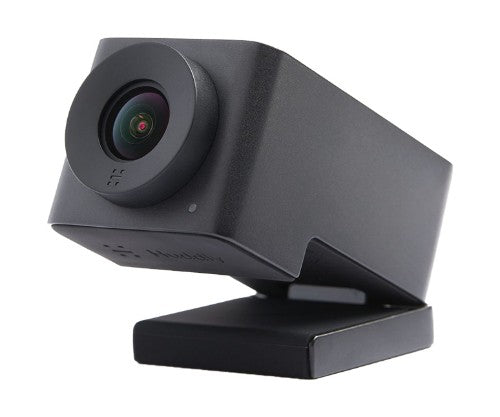

The included collaboration camera (CCS‑CAM‑USB‑F‑400) features an ultra wide-angle 150° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 12 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts.
Crestron Control System Integration
The UC-MM30-T-I can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.
Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft to integrate seamlessly into any Microsoft Teams Rooms software. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows software update.
Key Features
- Tabletop video conferencing solution for Microsoft Teams® Rooms environment
- Native Microsoft Teams Rooms touch screen UI provides a consistent, simple user experience with one‑touch meeting joins

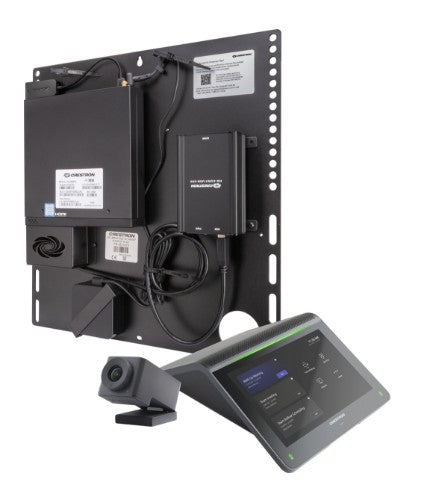

- Complete kit contains a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, PoE injector, and cables — just add a display and mount
- Easy to specify and install — no custom design, programming, or software installation required
- Optional integration with Crestron® control systems
- Direct connection option between UC Engine and Crestron Flex tabletop conference device for simple installation and configuration
- Network management and provisioning, system alerts, and the pairing of the Crestron Flex tabletop conference device to the system’s UC Engine through the XiO Cloud® service
- Premium‑level support with Crestron Flex Care (optional)
- Enterprise-grade security - connects and communicates securely over any enterprise or SMB network
- Supports single or dual video displays (not included)
Description
The UC-MM30-T-I Crestron Flex tabletop conferencing system provides a small room video conference solution for use with Microsoft Teams Rooms software. It supports single or dual video displays (not included) and features a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, PoE Injector, and cables.Native Microsoft Teams Rooms Experience
The UC-MM30-T-I system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.
Intuitive User Interface with Impressive Audio
With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (UC-2-T-V-I) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices.
Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the Flex tabletop conference device to the UC Bracket Assembly.
High‑Definition Video Conferencing
The included collaboration camera (CCS‑CAM‑USB‑F‑400) features an ultra wide-angle 150° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 12 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts.
Crestron Control System Integration
The UC-MM30-T-I can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.
Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft to integrate seamlessly into any Microsoft Teams Rooms software. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows software update.
Specifications
| Performance | |
|---|---|
| Product type | Group video conferencing system |
| Product colour | Black |
| Number of cameras | 1 |
| Technical details | |
| Product type | Group video conferencing system |
| Product colour | Black |
| Number of cameras | 1 |
| Harmonized System (HS) code | 85176990 |
| Video | |
| HD type | Full HD |
| Megapixel (approx.) | 12 MP |
| Maximum frame rate | 30 fps |
| Audio | |
| Frequency range | 100 - 20000 Hz |
| RMS rated power | 7 W |
| Built-in speaker(s) | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Supported network protocols | DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP, SRTP |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Camera | |
| Sensor type | CMOS |
| Aperture range (F-F) | 2.8 - 2.8 |
| Image sensor size | 1/2.3" |
| Horizontal field of view | 120° |
| Effective sensor resolution | 12 MP |
| Megapixel (approx.) | 12 MP |
| Vertical field of view | 90° |
| Diagonal field of view | 150° |
| Display | |
| Display | TFT |
| Display diagonal | 17.8 cm (7") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Microphone | |
| Microphone direction type | Omnidirectional |
| Number of microphones | 4 |
| Features | |
| Telepresence | No |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Computer system | |
| Computer system type | Mini PC |
| Operating system installed | Windows 10 IoT |
| Computer case | |
| Computer system type | Mini PC |
| Operating system installed | Windows 10 IoT |
| Weight & dimensions | |
| Camera dimensions (WxDxH) | 41 x 72 x 36 mm |
| Camera weight | 120 g |
| Packaging content | |
| Cables included | HDMI, LAN (RJ-45), USB |
