Description

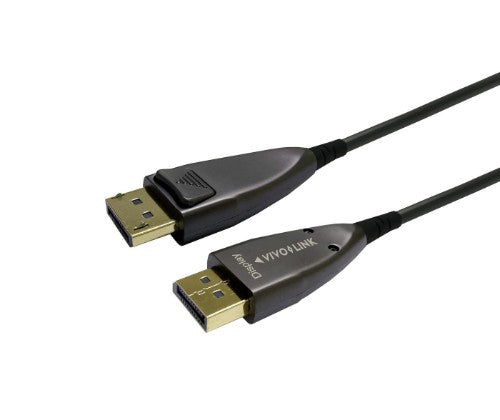

DisplayPort 1.4, 8K@60Hz, Optic Fibre, 10m
Vivolink’s Optical DisplayPort 1.4 for ultra high resolution supporting
8K@60Hz resolution. It’s enhanced flexibility ensures a small bending radius.
Vivolink Optical DisplayPort cable are perfect match for ultra high resolution projectors on long distance applications.
Key Features
- Ultra high resolution of 8K@60Hz/4K/120Hz
- Cable is built with military standard optical fiber
- Optic fiber is covered with copper wires
- Kevlar filling inside makes the cable extremely strong and robust
- Connector pins are gold bladed for a reliable and perfect contact
- The optical fiber converter is extremely high quality chip set
- Cable is ultra-flexible
- Minimum bend radius: 20mm
- Unlimited number of bends with bend radius down to 20mm
- Working temperature: -20 degree to + 60 degree
- Mechanical lock incorporated in the connector prevents connection loss\
- Power consumption: 0.2-0.35W
- Voltage: 5V
- Electric current: 120ma
Description
Optical cable 8K@60Hz Pro Displayport cable 1.4, ultra flexible slim size 4mmVivolink’s Optical DisplayPort 1.4 for ultra high resolution supporting
8K@60Hz resolution. It’s enhanced flexibility ensures a small bending radius.
Vivolink Optical DisplayPort cable are perfect match for ultra high resolution projectors on long distance applications.
Specifications
| Features | |
|---|---|
| Latching connectors | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| Product colour | Black |
| Number of shielding layers | 3 |
| Cable length | 10 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| DisplayPort version | 1.4 |
| Data transfer rate | 32.4 Gbit/s |
| 3D | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 7680 x 4320 |
| Supported video modes | 2160p |
| HDCP | Yes |
| Plug and Play | Yes |
| Maximum refresh rate | 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Packaging data | |
| Cable diameter | 4 mm |
| Package weight | 274 g |
| Weight | 270 g |
| Package width | 208 mm |
| Package depth | 187 mm |
| Package height | 53 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 4 mm |
| Package weight | 274 g |
| Weight | 270 g |
| Package width | 208 mm |
| Package depth | 187 mm |
| Package height | 53 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
