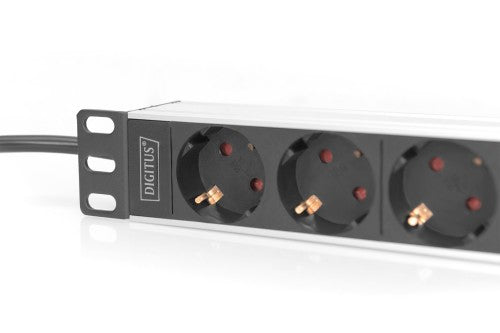

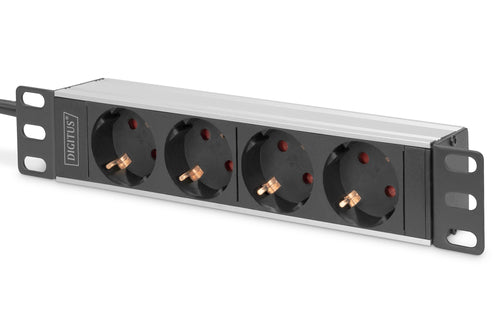

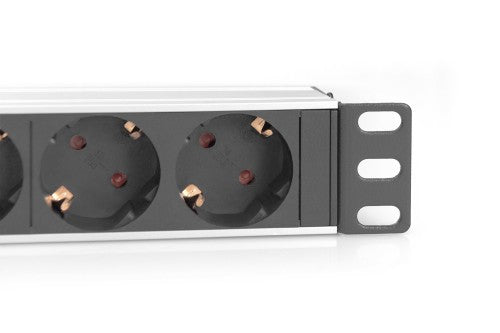

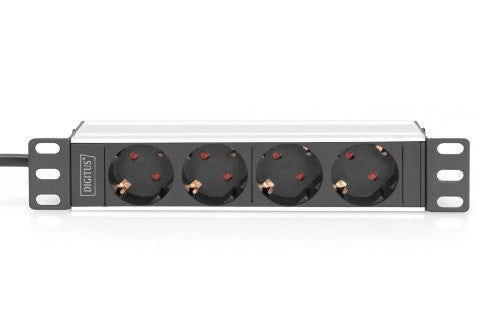

Digitus 10” Socket Strip with Aluminum Profile, 4-way safety sockets

1U Aluminum PDU, 254 mm (10") rack mount, 4x safety outlet, 16A, 4000W, 250VAC 50/60Hz

Key Features

• Horizontal 10" installation in the rack
• Housing: Aluminum profile
• Plastic components made of ABS UL-94V-0

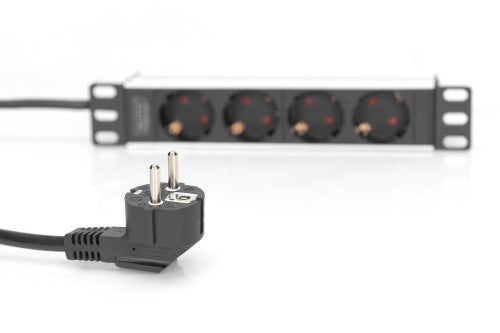

• Input: safety plug CEE 7/7, 230 Vac / 16 A
• Output: appliance sockets 4 x socket outlet with earthing contact DIN 49440, max. 16 A per output
• Supply cable: cable cross-section: 1.5 mm² , length: 2 m
• Dimensions: 254 mm (10") x 45 (1U) x 45 mm (HxWxD)

Description

Safe and professional power supply in the 10” range

- Perfect power distribution for your network and IT rack
- Compact design, 10" 1U housing
- Outlets are rotated 45°, this provides optimal space management and easy access

The DIGITUS® power strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, network technology, laboratories as well as the home. The power strip can be mounted in the 10" area in the cabinet space-saving 1U. Depending on the cabinet type, it is possible to mount the power strip with the outlets facing right or left.

Specifications

Design
On/off switch	No
PDU types	Basic
Product colour	Black
Rack capacity	0U/1U
Housing material	Aluminium, Plastic
Ports & interfaces
AC outlets quantity	4 AC outlet(s)
AC outlet types	Type F
Power plug	Type F
Features
Cable length	2 m
Ergonomics
Cable length	2 m
Power
Maximum power	4000 W
Nominal input voltage	250 V
Nominal output voltage	230 V
Maximum current	16 A
Load capacity	3600 VA
AC input frequency	50 - 60 Hz
Number of phases	1
Weight & dimensions
Weight	800 g
Size (imperial)	25.4 cm (10")
Width	45 mm
Depth	254 mm
Height	45 mm
Package width	510 mm
Package depth	97 mm
Package volume	2869.26 cm³
Package weight	700 g
Packaging data
Package width	510 mm
Package depth	97 mm
Package volume	2869.26 cm³
Package weight	700 g
Logistics data
Country of origin	China
UK Trade Tariff code	85444290
