Intellinet Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails Slim, Space-saving Enclosure with Only 170 mm (6.7 in.) Depth, Ideal for AV, Multimedia and Surveillance Applications, Assembled, Black RAL 7021

IntellinetSKU: 713689
Price:
€148,60

Description

Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails Slim, Space-saving Enclosure with Only 170 mm (6.7 in.) Depth, Ideal for AV, Multimedia and Surveillance Applications, Assembled, Black RAL 7021

Key Features

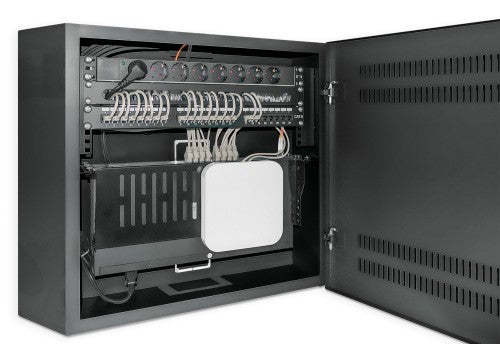

  • Slim, space-saving design for organized, secure housing of network, multimedia, surveillance, audio/video and smart home equipment
  • Horizontal 4U 19" rackmount option for PDUs, patch panels and other equipment with a depth up to 170 mm (6.7 in.)
  • Vertical 2U 19" rackmount option for network switches and other equipment with a depth up to 280 mm (11 in.)
  • Maximum load capacity of 60 kg (132 lbs.)
  • Extends only 170 mm (6.7 in.) from the wall
  • Sturdy, secure steel housing with antistatic powder coating
  • Three-point door lock with two included keys
  • Ventilation slots for maximum airflow to keep your equipment cool and prevent overheating
  • IP20-rated protection

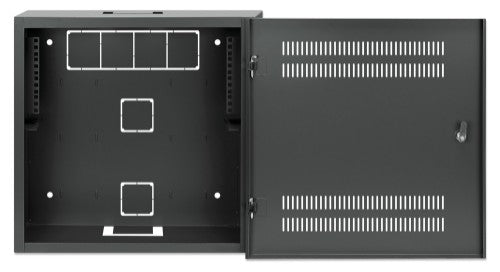

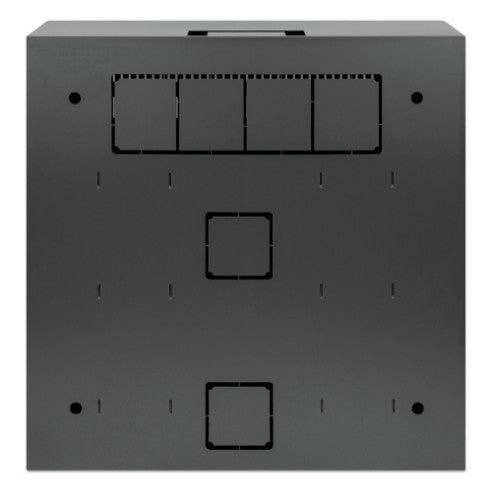

  • Pre-punched cable entry openings on top, rear and bottom
  • Ships fully assembled for quick installation

Description

Slim, space-saving wall-mount network enclosure rack for AV multimedia equipment and more
The Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails from Intellinet Network Solutions is a slim rack enclosure for residential and SOHO environments. It organizes and secures network equipment from multimedia, surveillance, audio/video and home automation while saving valuable space with its hybrid of two mounting options.

Thanks to its compact depth, it only extends 170 mm (6.7 in.) from the wall, but its vertical mounting option means you can install even bulky equipment like network switches with a depth up to 280 mm (11 in.). The sturdy IP20-rated steel housing with antistatic powder coating can be locked with a secure three-point door lock to prevent damage, tampering or theft. It carries a load capacity up to 60 kg (132 lbs.), and ventilation slots ensure maximum airflow to keep your equipment cool. Your structured cabling can enter through pre-punched holes on the top, rear or bottom. Its fully assembled shipping condition saves you the trouble of putting it together.

Specifications

Packaging content
Nuts included Yes
Number of nuts 12
Screws included Yes
Number of screws 12
Features
Key lock Yes
Rack capacity 2U/4U
International Protection (IP) code IP20
Type Wall mounted rack
Maximum weight capacity 60 kg
Material Steel
Product colour Black
Certification RoHS IP20 Protection Rating ANSI/EIA 310-E IEC 60297-2
Weight & dimensions
Width 550 mm
Depth 540 mm
Height 170 mm
Weight 8.5 kg
Maximum weight capacity 60 kg
Packaging data
Nuts included Yes
Number of nuts 12
Screws included Yes
Number of screws 12
Technical details
Type Wall mounted rack
Rack capacity 2U/4U
International Protection (IP) code IP20
Colour
Product colour Black
Certificates
Certification RoHS IP20 Protection Rating ANSI/EIA 310-E IEC 60297-2
Material
Material Steel
