Description

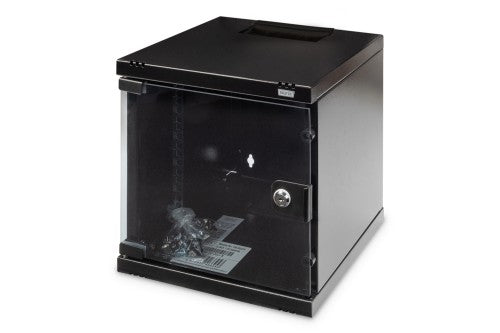

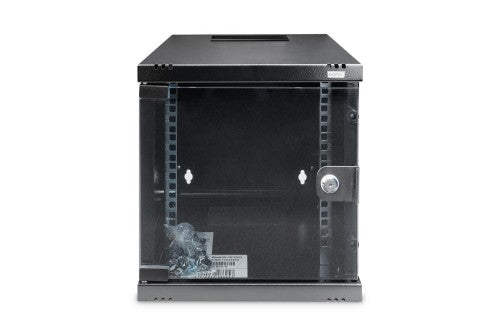

254 mm (10") 6U wall mounting cabinet 330x312x300 mm, color black (RAL 9005)
- Compact housing for installations where space is limited
- Ready for immediate use: Delivery is assembled
- Flexible cable routing options thanks to protected openings in the roof and floor

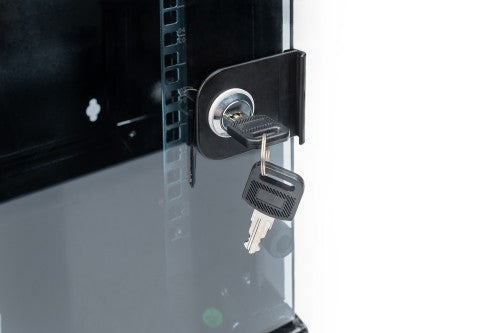

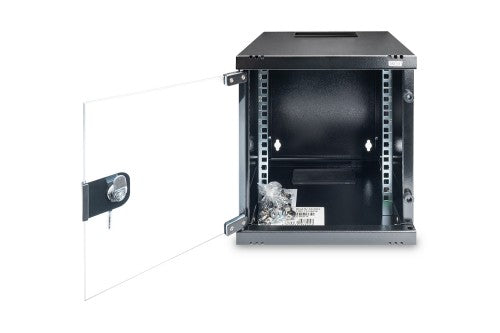

- Lockable safety glass door with 200° door opening angle
- Depth-adjustable 254 mm (10") profile rails
- Load capacity for the installation of components: 30 kg
Whether in the home, office or in sub-distribution boards where space is limited: With the compact 254 mm (10") solutions, you can install your network wherever you want. Available in three height units (6U, 9U, 12U), the wall-mounted enclosures are equipped with a full glass door and a cable entry with brushes in the top and bottom. A pair of galvanized 254 mm (10") profile rails labelled with legible height units are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
Key Features
- Protection class IP20
- Lockable safety glass door
- 200° door opening angle
- 1-point locking on the front door

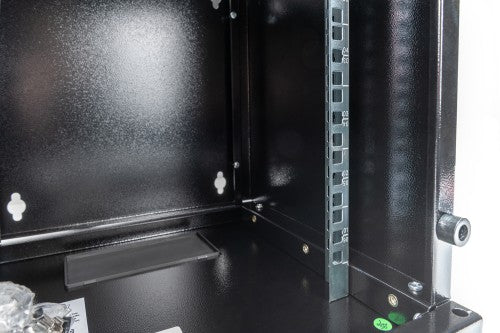

- 254 mm (10") profile rails mounted at the front inside the enclosure, galvanized
- 254 mm (10") profile rails are adjustable in depth
- 1.1 - 1.5 thick sheet steel with a high load-bearing capacity, powder-coated
- Cable entry with brush strip in the roof and with plastic cover in the floor
- Ventilation slots for active and passive ventilation
- Installation depth for components max.: 240 mm
- Including earthing bolt on the housing base
Description
DIGITUS® wall-mounted enclosures are manufactured, designed and developed to meet the high demands of IT infrastructure.- Compact housing for installations where space is limited
- Ready for immediate use: Delivery is assembled
- Flexible cable routing options thanks to protected openings in the roof and floor
- Lockable safety glass door with 200° door opening angle
- Depth-adjustable 254 mm (10") profile rails
- Load capacity for the installation of components: 30 kg
Whether in the home, office or in sub-distribution boards where space is limited: With the compact 254 mm (10") solutions, you can install your network wherever you want. Available in three height units (6U, 9U, 12U), the wall-mounted enclosures are equipped with a full glass door and a cable entry with brushes in the top and bottom. A pair of galvanized 254 mm (10") profile rails labelled with legible height units are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
Specifications
| Weight & dimensions | |
|---|---|
| Package volume | 51948 cm³ |
| Package depth | 360 mm |
| Package width | 370 mm |
| Package height | 400 mm |
| Package weight | 8 kg |
| Width | 312 mm |
| Depth | 300 mm |
| Height | 330 mm |
| Weight | 5.33 kg |
| Maximum weight capacity | 30 kg |
| Features | |
| Key lock | Yes |
| Rack capacity | 6U |
| International Protection (IP) code | IP20 |
| Front door construction | Glass |
| Front door key lock | Yes |
| Type | Wall mounted rack |
| Side panels included | Yes |
| Maximum weight capacity | 30 kg |
| Material | Steel |
| Product colour | Black |
| Packaging data | |
| Package volume | 51948 cm³ |
| Package depth | 360 mm |
| Package width | 370 mm |
| Package height | 400 mm |
| Package weight | 8 kg |
| Technical details | |
| Package width | 370 mm |
| Package height | 400 mm |
| Type | Wall mounted rack |
| Side panels included | Yes |
| Harmonized System (HS) code | 85381000 |
| Rack capacity | 6U |
| International Protection (IP) code | IP20 |
| Colour | |
| Product colour | Black |
| Packaging content | |
| Side panels included | Yes |
| Material | |
| Material | Steel |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85381000 |
| UK Trade Tariff code | 94032080 |
