Description

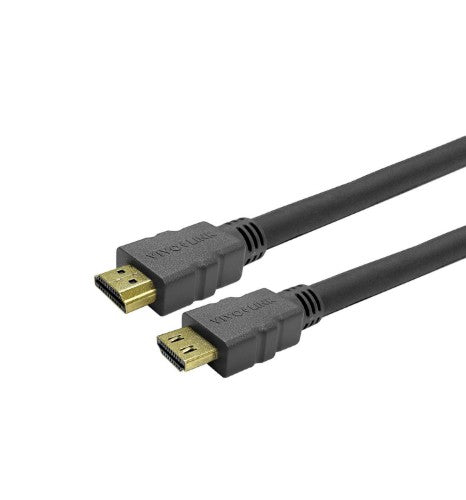

Pro HDMI Cable 2m w/lock
Supports Resolutions up to 4K@60Hz with HDCP 2.2, CEC and ARC
Ultra flexible.
Key Features
- All HDMI resolutions up to 4K (4096x2160p @60Hz), including 3D video
- Support sample rate 4:4:4
- High Dynamic Range (HDR)
- Transfer speed 18 Gbit/s
- HDCP 2.2
- Supports Deep Color, up to 16-bits per channel, including x.v.Color standard
- Supports the 21:9 cinema aspect ratio
- Supports SA-CD, DVD-Audio, DTS-HD Master Audio, Dolby TrueHD, and other highde inition audio standards
- Audio Return Channel
- Auto Lip Sync
- Supports up to 32 audio channels and a 1536 kHz audio sampling rate
- Dynamic sound synchronization
- Supports extended CEC (Consumer Electronics Control) commands and functions
- the HDMI Ethernet Channel, and the Audio Return Channel features
- Fully assembled with 19 pins connected
- High quality HDMI A connector, 15um gold min. in contact area for high reliability
- and professional use
- 99,9% pure copper wires for lossless picture transmission
- Triple shielded cable and extra shielding in the connector
- High Flexibility ensuring small bending radius
- Lock Spikes secures high pull force
Description
High Performance and High Speed HDMI 2.0 18Gbit Cable with Ethernet.Supports Resolutions up to 4K@60Hz with HDCP 2.2, CEC and ARC
Ultra flexible.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Dolby technologies | DTS-HD Master Audio |
| Colour depth | 16 bit |
| Cable shielding | Aluminum mylar foil |
| Cable colour | Black |
| HDMI Ethernet channel | Yes |
| Audio Return Channel (ARC) | Yes |
| Product colour | Black |
| Cable length | 2 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Copper |
| AWG wire size | 26 |
| HDMI version | 2.0 |
| Data transfer rate | 18 Gbit/s |
| 3D | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| HDCP | Yes |
| Plug and Play | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Pull-resistant connector(s) | No |
| Pull-off force | 1 kg |
| Quantity per pack | 1 pc(s) |
| Cable jacket material | Polyvinyl chloride (PVC) |
| HDCP version | 2.2 |
| RGB support | 4:4:4 |
| Cable type | Round cable |
| Shield material | Aluminium |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Package weight | 390 g |
| Weight | 290 g |
| Package width | 187 mm |
| Package depth | 163 mm |
| Package height | 64 mm |
| Cable diameter | 8 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Cable colour | Black |
| Compliance certificates | RoHS |
| Other features | |
| Cable colour | Black |
| Quantity per box | 20 pc(s) |
| Logistics data | |
| Master (outer) case gross weight | 1 kg |
| Master (outer) case width | 38.5 mm |
| Master (outer) case length | 100 mm |
| Master (outer) case height | 26 mm |
| Harmonized System (HS) code | 84733080 |
