Description
IEEE802.11 ax/ac/n/g/b/a, MU-MIMO, 2.4/5 GHz, 1G RJ-45, PoE, 308x136.4x49.6 mm
Thinking of upgrading to the 11ax (WiFi 6) technology for your outdoor wireless network? Zyxel NWA55AXE is your answer!

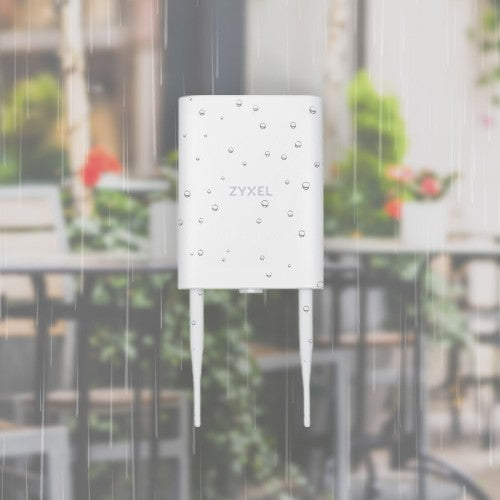

Designed for harsh outdoor environments, the IP55-rated, weatherproof NWA55AXE is the best WiFi 6 outdoor access point to extend your wireless network outside.
Smart Mesh for Extended Coverage
Zyxel Smart Mesh Technology not only forms dynamic wireless links between APs for extended range, but can also bridge the wireless connectivity from one building to another. It is no doubt that NWA55AXE is an ideal choice for a simple expansion of your outdoor wireless network or forming an interconnected wireless network through outdoor inter-building links.
Simple Installation. Easy Configuration.
Perfect for small business owners or SOHO users, the NWA55AXE supports both local GUI management and Nebula Cloud networking management. The simple setup in Nebula APP or web allows you to quickly configure the AP with only a few clicks, making it super easy to set up guest and employee network on your own and start enjoying the ultra-fast WiFi 6 speeds in no time.
Manage it your way!
The NWA55AXE with NebulaFlex offers the flexible manageability for you to freely choose between the local GUI management or onboarding to our super easy Nebula cloud management interface that you never need to worry about forgetting the IP address or lost account and password whatsoever.
Description
Durable, Weatherproof Outdoor WiFi 6 APThinking of upgrading to the 11ax (WiFi 6) technology for your outdoor wireless network? Zyxel NWA55AXE is your answer!
Designed for harsh outdoor environments, the IP55-rated, weatherproof NWA55AXE is the best WiFi 6 outdoor access point to extend your wireless network outside.
Smart Mesh for Extended Coverage
Zyxel Smart Mesh Technology not only forms dynamic wireless links between APs for extended range, but can also bridge the wireless connectivity from one building to another. It is no doubt that NWA55AXE is an ideal choice for a simple expansion of your outdoor wireless network or forming an interconnected wireless network through outdoor inter-building links.
Simple Installation. Easy Configuration.
Perfect for small business owners or SOHO users, the NWA55AXE supports both local GUI management and Nebula Cloud networking management. The simple setup in Nebula APP or web allows you to quickly configure the AP with only a few clicks, making it super easy to set up guest and employee network on your own and start enjoying the ultra-fast WiFi 6 speeds in no time.
Manage it your way!
The NWA55AXE with NebulaFlex offers the flexible manageability for you to freely choose between the local GUI management or onboarding to our super easy Nebula cloud management interface that you never need to worry about forgetting the IP address or lost account and password whatsoever.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1775 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Country of origin | China |
| Transmitting power | 26 dBmW |
| Firmware upgradeable | Yes |
| Web-based management | Yes |
| VLAN support | Yes |
| Receiver sensitivity | -99 dBm |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channel bandwidth | 80 MHz |
| Maximum data transfer rate | 1775 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Bandwidth | |
| Channel bandwidth | 80 MHz |
| Management features | |
| VLAN support | Yes |
| Firmware upgradeable | Yes |
| Web-based management | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Transmitting power | 26 dBmW |
| VLAN support | Yes |
| Receiver sensitivity | -99 dBm |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channel bandwidth | 80 MHz |
| Maximum data transfer rate | 1775 Mbit/s |
| Fast roaming | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Security | |
| Auto Wireless Distribution System (WDS) | Yes |
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-PSK |
| MAC address filtering | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (typical) | 16 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Country of origin | China |
| Product colour | White |
| Antenna | |
| Antenna type | External |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
| Technical details | |
| Transmitting power | 26 dBmW |
| Firmware upgradeable | Yes |
| Receiver sensitivity | -99 dBm |
| Harmonized System (HS) code | 85176990 |
| Software | |
| Fast roaming | Yes |
| Weight & dimensions | |
| Width | 308 mm |
| Depth | 136.4 mm |
| Weight | 580 g |
| Height | 49.6 mm |
| Package width | 221 mm |
| Package depth | 188 mm |
| Package height | 59 mm |
| Package weight | 887 g |
| Packaging data | |
| Package width | 221 mm |
| Package depth | 188 mm |
| Package height | 59 mm |
| Package weight | 887 g |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 483 mm |
| Master (outer) case height | 332 mm |
| Master (outer) case gross weight | 13 kg |
| Products per master (outer) case | 7 pc(s) |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
