25-50mm, 824-960MHz, 6.5dBi
Description

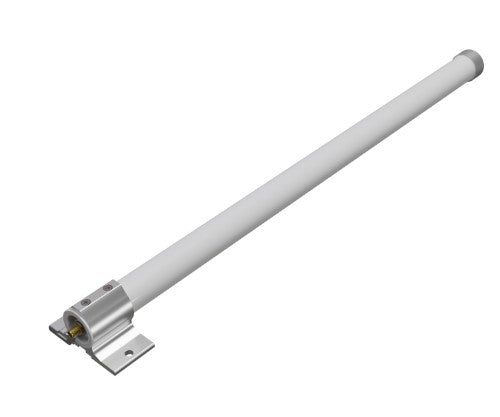

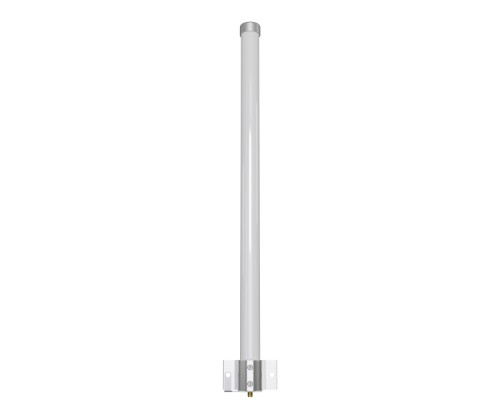

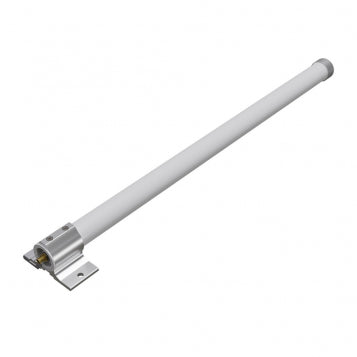

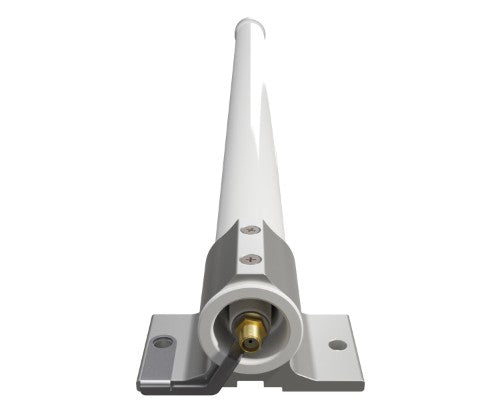

After reviewing your suggestions, we went back to the drawing board and redesigned the Antenna kit for LoRa. The new kit offers significantly higher durability in a smaller package – without sacrificing performance. The improved cable durability and the added IP66 water resistance with protection against powerful jets make this kit an excellent choice for all kinds of marine and coastal projects.
Specifications
| Performance |
|---|
| Bandwidth note |
824 - 960 MHz |
| Antenna gain level (max) |
6.5 dBi |
| Frequency band |
0.824 - 0.96 GHz |
| Vertical beam width |
30° |
| Impedance |
50 Ω |
| Horizontal beam width |
360° |
| Features |
|---|
| Antenna gain level (max) |
6.5 dBi |
| Frequency band |
0.824 - 0.96 GHz |
| Antenna type |
Omni-directional antenna |
| Vertical beam width |
30° |
| Impedance |
50 Ω |
| Horizontal beam width |
360° |
| Antenna connector type |
SMA |
| Technical details |
|---|
| Antenna gain level (max) |
6.5 dBi |
| Frequency band |
0.824 - 0.96 GHz |
| Antenna type |
Omni-directional antenna |
| Vertical beam width |
30° |
| Impedance |
50 Ω |
| Horizontal beam width |
360° |
| Antenna connector type |
SMA |
| Harmonized System (HS) code |
85177100 |

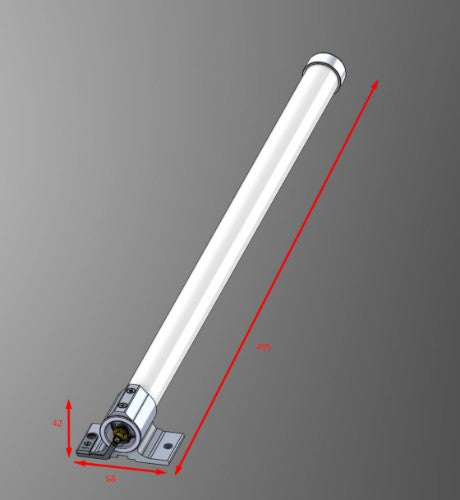

| Weight & dimensions |
|---|
| Weight |
600 g |
| Width |
68 mm |
| Depth |
495 mm |
| Height |
42 mm |
