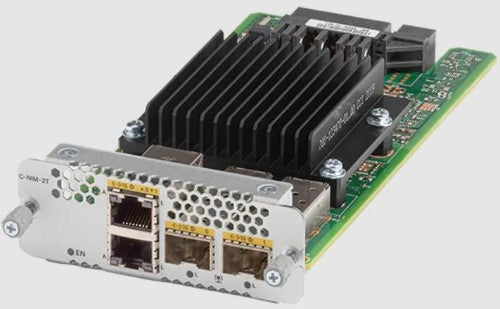

Cisco 2-port 100-Mbps/1-Gbps WAN NIM with 256-bit WAN MACsec (C-NIM-2T)
Description
The C-NIM-2T is a dual combo port module with two RJ-45 copper line ports and two SFP fiber ports. The ports on this NIM are configured in two port groups with one RJ45 port and one SFP port in each group. One port from each group can be configured for simultaneous use, providing flexibility in the selection of media for WAN connectivity. The RJ-45 ports support 100BASE-TX and 1000BASE-T copper connections. The SFP ports support 100BASE-FX and 1000BASE-X fiber connections. The module supports 256-bit WAN MACsec. The C-NIM-2T is supported on the Catalyst 8200 Series, 8200L, and all 8300 Series platforms.
Specifications
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Copper ethernet cabling technology |
1000BASE-TX |
| Technical details |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Copper ethernet cabling technology |
1000BASE-TX |
| Compatibility |
Catalyst 8200 Series, 8200L, and all 8300 Series platforms. |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| Performance |
|---|
| Compatibility |
Catalyst 8200 Series, 8200L, and all 8300 Series platforms. |
| Power |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 85% |
| Weight & dimensions |
|---|
| Weight |
360 g |
| Width |
89 mm |
| Depth |
184 mm |
| Height |
32 mm |
