90 W Midspan AC/DC
Key Features
- 24 V AC and 20-26.4 V DC input; Compatible with Axis PoE devices; Flexible installation; Ideal for retrofitting PTZ; Up to IEEE 802.3bt (90 W) output
Description

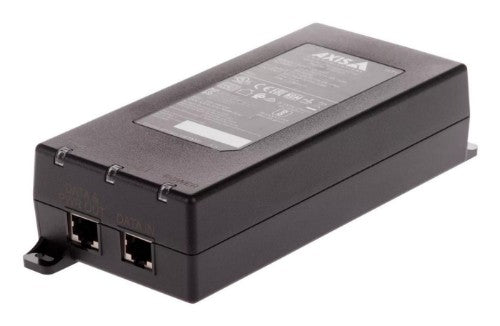

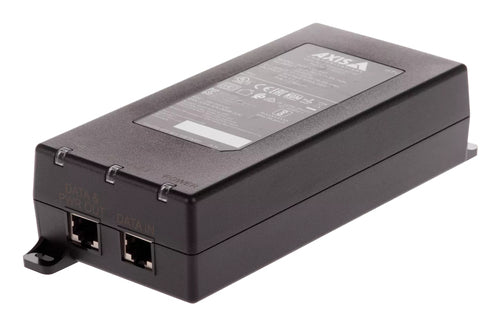

AXIS 90 W Midspan AC/DC is for installations where mains power is not an option. With a power input of either 24 V AC or 20-26.4 V DC, it can deliver up to IEEE 802.3bt (90 W) to the network device. 24 V AC can be needed in harsh environments where new cabling or installations are not an option and you need to retrofit box, dome or PTZ cameras. 20-26.4 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it.
Specifications
| Network |
|---|
| Networking standards |
IEEE 802.3bt |
| Power over Ethernet (PoE) |
Yes |
| Features |
|---|
| Plug and Play |
Yes |
| Product colour |
Black |
| Networking standards |
IEEE 802.3bt |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| Power |
|---|
| Output power |
90 W |
| Input voltage |
20 - 26.4 V |
| Packaging content |
|---|
| Number of products included |
1 pc(s) |
| Technical details |
|---|
| Number of products included |
1 pc(s) |
| Power over Ethernet (PoE) |
Yes |
| Input voltage |
20 - 26.4 V |
| Harmonized System (HS) code |
85044095 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85044095 |
