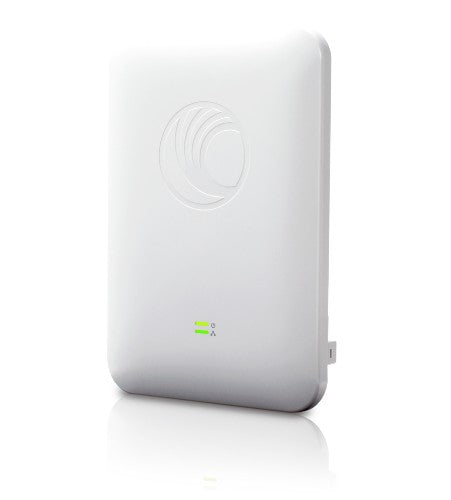

cnPilot e501S Wi-Fi Access Point, Outdoor, 802.11ac, IP67
Description
The cnPilot™ e501S 802.11ac Outdoor Sector Access Point includes an IP67 enclosure, 90° ~ 120° integrated sector antenna, supports 256 client associations, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more.Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 867 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Auto MDI/MDI-X | Yes |
| Syslog | Yes |
| IGMP snooping | Yes |
| Reset button | Yes |
| Spread spectrum method | DSSS, OFDM |
| Frequency band | 2.4 - 2.2484, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | FCC, CE, IC, UL, EN60601-1-2, WEEE/RoHS |
| Maximum data transfer rate | 867 Mbit/s |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Wireless LAN features | |
| Frequency band | 2.4 - 2.2484, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Network | |
| Spread spectrum method | DSSS, OFDM |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Management features | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Command-line interface (CLI) | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM |
| Frequency band | 2.4 - 2.2484, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Maximum data transfer rate | 867 Mbit/s |
| Maximal-Ratio Combining (MRC) | Yes |
| Fast roaming | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Fit AP mode features | Wireless distribution system (WDS) |
| Security | |
| Number of SSID supported | 16 |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK |
| VPN support | L2TP, L2oGRE, PPPoE |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Protocols | |
| Management protocols | SNMP v1, v2c, v3 |
| DHCP server | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Cabling technology | 10/100/1000Base-T(X) |
| Power | |
| Power consumption (max) | 13 W |
| Power consumption (typical) | 8 W |
| Power over Ethernet (PoE) | No |
| Design | |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | FCC, CE, IC, UL, EN60601-1-2, WEEE/RoHS |
| Antenna | |
| Antenna type | Internal |
| Polarization | Dual polarization |
| Antenna gain level (max) | 13 dBi |
| Antenna features | Integrated antenna |
| Technical details | |
| Reset button | Yes |
| Polarization | Dual polarization |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | FCC, CE, IC, UL, EN60601-1-2, WEEE/RoHS |
| Indication | |
| LED indicators | Yes |
| Software | |
| Access Control List (ACL) | Yes |
| Maximal-Ratio Combining (MRC) | Yes |
| Fast roaming | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| Weight & dimensions | |
| Width | 204 mm |
| Depth | 65 mm |
| Weight | 1.3 kg |
| Height | 300 mm |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Other features | |
| Polarization | Dual polarization |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
