Description

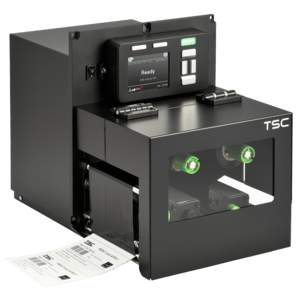

PEX-1221, 8 dots/mm (203 dpi), disp., RTC, USB, USB Host, RS232, LPT, Ethernet
The innovative PEX-1001 Series print engine incorporates a robust die-cast construction designed for years of reliability, ease of use, and cost-conscious serviceability. The PEX-1001 Series combines a precision print mechanism with high-performance electronics to produce labels at up to 18-inches per second, superior print speed in its class.
Designed for ease of integration, the PEX-1001 Series features a bolt-compatible construction with a commonly used GPIO interface compatible with mainstream applicators. Capable of seamless connectivity, the PEX-1001 series supports 802.11 a/b/g/n/ac Wi-Fi and Ethernet enabling dynamic remote printer management powered by SOTI Connect and TSC Console that turns the barcode label printer into a connected network. Ideal for manufacturing and logistic applications where high-speed and high-demand label printing is required.
Description
Igniting Output with An Enterprise-Level Print EngineThe innovative PEX-1001 Series print engine incorporates a robust die-cast construction designed for years of reliability, ease of use, and cost-conscious serviceability. The PEX-1001 Series combines a precision print mechanism with high-performance electronics to produce labels at up to 18-inches per second, superior print speed in its class.
Designed for ease of integration, the PEX-1001 Series features a bolt-compatible construction with a commonly used GPIO interface compatible with mainstream applicators. Capable of seamless connectivity, the PEX-1001 series supports 802.11 a/b/g/n/ac Wi-Fi and Ethernet enabling dynamic remote printer management powered by SOTI Connect and TSC Console that turns the barcode label printer into a connected network. Ideal for manufacturing and logistic applications where high-speed and high-demand label printing is required.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.4 cm |
| Printing | |
| Rotated printing | Yes |
| Colour | No |
| Print speed | 457 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.4 cm |
| Print technology | Direct thermal / Thermal transfer |
| Printable dot numbers | 8 dot |
| Display | |
| Display diagonal | 8.89 cm (3.5") |
| Colour display | Yes |
| Display resolution | 320 x 240 pixels |
| Display | TFT |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
| Paper handling | |
| Supported paper width | 104 mm |
| Ribbon length | 600 m |
| Media thickness | 0.076 - 0.305 mm |
| Maximum label width | 11.4 cm |
| Maximum label length | 25.4 m |
| Core diameter | 2.54 cm |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Parallel ports quantity | 1 |
| Connectivity technology | Wired |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Mobile operating systems supported | Android, iOS |
| Built-in barcodes | 1D, 2D |
| Number of fonts | 8 |
| Ribbon length | 600 m |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
| Built-in processor | Yes |
| Certification | BSMI, CB, CCC, CE Class A, EAC, FCC Class A, BIS, KC, cTUVus, Mexico CoC |
| Page description languages | DPL, EPL, ZPL, ZPL II |
| Design | |
| Display diagonal | 8.89 cm (3.5") |
| Colour display | Yes |
| Display resolution | 320 x 240 pixels |
| Display | TFT |
| Product colour | Black |
| Control type | Buttons |
| Certification | BSMI, CB, CCC, CE Class A, EAC, FCC Class A, BIS, KC, cTUVus, Mexico CoC |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Technical details | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Black |
| Built-in barcodes | 1D, 2D |
| Number of fonts | 8 |
| Ribbon length | 600 m |
| Maximum label width | 11.4 cm |
| Maximum label length | 25.4 m |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Certification | BSMI, CB, CCC, CE Class A, EAC, FCC Class A, BIS, KC, cTUVus, Mexico CoC |
| System requirements | |
| Mobile operating systems supported | Android, iOS |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 25 - 85% |
| Weight & dimensions | |
| Width | 245 mm |
| Depth | 390 mm |
| Height | 300 mm |
| Weight | 13 kg |
| Packaging content | |
| Cables included | AC, USB |
