Description

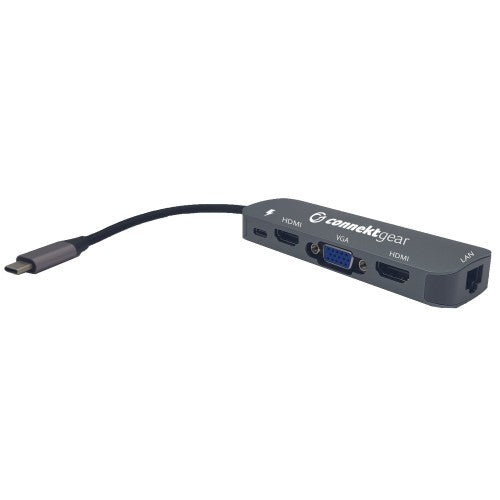

Type C Dual Screen Docking Station with 100W PD
Key Features
- DeX Compatible: turns your mobile device into a PC like experience
- 2x UHD HDMI 4k resolution @30Hz
- 1x VGA 1080P @60Hz
- 1 Gbps Ethernet LAN Port
- 3 x USB 3.0 Ports providing data transfer rates up to 5Gbps
- USB Type C port: Power Delivery up to 100W and data transfer rates up to 5Gbps
- Supports Display Mirror Mode (this copies your current screen to another)
- Supports Display Extend mode (this extends your current screen to another)
Description
-Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Line-in | No |
| Line-out | No |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DC-in jack | No |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3 |
| USB Power Delivery up to | 100 W |
| HDCP version | 1.4/2.2 |
| HDCP | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Full duplex | No |
| Auto MDI/MDI-X | No |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Full duplex | No |
| Auto MDI/MDI-X | No |
| Number of displays supported | 3 |
| Country of origin | China |
| Product colour | Grey |
| Card reader integrated | No |
| Plug and Play | Yes |
| Certification | RoHS, REACH |
| Housing material | Aluminium |
| Maximum refresh rate | 60 Hz |
| Hub interfaces | HDMI, VGA, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Technical details | |
| Product colour | Grey |
| Plug and Play | Yes |
| Warranty period | 2 year(s) |
| Storage | |
| Card reader integrated | No |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Weight | 300 g |
| Width | 109 mm |
| Depth | 15 mm |
| Height | 39 mm |
| Package weight | 32.5 g |
| Package width | 150 mm |
| Package depth | 40 mm |
| Package height | 97 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Country of origin | China |
| Product colour | Grey |
| Certification | RoHS, REACH |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 32.5 g |
| Package width | 150 mm |
| Package depth | 40 mm |
| Package height | 97 mm |
| Packaging content | |
| Quick start guide | No |
| AC adapter included | No |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Certification | RoHS, REACH |
