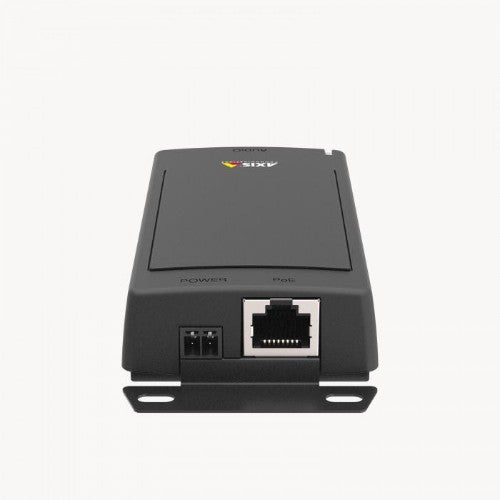

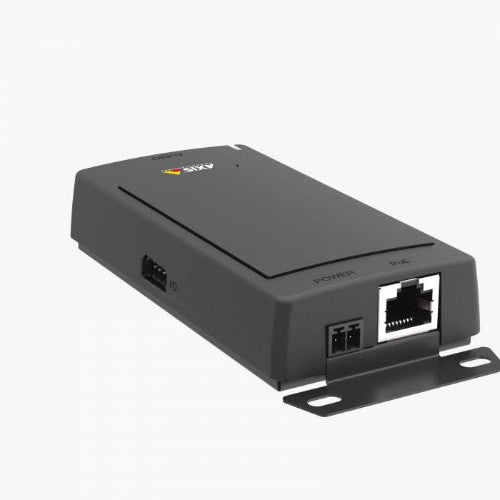

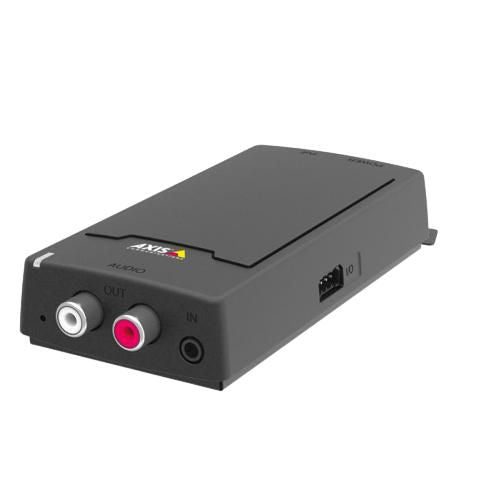

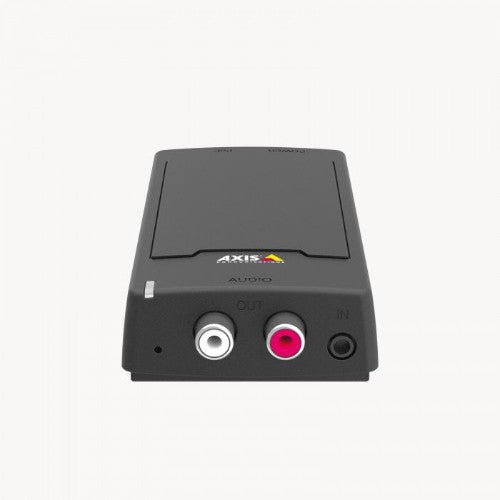

C8110, Network Audio Bridge, Mic-in, line-in and line-out, 20 Hz - 20 kHz, 512 MB RAM, 512 MB Flash, RJ45 10BASE-T/100BASE-TX PoE, IP20, black
Key Features
- Based on open standards; Combines analog and network audio; Easy integration with other systems; I/Os for buttons and relays; PoE for easy installation
Description
AXIS C8110 Network Audio Bridge is a smart solution based on open standards for connecting and combining analog and digital audio systems. Thanks to the built-in AXIS Audio Manager Edge application you can get functionalities like zone management and content scheduling in existing analog systems. With SIP support it is possible to connect an IP telephony system for callouts in analog speakers. With analog audio input you can easily integrate your intercom system or music streaming box with network speakers from Axis.
Specifications
| Wireless LAN features |
|---|
| Wi-Fi |
No |
| Network |
|---|
| Networking standards |
IEEE 802.1x, IEEE 802.3at |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Cabling technology |
10/100Base-T(X) |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
| Cabling technology |
10/100Base-T(X) |
| Features |
|---|
| Product type |
Network bridge |
| Product colour |
Black |
| LED indicators |
Yes |
| Mounting type |
Shelf/wall-mounted |
| Power |
|---|
| Power consumption (max) |
4 W |
| Power source type |
DC, PoE |
| DC input voltage |
8 - 28 V |
| Power consumption (typical) |
1.85 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Management features |
|---|
| LED indicators |
Yes |
| Certificates |
|---|
| Certification |
CISPR 35, CISPR 32 Class B, EAC, EN 55035,
EN 55032 Class B, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), KC KN35, KN32 Class B, RCM AS/NZS CISPR 32 Class B, VCCI Class B |
| Technical details |
|---|
| Product colour |
Black |
| Quantity per pack |
1 pc(s) |
| Warranty period |
5 year(s) |
| Weight & dimensions |
|---|
| Weight |
107 g |
| Width |
128 mm |
| Depth |
56 mm |
| Height |
24 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
