IEEE 802.11a/b/g/n/ac/ax, 1201 + 574 Mbps, 2.4/5 GHz, 40.3 g
Key Features
- Instant upgrade to WiFi 6 – Boost your PC to 802.11ax standard via USB with speeds up to 1800 Mbps.
- Ultra-high efficiency – Enable faster transmission in high density environments with OFDMA, MU-MIMO and BSS Coloring.
- Amplified signal – External antenna and cradle ensures powerful WiFi signal.
- Supports WPA3 security – For enhanced WiFi security and more robust authentication.
- Plug-and-play – Easy to use with wide operating system support.
Description
Instant Upgrade to WiFi 6

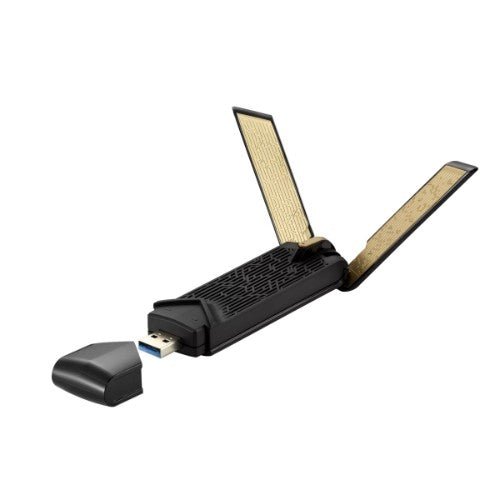

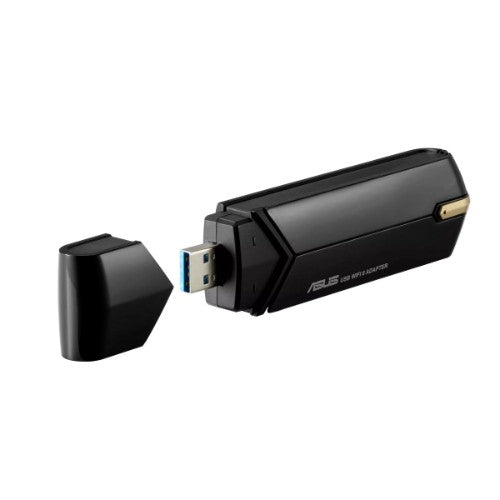

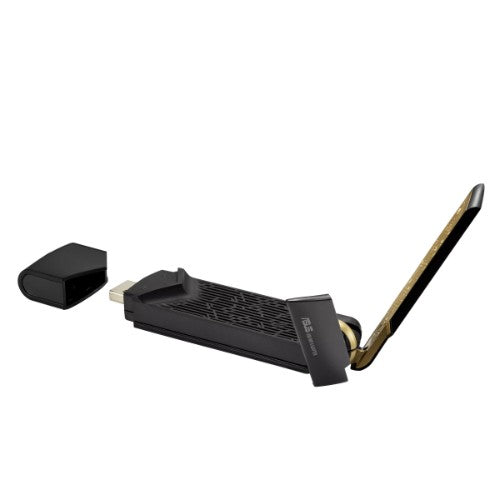

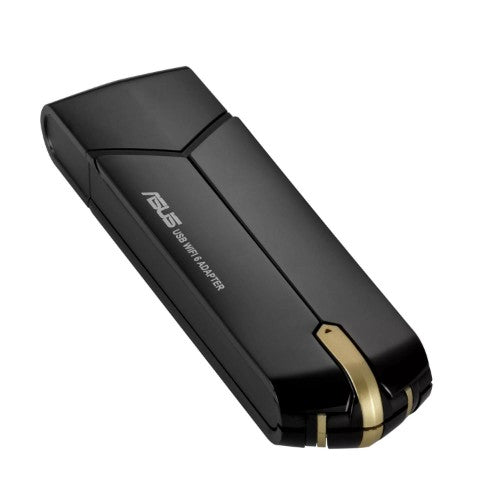

The WiFi 6 standard delivers efficient connectivity that meets the demands of the growing number of connected personal and IoT devices. The USB-AX56 USB adapter gives your laptop or PC an instant plug-and-play upgrade to WiFi 6.
Ultrafast WiFi Speed
USB-AX56 is a 2x2 dual-band WiFi 6 client that lets you take full advantage of WiFi 6 routers. It offers a total wireless bandwidth of up to 1800 Mbps — 574 Mbps on the 2.4 GHz band and 1201 Mbps on the 5 GHz band. That makes USB-AX56 up to 1.5X faster than a WiFi 5 client!
4X More Efficient Connections
OFDMA and MU-MIMO greatly increase connection efficiency, giving improved network capacity.
80% Longer Range
OFDMA divides frequency channels into smaller sub-channels, which means they can travel further.
7X Better Power Savings
Target Wake Time allows devices to sleep when they are not active, reducing power consumption.
The Benefits of WiFi 6
Beamforming Boosts WiFi Range
With beamforming, your router can locate USB-AX56 in order to direct a stronger signal in the direction of your device. Beamforming improves signal strength and hence gives the device better range.
Enhanced WPA3 Network Security
The successor to the well-established WPA2 protocol, WPA3 adds new features that simplify WiFi security, while making your connections much more secure.
Plug-And-Play
USB-AX56 can be plugged easily into laptops or PCs with a USB port to give it full WiFi 6 speed capabilities. USB-AX56 supports a wide variety of operating systems, including Windows 10/8.1/8/7 and Linux, making it the perfect choice for any laptop or PC.
Specifications
| Ports & interfaces |
|---|
| Internal |
No |
| Interface |
WLAN |
| Host interface |
USB |
| Connectivity technology |
Wireless |
| Bandwidth |
|---|
| Maximum data transfer rate |
1775 Mbit/s |
| Wireless LAN features |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| WLAN data transfer rates supported |
11,54,400,574,867,1200 Mbit/s |
| Antenna |
|---|
| Antenna |
Yes |
| Technical details |
|---|
| Product colour |
Black, Gold |
| Harmonized System (HS) code |
85176990 |
| Network |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Security algorithms |
WPA3 |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| WLAN data transfer rates supported |
11,54,400,574,867,1200 Mbit/s |
| Maximum data transfer rate |
1775 Mbit/s |
| Design |
|---|
| Product colour |
Black, Gold |
| Antenna |
Yes |
| Internal |
No |
| Component for |
PC |
| Antenna design |
External |
| Software |
|---|
| Windows operating systems supported |
Windows 10 |
| Power |
|---|
| USB powered |
Yes |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10 |
| Weight & dimensions |
|---|
| Weight |
40.3 g |
| Security |
|---|
| Security algorithms |
WPA3 |
| Performance |
|---|
| Security algorithms |
WPA3 |
| Windows operating systems supported |
Windows 10 |
| Other features |
|---|
| Harmonized System (HS) code |
85176990 |
