Description
Angled Type F (Schuko) to C5 Power Cable, White 5m
The type F connectors, also known as Schuko, are most often used within the majority of European countries, Russia, as well as some North African and Malaysian countries.
Description

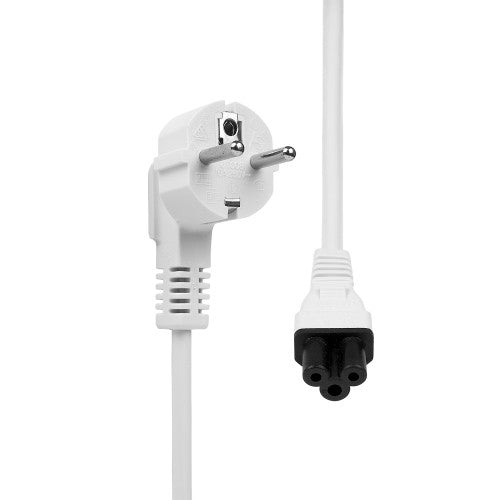

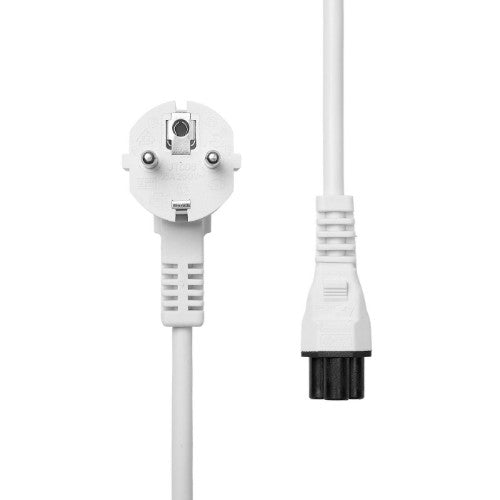

The ProXtend PC-FAC5-005W power cord enables a connection between a male type F (Schuko) connector, and a female C5 connector. The type F (Schuko) connector is angled at 90 degrees, while the C5 connector has a straight form factor.The type F connectors, also known as Schuko, are most often used within the majority of European countries, Russia, as well as some North African and Malaysian countries.
Specifications
| Ports & interfaces | |
|---|---|
| Connector angle | 90° |
| Connector 2 | C5 coupler |
| Connector 1 | Power plug type F |
| Cable length | 5 m |
| Features | |
| Connector 1 form factor | Angled |
| Connector 2 form factor | Straight |
| Conductor material | Copper |
| Number of conductors | 24 |
| Cable type | H05VV-F |
| Number of cable cores | 3 |
| Core size | 0.75 mm² |
| Certification | VDE |
| Overload protection | No |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector angle | 90° |
| Connector 2 | C5 coupler |
| Connector 1 | Power plug type F |
| Cable length | 5 m |
| Connector 1 lockable | No |
| Connector 2 lockable | No |
| Suitable for use in country/location | Europe |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Product colour | White |
| Plug and Play | Yes |
| Power | |
| Input voltage | 250 V |
| Input current | 2.5 A |
| Colour | |
| Product colour | White |
| Operational conditions | |
| Operating temperature (T-T) | -15 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Sustainability | |
| Sustainability compliance | Yes |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Country of origin | China |
| Overload protection | No |
| Jacket material | Polyvinyl chloride (PVC) |
| Sustainability compliance | Yes |
| Compliance certificates | Low Voltage Directive (LVD), REACH, RoHS |
| Other features | |
| Country of origin | China |
