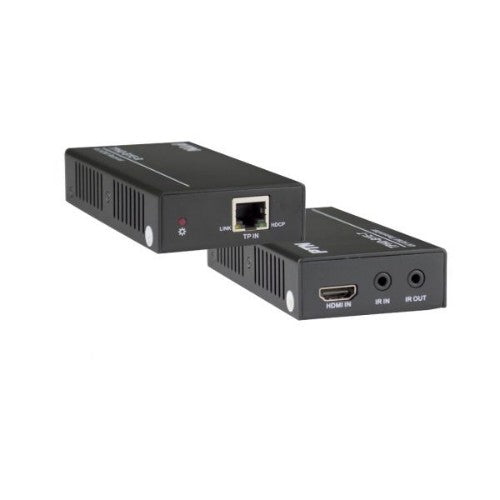

HDBaseT Extender Set (Transmitter & Receiver), 70m max, 4K
Key Features
- Support up to 4K@60Hz 4:2:0 video signal transmission
- Max transmission distance is 4K 131ft (40m) and 1080P 230ft (70m) over single CAT5e/CAT6 cable
- High Bandwidth: 10.2Gbps
- HDTV Compatible, HDMI1.4 and HDCP compliant
- Support PoC & CEC
- Use HDBaseT technology for extended capability and reliability
- Bi-directional IR control
- LED indicators showing work status
- HDMI over CAT6A
Description
Transmitter and Receiver. VL120007 is a HDBaseT extender for HDMI and bi-directional IR signals, which contains a transmitter (VL120007T) and a receiver (VL120007R). It transmits 4K signal up to 131ft (40m), 1080P signal up to 230ft (70m) over single Cat5e/Cat6 cable. The extender set supports PoC function, meaning only one power supply is needed.

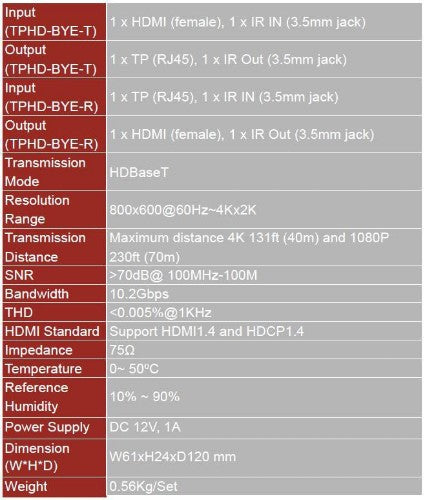

Specifications
| Features |
|---|
| HDCP |
Yes |
| Wall mountable |
Yes |
| IR pass-through |
Yes |
| HDCP & EDID bypass |
Yes |
| Consumer Electronics Control (CEC) support |
Yes |
| 3D |
Yes |
| Signal-to-Noise Ratio (SNR) |
70 dB |
| Impedance |
75 Ω |
| HDBaseT certified |
Yes |
| Remote control type |
IR |
| Type |
AV transmitter & receiver |
| Cable types supported |
Cat5e |
| Maximum transfer distance |
70 m |
| Supported video modes |
3840p |
| LED indicators |
Yes |
| Bandwidth |
10.2 Gbit/s |
| Product colour |
Black |
| HDCP pass-through |
Yes |
| CEC pass-through |
Yes |
| HDCP version |
1.4 |
| Technical details |
|---|
| HDCP |
Yes |
| Wall mountable |
Yes |
| IR pass-through |
Yes |
| HDCP & EDID bypass |
Yes |
| Consumer Electronics Control (CEC) support |
Yes |
| 3D |
Yes |
| Signal-to-Noise Ratio (SNR) |
70 dB |
| Impedance |
75 Ω |
| HDBaseT certified |
Yes |
| Wi-Fi |
No |
| Remote control type |
IR |
| Type |
AV transmitter & receiver |
| Cable types supported |
Cat5e |
| Maximum transfer distance |
70 m |
| Video out |
1 |
| Video in |
1 |
| Supported video modes |
3840p |
| Bandwidth |
10.2 Gbit/s |
| Product colour |
Black |
| Connectivity technology |
Wired |
| Audio support |
Yes |
| Ports & interfaces |
|---|
| Remote (IR) output |
1 |
| Remote (IR) input |
1 |
| HDBaseT port |
Yes |
| Wi-Fi |
No |
| Bluetooth |
No |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| HDMI version |
1.4 |
| Video out |
1 |
| Video in |
1 |
| DC-in jack |
Yes |
| Connectivity technology |
Wired |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power consumption (transmitter) (max) |
9.6 W |
| Power consumption (receiver) (max) |
9.6 W |
| Output current |
1 A |
| Operating voltage (transmitter) |
12 V |
| Operating voltage (receiver) |
12 V |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| External power adapter |
Yes |
| Indication |
|---|
| LED indicators |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Width |
196 mm |
| Transmitter dimensions (WxDxH) |
61 x 120 x 24 mm |
| Receiver dimensions (WxDxH) |
61 x 120 x 24 mm |
| Package depth |
132 mm |
| Height |
111 mm |
| Depth |
132 mm |
| Package width |
196 mm |
| Package height |
111 mm |
| Weight |
450 g |
| Package weight |
552 g |
| Packaging data |
|---|
| Package depth |
132 mm |
| Package width |
196 mm |
| Package height |
111 mm |
| Package weight |
552 g |
| Packaging content |
|---|
| IR receiver included |
No |
| IR blaster included |
No |
| Mounting brackets included |
Yes |
| AC adapter included |
Yes |
| Included power plug types |
EU |
