Description
4 MP, 1/2.7" CMOS, WDR, IR, PoE, IK08, IP66, IP67
Key Features
- Analytics with deep learning; Compact, lightweight design; Outdoor-ready with IR illumination; Quad HD 1440p/4 MP; Zipstream supporting H.264/H.265
Description

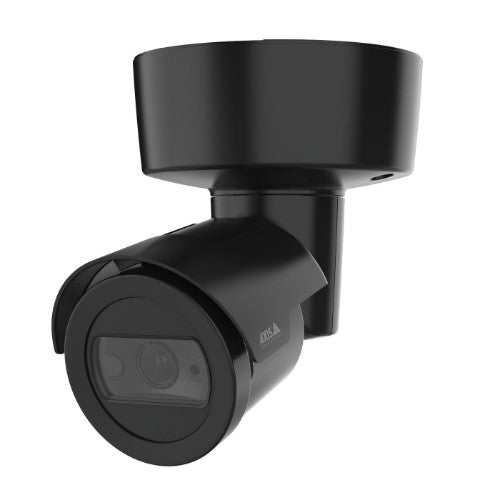

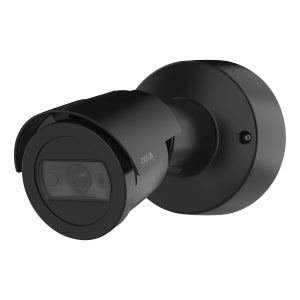

Ideal for tough environments and rough weather, AXIS M2036-LE delivers Quad HD 1440p/4 MP. With a deep learning processing unit, it enables unique opportunities for analytics based on deep learning on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This IK08-rated camera offers flexible and cost-efficient installation including support for PoE. Edge-to-edge technology allows for smart pairing with Axis Speakers. Plus, a spacious, sealed back box ensures secure cable management.Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A IEC/EN 62368-1, IEC 62471, IS 13252 IEC 60068-2-X, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK08 NIST SP500-267 |
| Design | |
| IK code | IK08 |
| Form factor | Bullet |
| Product colour | Black |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Plastic |
| Camera | |
| White balance | Auto |
| Camera shutter speed | 1/38500 - 1/5 s |
| Lens viewing angle, horizontal | 130° |
| Lens viewing angle, vertical | 81° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2.1 |
| Closest focusing distance | 0.5 m |
| Fixed focal length | 2.4 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Infra-red wavelength | 855 nm |
| Video | |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 2304 x 1728 pixels |
| Supported graphics resolutions | 2304 x 1728, 2668 x 1512 |
| Supported video modes | 1440p |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 4 MP |
| Video intelligence analytic | Yes |
| Video recording | Yes |
| Network | |
| Bluetooth | No |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1 |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Video motion detection | Yes |
| Security algorithms | 802.1x RADIUS, EAP-TLS, HTTPS, SSH |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 12.95 W |
| Power consumption (typical) | 5 W |
| Certificates | |
| Certification | CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A IEC/EN 62368-1, IEC 62471, IS 13252 IEC 60068-2-X, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK08 NIST SP500-267 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Length | 170 mm |
| Diameter | 10.1 cm |
| Weight | 491 g |
| Packaging content | |
| Number of cameras | 1 |
| Technical details | |
| Doesn't contain | BFR, PVC |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
| Doesn't contain | BFR, PVC |
