Description

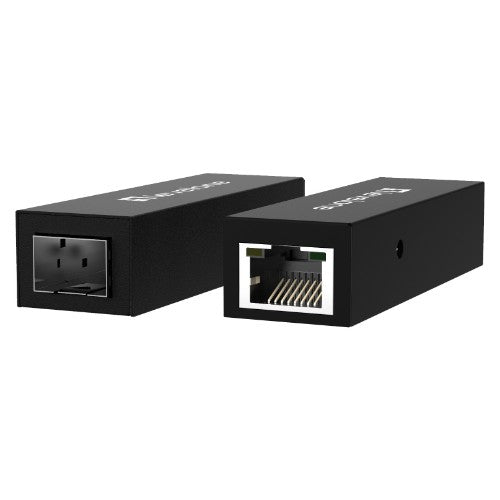

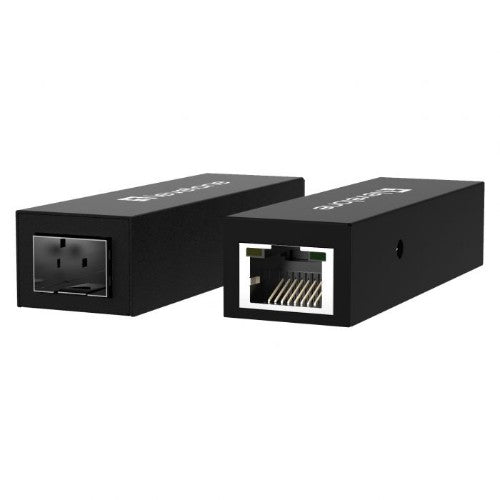

Ultra-Slim RJ45 to SFP Gigabit Media Converter

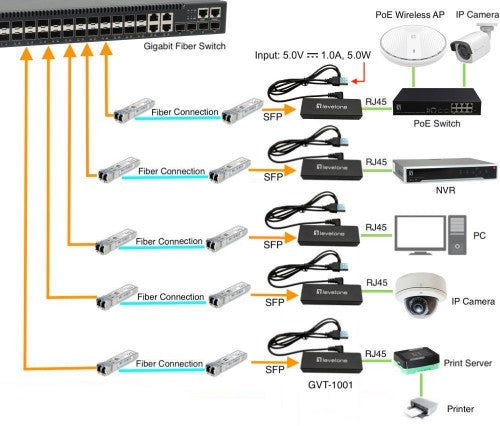

This Ultra-Slim RJ45 to SFP gigabit media converter can be USB powered by USB 1.0 or 2.0 port, which is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy. So this ultra-slim media converter is an ideal solution for fiber-to-the-laptop where it needs Gigabit connectivity but local power isn’t available. For applications not utilizing USB power, this converter is also available with a USB power adapter, providing compatibility with electrical outlet types. This media converter supports Jumbo frame 10 Kbytes and watchdog function, it can automatically reboot if frozen.
Key Features
- 10/100/1000Base-T to 1000Base-X
- SFP slot for flexible long distance transmission
- USB powered for easy portability or used with the included power adaptor
- Plug-and-Play and auto-MDI/MDIX
- Lower jitter and Lower latency
- Ultra low power dissipation＜1.2W
- Support Jumbo frame 10Kbytes
- Support watchdog, automatically reboot if frozen
Description
The GVT-1001 is the ultra-slim plug-and play 10/100/1000Base-T to 1000Base-X media converter which is designed for applications where compact size, light weight and low power are critical requirements. It can be easily installed in tight places or conveniently slip into any pocket or laptop carrying case for easy portability with its ultra-slim size and super light weight.This Ultra-Slim RJ45 to SFP gigabit media converter can be USB powered by USB 1.0 or 2.0 port, which is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy. So this ultra-slim media converter is an ideal solution for fiber-to-the-laptop where it needs Gigabit connectivity but local power isn’t available. For applications not utilizing USB power, this converter is also available with a USB power adapter, providing compatibility with electrical outlet types. This media converter supports Jumbo frame 10 Kbytes and watchdog function, it can automatically reboot if frozen.
Specifications
| Network | |
|---|---|
| Fiber optic connector | SFP |
| Jumbo frames support | Yes |
| Auto-negotiation | Yes |
| Jumbo frames | 10000 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3z |
| Ethernet LAN data rates | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Plug and Play | Yes |
| Internal | No |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet height (air) | 154.4 cm |
| Master (outer) cases per pallet (air) | 15 pc(s) |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | CE, UKCA, WEEE |
| Performance | |
| Jumbo frames support | Yes |
| Auto-negotiation | Yes |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 100000 h |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Indication | |
| LED indicators | Activity, Link |
| Design | |
| Country of origin | China |
| LED indicators | Activity, Link |
| Product colour | Yellow |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 100000 h |
| Power | |
| Input voltage | 5 V |
| Input current | 1 A |
| Power consumption (typical) | 1.2 W |
| Management features | |
| Plug and Play | Yes |
| Packaging content | |
| Package type | Box |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Colour | |
| Product colour | Yellow |
| Weight & dimensions | |
| Width | 23.3 mm |
| Depth | 79 mm |
| Weight | 56 g |
| Height | 18.5 mm |
| Package depth | 105 mm |
| Package width | 135 mm |
| Package height | 45 mm |
| Package weight | 160 g |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package type | Box |
| Package depth | 105 mm |
| Package width | 135 mm |
| Package height | 45 mm |
| Package weight | 160 g |
| Logistics data | |
| Master (outer) case width | 475 mm |
| Master (outer) case length | 560 mm |
| Master (outer) case height | 275 mm |
| Master (outer) case gross weight | 17 kg |
| Products per master (outer) case | 100 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet height (air) | 154.4 cm |
| Master (outer) cases per pallet (air) | 15 pc(s) |
| Harmonized System (HS) code | 85176990 |
