Description
HDMI KVM Extender Set over IP 150 m, Full HD 1080p
- Extends the maximum length for HDMI cables to up to 150 m via a simple network cable
- Extension of the signal (unlimited distance) via the existing local network infrastructure or using commercially available network switches (IP connection)
- Supports video resolutions up to: Full-HD (1920x1200/60 Hz, 4:4:4)
- KVM functionality for connecting mouse & keyboard
- Supports CAT 5e, 6, 6A, 7, 8 network cables
- IR transmission
- Compact design for simple and flexible installations
- Robust metal housing

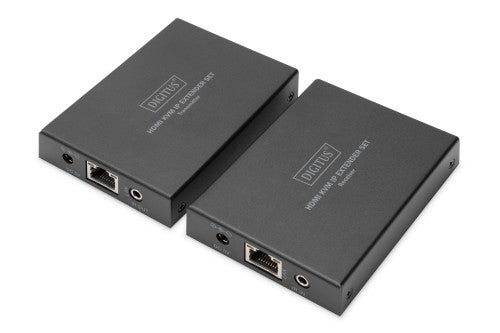

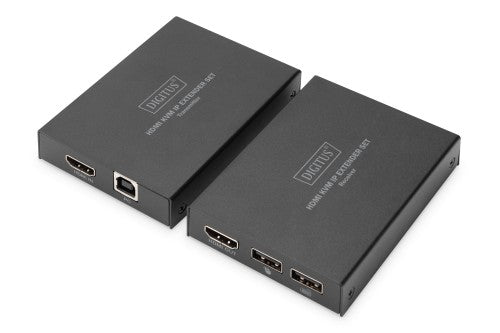

The HDMI KVM IP Extender Set consists of a transmitter unit (local location) and a receiver unit (remote location). The HDMI signal can be extended to a maximum distance of 150 m via a network cable (CAT 5e or higher) (point-to-point connection). The HDMI signal can also be extended to an unlimited distance via the existing network infrastructure or using standard IP network switches (IP connection). The highest supported video resolution is Full HD (1920x1200/60 Hz, 4:4:4). It also allows convenient access to a computer (mouse & keyboard) via the USB ports on the receiver unit. It is perfect for industrial, commercial and public applications.
Key Features
- HDMI 1.4
- 6.75 Gbps video bandwidth
- Supports Full HD, 1920x1200/60 Hz, 4:4:4
- HDCP 1.4
- Supports CAT 5e, 6, 6A, 7, 8 network cables
- Maximum transmission distance: 150 m (point-to-point connection)
- Supports H.256 encoding/decoding
- USB 1.1
- Compression: H.265

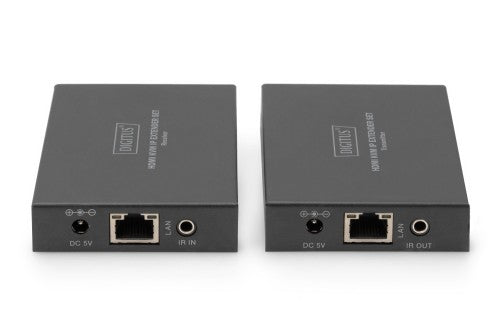

- Transmitter unit connections:
- 1x HDMI input (1920x1200/60Hz) - Signal source connection
- 1x RJ45 output - CAT transmission cable connection
- 1x USB-B input - Host PC connection for using the KVM functionality
- 1x IR output - Connection of IR transmitter
- 1x power supply input (DC 5V/1A) - external power supply connection
- Receiver unit connections:
- 1x HDMI output (1920x1200/60Hz) - Output device connection
- 1x RJ45 input - CAT transmission cable connection
- 2x USB-A (1.1) input - mouse & keyboard connection
- 1x IR input - IR receiver connection
- 1x power supply input (DC 12V/1A) - external power supply connection
- ESD protection
- Operating temperature: -10-50°
- Power consumption: Transmitter approx. 1.4W, Receiver approx. 1.7W
- Housing: Metal
- Dimensions (1 unit): L 9.15 x W 6.7 x H 1.75 cm
- Weight: Transmitter 155 g, Receiver 150 g
- Color: Black
Description
Extends the HDMI signal up to 150 m and offers KVM functionality for controlling the signal source via keyboard/mouse on the receiver unit- Extends the maximum length for HDMI cables to up to 150 m via a simple network cable
- Extension of the signal (unlimited distance) via the existing local network infrastructure or using commercially available network switches (IP connection)
- Supports video resolutions up to: Full-HD (1920x1200/60 Hz, 4:4:4)
- KVM functionality for connecting mouse & keyboard
- Supports CAT 5e, 6, 6A, 7, 8 network cables
- IR transmission
- Compact design for simple and flexible installations
- Robust metal housing
The HDMI KVM IP Extender Set consists of a transmitter unit (local location) and a receiver unit (remote location). The HDMI signal can be extended to a maximum distance of 150 m via a network cable (CAT 5e or higher) (point-to-point connection). The HDMI signal can also be extended to an unlimited distance via the existing network infrastructure or using standard IP network switches (IP connection). The highest supported video resolution is Full HD (1920x1200/60 Hz, 4:4:4). It also allows convenient access to a computer (mouse & keyboard) via the USB ports on the receiver unit. It is perfect for industrial, commercial and public applications.
Specifications
| Features | |
|---|---|
| Material | Metal |
| Plug and Play | Yes |
| Video compression formats | H.265 |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum transfer distance | 150 m |
| Bandwidth | 6.75 Gbit/s |
| Electrostatic Discharge (ESD) protection | Yes |
| HDCP version | 1.4 |
| Technical details | |
| Material | Metal |
| Plug and Play | Yes |
| Video compression formats | H.265 |
| Package type | Box |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum transfer distance | 150 m |
| Bandwidth | 6.75 Gbit/s |
| Connectivity technology | Wired |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
| Package volume | 1873.12 cm³ |
| Ports & interfaces | |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| USB ports quantity | 3 |
| USB version | 1.1 |
| USB connector type | USB Type-A, USB Type-B |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| Connectivity technology | Wired |
| Power | |
| Power over Ethernet (PoE) | No |
| Power consumption (transmitter) (max) | 1.4 W |
| Power consumption (receiver) (max) | 1.7 W |
| Input current | 1 A |
| Operating voltage | 12 V |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Weight & dimensions | |
| Receiver weight | 150 g |
| Transmitter weight | 155 g |
| Transmitter dimensions (WxDxH) | 67 x 91.5 x 17.5 mm |
| Receiver dimensions (WxDxH) | 67 x 91.5 x 17.5 mm |
| Package depth | 135 mm |
| Package width | 185 mm |
| Package height | 75 mm |
| Package weight | 67.5 g |
| Packaging data | |
| Package type | Box |
| Package depth | 135 mm |
| Package width | 185 mm |
| Package height | 75 mm |
| Package weight | 67.5 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | USB |
| AC adapter included | Yes |
| Manual | Yes |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
