Description

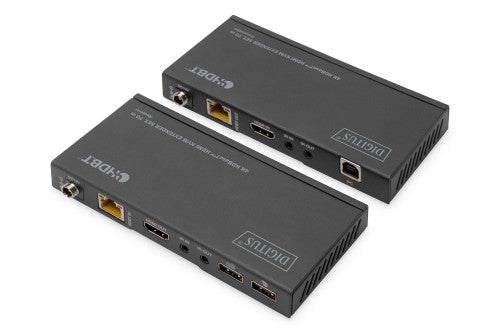

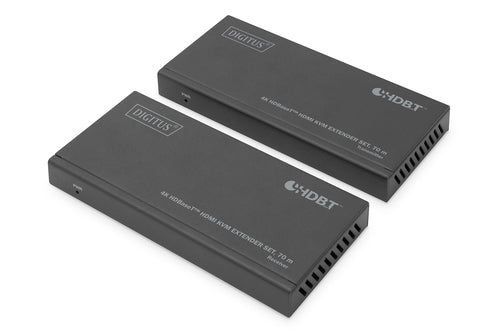

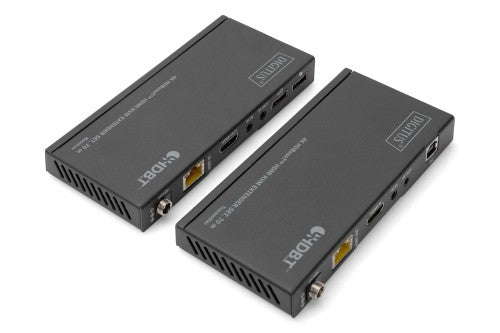

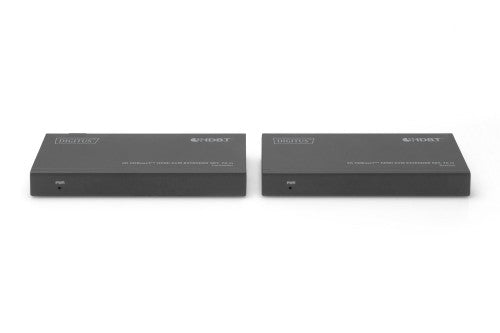

HDBaseT HDMI KVM Extender 4K/30Hz, 70 m, 10.2 Gbps, HDCP 2.2
- Extends the maximum length for HDMI cables to up to 70 m (Full HD, 1080p/60Hz) or 40 m (UHD, 4K/30Hz) via a simple network cable
- KVM functionality (USB 1.1) for connecting mouse & keyboard
- PoC (Power over Cable) - only one unit requires an external power supply unit
- Supports CAT 5e, 6, 6A, 7, 8 network cables
- Video bandwidth: 10.2 Gbps
- Supports HDBaseT™ 1.0
- HDCP 2.2, 1.4
- IR transmission (bi-directional)
- Compact design for simple and flexible installations
- Robust metal housing
The HDBaseT™ HDMI KVM Extender Set enables signal transmission over long distances using a simple copper data cable. The maximum transmission distance is 70 m (Full HD). 4K signals can be extended up to 40 m. Thanks to PoC, only one unit needs to be supplied with power using an external power supply unit. Bidirectional IR transmission and KVM functionality (USB 1.1) for connecting a mouse and keyboard are also included.
Key Features
- Extends the maximum length for HDMI cables to up to 70 m (Full HD, 1080p/60Hz) or 40 m (UHD, 4K/30Hz) via a simple network cable
- KVM functionality (USB 1.1) for connecting mouse & keyboard
- PoC (Power over Cable) - only one unit requires an external power supply unit
- Supports CAT 5e, 6, 6A, 7, 8 network cables
- Video bandwidth: 10.2 Gbps
- Supports HDBaseT™ 1.0
- HDCP 2.2, 1.4
- IR transmission (bi-directional)
- Compact design for simple and flexible installations
- Robust metal housing

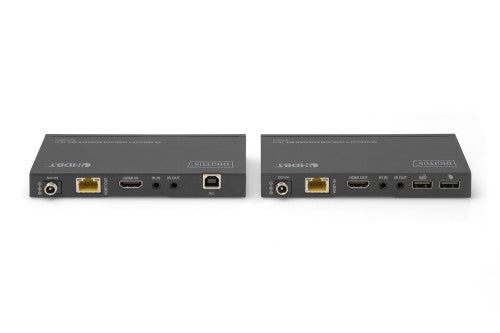

- Transmitter unit connections:
- 1x HDMI input (4K/30Hz) - Signal source connection
- 1x RJ45 output (HDBaseT™) - CAT transmission cable connection
- 1x USB-B input - Host PC connection for using the KVM functionality
- 1x IR input for receiving remote control signals
- 1x IR output to control the source device
- 1x power supply input (DC 12V/1A), screw connector - external power supply connection
- Receiver unit connections:
- 1x HDMI output (4K/30Hz) - Output device connection
- 1x RJ45 input (HDBaseT™) - CAT transmission cable connection
- 2x USB-A (1.1) input - mouse & keyboard connection
- 1x IR output to control the output display
- ESD protection
- Suitable for wall mounting
- Operating temperature: 0-40°
- Power consumption: approx. 6.6 W
- Compression: HDBaseT 1.0
- Housing: Metal
- Dimensions (1 unit): L 6.5 x W 14 x H 1.8 cm
- Weight: Transmitter 224 g, Receiver 227 g
- Color: Black
Description
Extends the HDMI signal up to 70 m and offers the option of controlling the keyboard and mouse via USB on the receiver unit- Extends the maximum length for HDMI cables to up to 70 m (Full HD, 1080p/60Hz) or 40 m (UHD, 4K/30Hz) via a simple network cable
- KVM functionality (USB 1.1) for connecting mouse & keyboard
- PoC (Power over Cable) - only one unit requires an external power supply unit
- Supports CAT 5e, 6, 6A, 7, 8 network cables
- Video bandwidth: 10.2 Gbps
- Supports HDBaseT™ 1.0
- HDCP 2.2, 1.4
- IR transmission (bi-directional)
- Compact design for simple and flexible installations
- Robust metal housing
The HDBaseT™ HDMI KVM Extender Set enables signal transmission over long distances using a simple copper data cable. The maximum transmission distance is 70 m (Full HD). 4K signals can be extended up to 40 m. Thanks to PoC, only one unit needs to be supplied with power using an external power supply unit. Bidirectional IR transmission and KVM functionality (USB 1.1) for connecting a mouse and keyboard are also included.
Specifications
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 70 m |
| Cable types supported | Cat6, Cat6a, Cat7, Cat8 |
| Maximum digital resolution | 3840 x 2160 pixels |
| Product colour | Black |
| Material | Metal |
| Country of origin | China |
| Plug and Play | Yes |
| LED indicators | Yes |
| USB 1.1 ports quantity | 2 |
| Transmitter | |
| Transmitter video port type | HDMI |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | HDMI |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Ports & interfaces | |
| USB port type | USB Type-A |
| RJ-45 ports quantity | 2 |
| USB 1.1 ports quantity | 2 |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
| Power consumption (transmitter) (max) | 6.6 W |
| Power consumption (receiver) (max) | 6.6 W |
| Weight & dimensions | |
| Transmitter width | 14 cm |
| Transmitter depth | 6.5 cm |
| Transmitter height | 1.8 cm |
| Transmitter weight | 224 g |
| Receiver width | 14 cm |
| Receiver depth | 6.5 cm |
| Receiver height | 1.8 cm |
| Receiver weight | 227 g |
| Package width | 245 mm |
| Package depth | 185 mm |
| Package height | 75 mm |
| Package weight | 950 g |
| Packaging data | |
| Package width | 245 mm |
| Package depth | 185 mm |
| Package height | 75 mm |
| Package weight | 950 g |
| AC adapter included | Yes |
| Cables included | USB |
| Manual | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | USB |
| Manual | Yes |
| Mounting bracket(s) included | Yes |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Maximum resolution | 1920 x 1080 pixels |
| Package volume | 3399.38 cm³ |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 85176200 |
| Harmonized System (HS) code | 84733080 |
