Description

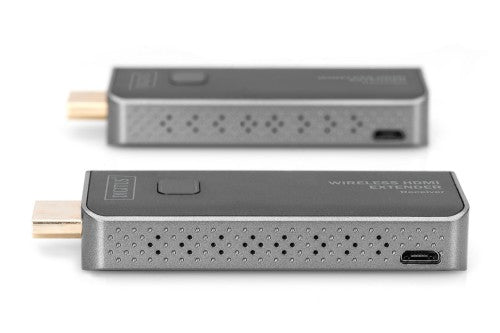

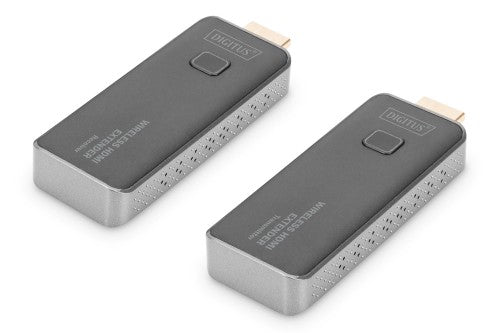

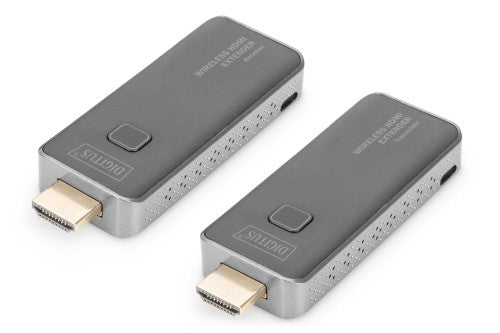

Wireless HDMI Extender Set, 50 m Dongle, 1 to 1, Full HD
- Wireless HDMI signal transmission up to 50 m (with a clear view)
- Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
- Supports resolutions up to Full HD (1080p / 60 Hz)
- Simple operation and handling thanks to Plug & Play - plug in and get started
- Power supply via micro USB
- Transmitter & receiver can be supplied with power via the HDMI connection of your device (> 500 mA required)
- AES 128 bit encryption
- WPA2 protocol
- The set is ideal for subsequent, spontaneous or short-term installations in meeting, conference and congress rooms
With the Wireless HDMI Extender Set, you can transmit HDMI video and audio signals wirelessly over a distance of up to 50 m in clear view. Operation and installation are child's play. Real plug & play - plug in and go. Transmitter & receiver can be powered via the HDMI port of your device (0.5A required), alternatively (additionally) with the supplied micro USB cable via the USB port of your notebook, PC, etc. Thanks to the compact design of the transmitter and receiver, it can be installed easily, quickly and individually - the perfect solution for meeting, conference or congress rooms. But it can also be used in the home for spontaneous or short-term installations.
Key Features
- Wireless HDMI signal transmission up to 50 m (unobstructed view)
- Supports resolutions up to 1920x1080p
- Radio channel: IEEE 802.11ac, 5 GHz, 2T2R
- HDMI version: 1.4
- HDCP version: 1.3
- Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)

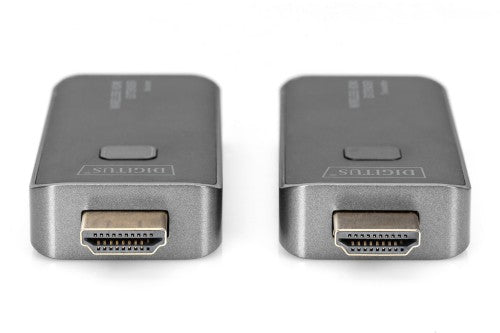

- Connections per unit: 1x HDMI plug, 1x micro-USB socket
- Power supply: HDMI socket (0.5A required) or via micro USB (DC 5V/0.5A)
- Connection button with LED status indicator
- Audio: Stereo, 16 bits / 48 KHz
- Latency: approx. 120 ms
- ABS housing
- Power consumption: 2.5W
- Compression: H.264
- Operating temperature: 0-40°C
- Dimensions (1 unit): L 8.3 x W 3.2 x H 1.3 cm
- Weight (1 unit): 27 g
- Color: Black
- The transmission distance with limited visibility cannot be determined across the board and depends on the conditions on site
- Walls, glass, etc. shorten the signal coverage or cause signal loss
Description
Transmits HDMI video and audio signals wirelessly in Full HD over a distance of up to 50 m in clear view- Wireless HDMI signal transmission up to 50 m (with a clear view)
- Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
- Supports resolutions up to Full HD (1080p / 60 Hz)
- Simple operation and handling thanks to Plug & Play - plug in and get started
- Power supply via micro USB
- Transmitter & receiver can be supplied with power via the HDMI connection of your device (> 500 mA required)
- AES 128 bit encryption
- WPA2 protocol
- The set is ideal for subsequent, spontaneous or short-term installations in meeting, conference and congress rooms
With the Wireless HDMI Extender Set, you can transmit HDMI video and audio signals wirelessly over a distance of up to 50 m in clear view. Operation and installation are child's play. Real plug & play - plug in and go. Transmitter & receiver can be powered via the HDMI port of your device (0.5A required), alternatively (additionally) with the supplied micro USB cable via the USB port of your notebook, PC, etc. Thanks to the compact design of the transmitter and receiver, it can be installed easily, quickly and individually - the perfect solution for meeting, conference or congress rooms. But it can also be used in the home for spontaneous or short-term installations.
Specifications
| Features | |
|---|---|
| Material | ABS synthetics |
| HDCP | Yes |
| Security algorithms | WPA2 |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 50 m |
| Audio system | stereo |
| LED indicators | Status |
| Product colour | Black |
| HDCP version | 1.3 |
| Technical details | |
| Material | ABS synthetics |
| HDCP | Yes |
| Wi-Fi | Yes |
| Security algorithms | WPA2 |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 50 m |
| Audio system | stereo |
| Product colour | Black |
| Connectivity technology | Wireless |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
| Package volume | 756.45 cm³ |
| Ports & interfaces | |
| USB ports quantity | 1 |
| Wi-Fi | Yes |
| USB connector type | Micro-USB |
| HDMI version | 1.4 |
| Connectivity technology | Wireless |
| Power | |
| Power over Ethernet (PoE) | No |
| Power consumption (typical) | 2.5 W |
| Indication | |
| LED indicators | Status |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 32 mm |
| Package depth | 123 mm |
| Height | 13 mm |
| Depth | 83 mm |
| Package width | 123 mm |
| Package height | 120 mm |
| Weight | 27 g |
| Package weight | 292.5 g |
| Packaging data | |
| Package depth | 123 mm |
| Package width | 123 mm |
| Package height | 120 mm |
| Package weight | 292.5 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | Micro-USB |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
