Description
Direct Thermal, 203 x 203 dpi, 177 mm/s, 8 MB Flash, 16 MB SDram, USB 2.0, RS-232 ( DB-9), Ethernet (RJ45)

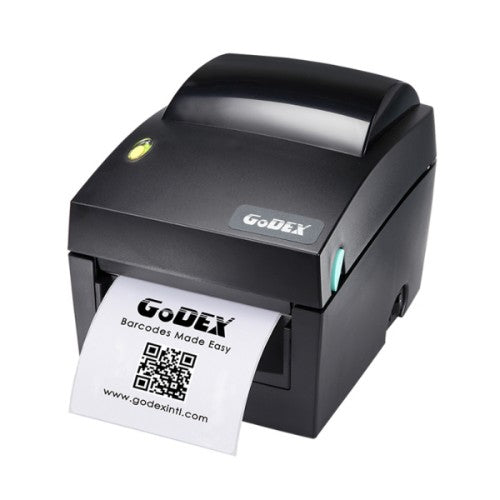

DT2x & DT4x are both ultra-light, compact for best space utilization and support multiple communication ports; they are effective and multitasking for printing retail, warehouses, logistic & transportation, health care labels and tags.
Key Features
- 16MB SDRAM and 4 MB Flash memory--including 2 MB user-available memory storage for downloadable objects
- Print speed: Up to 7"/177 mm per second

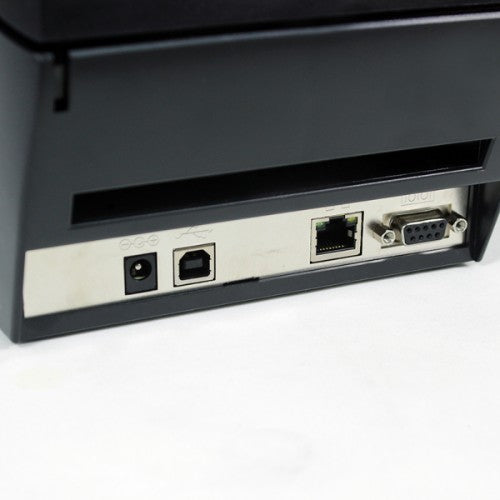

- Supports Ethernet, Serial and USB ports

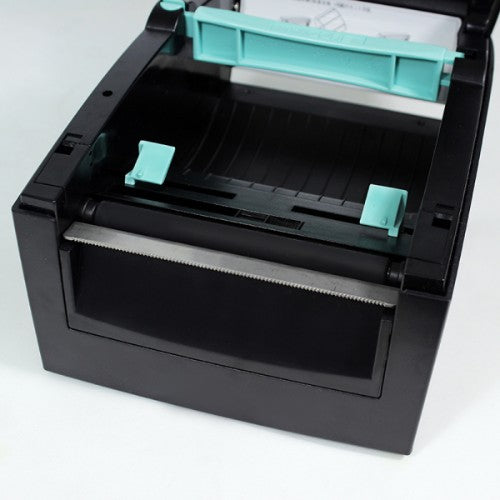

- Enhanced label feeding mechanism and instant label detection
- Free GoLabel label design software
Description
Discover how powerful a Simple of Compact Barcode Printer can beDT2x & DT4x are both ultra-light, compact for best space utilization and support multiple communication ports; they are effective and multitasking for printing retail, warehouses, logistic & transportation, health care labels and tags.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.8 cm |
| Printing | |
| Colour | No |
| Printing colours | Black |
| Print speed | 177 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.8 cm |
| Print technology | Direct thermal |
| Display | |
| Display | No |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 16 MB |
| Flash memory | 8 MB |
| Paper handling | |
| Supported paper width | 25.4 - 118 mm |
| Media thickness | 0.076 - 0.2 mm |
| Maximum roll diameter | 12.7 cm |
| Maximum label length | 1.727 m |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Connectivity technology | Wired |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Built-in barcodes | AZTECCODE, CODABAR (NW-7), China post, Codablock, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, ITF-14, Industrial 2/5, Interleaved 2/5, Logmars, MSI, Matrix 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, Standard 2/5, TELEPEN, TLC39, UPC-A, UPC-E |
| Tape cutting | Manual |
| Internal memory | 16 MB |
| Image formats supported | BMP, PCX |
| Flash memory | 8 MB |
| Certification | CE(EMC), FCC Class A, CB, cUL, EAC, KCC, CCC |
| Page description languages | EZPL, GDPL, GEPL, GZPL |
| Bitmap fonts | OCR-A, OCR-B |
| Design | |
| Display | No |
| Product colour | Black |
| Control type | Buttons |
| Built-in display | No |
| Certification | CE(EMC), FCC Class A, CB, cUL, EAC, KCC, CCC |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Technical details | |
| Product colour | Black |
| Built-in barcodes | AZTECCODE, CODABAR (NW-7), China post, Codablock, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, ITF-14, Industrial 2/5, Interleaved 2/5, Logmars, MSI, Matrix 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, Standard 2/5, TELEPEN, TLC39, UPC-A, UPC-E |
| Tape cutting | Manual |
| Maximum label length | 1.727 m |
| Image formats supported | BMP, PCX |
| Compliance certificates | CE |
| Certificates | |
| Certification | CE(EMC), FCC Class A, CB, cUL, EAC, KCC, CCC |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 30 - 85% |
| Weight & dimensions | |
| Width | 168 mm |
| Depth | 218 mm |
| Height | 166 mm |
| Weight | 1.44 kg |
