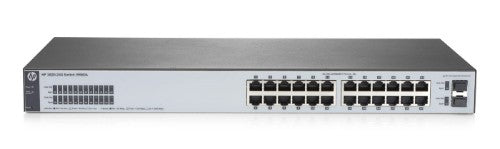

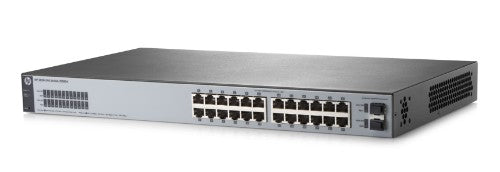

OfficeConnect 1820 24G Switch, Refurbished
Description
The HPE 1820 Switch Series offers more choice and flexibility for smaller organizations that require ease of use and lower Total Cost of Ownership (TCO), while delivering better network performance. They are smart-managed, fixed configuration, Gigabit Ethernet Layer 2 switches in an easy-to-administer solution that have the latest energy-saving capabilities. These switches are plug-and-play out of the box, where network operation can be fine-tuned through features available from a simple Web browser-based GUI, when needed.
Features
Easy-to-Use, Simple to Deploy and Manage
- The HPE 1820 Switch Series features an intuitive Web management interface with an enhanced navigation pane for easy management of devices by non-technical users. The HPE 1820 Switch Series is ideal for organizations that require simplicity.
- The series gives you flexibility and choice with a complete portfolio. You get six rack-mountable models including three non-Power over Ethernet (PoE) models. Some models include SFP ports for fiber connectivity.
- Customizable features include VLANs, Spanning Tree, Link aggregation trunking, and IGMP Snooping. All models include Rapid Spanning Tree Protocol (RSTP) and DSCP QoS policies.
- These switches support flexible installation options, including mounting on walls, under tables or on desk tops.
Some models are of a fan-less design, making them quiet for office deployments. Energy Efficiency and Lower TCO
- The HPE 1820 Switch Series include the latest energy-savings capabilities, including Energy Efficient Ethernet (IEEE), idle-port power down and PoE Port Scheduler.
- The 8-port Gigabit Ethernet model can be powered by an upstream PoE switch for environments where no line power is available.
Quality of Service (QoS)
- The HPE 1820 Switch Series traffic prioritization provides time sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or IEEE 802.1p classification. Packets are mapped to eight hardware queues for more effective throughput.
- Broadcast control allows limiting of broadcast traffic rate, to reduce unwanted network broadcast traffic.
- IEEE 802.11p/Q delivers data to devices based on the priority and type of traffic.
Specifications
| Ports & interfaces |
|---|
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| IGMP snooping |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Performance |
|---|
| Packet buffer memory |
1.5 MB |
| Stackable |
Yes |
| Processor frequency |
400 MHz |
| Memory type |
SDRAM |
| Internal memory |
128 MB |
| Flash memory |
16 MB |
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A9 |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
Grey |
| Stackable |
Yes |
| Processor frequency |
400 MHz |
| Rack mounting |
Yes |
| Built-in processor |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Management features |
|---|
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Data transmission |
|---|
| Throughput |
38.6 Mpps |
| Latency (10-100 Mbps) |
7 µs |
| Latency (1 Gbps) |
2 µs |
| Packet buffer memory |
1.5 MB |
| MAC address table |
8000 entries |
| Switching capacity |
52 Gbit/s |
| Jumbo frames support |
Yes |
| Security |
|---|
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP client |
| Memory |
|---|
| Packet buffer memory |
1.5 MB |
| Memory type |
SDRAM |
| Internal memory |
128 MB |
| Flash memory |
16 MB |
| Design |
|---|
| Form factor |
1U |
| Product colour |
Grey |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Power |
|---|
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
22 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
15 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
15 - 95% |
| Weight & dimensions |
|---|
| Width |
442.5 mm |
| Depth |
246.1 mm |
| Height |
43.9 mm |
| Weight |
2.72 kg |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
