1920x1080, CMOS, 0.1 lux, IP51, 3x 5MP
Key Features
- 10x optical zoom with HDTV 1080p; 3x 5 MP sensors for situational awareness; Covers indoor areas up to 400 m2 (4300 ft2); Total overview, zoomed-in details; Z-Wave for smart home devices
Description

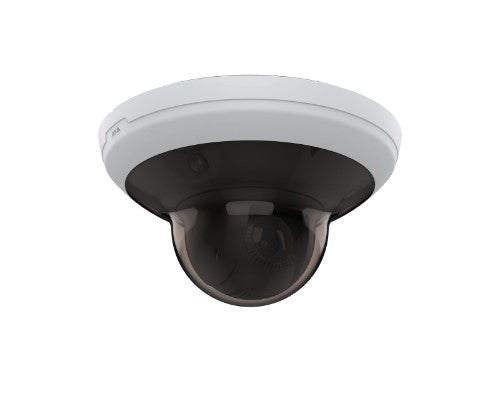

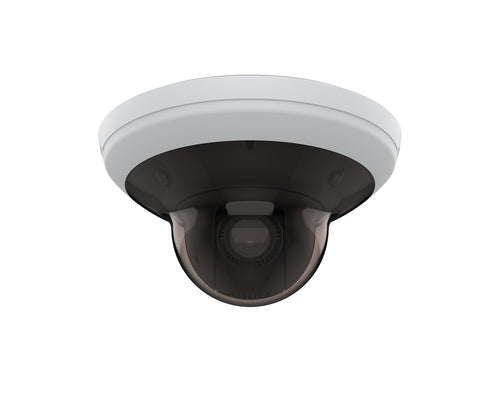

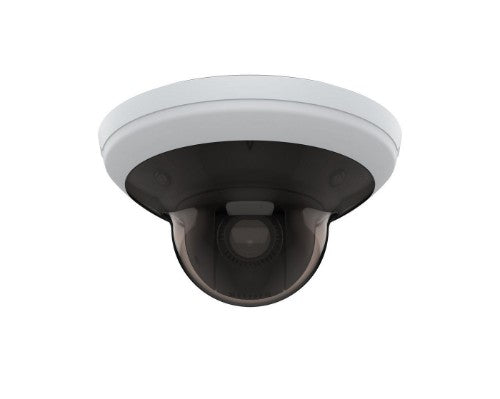

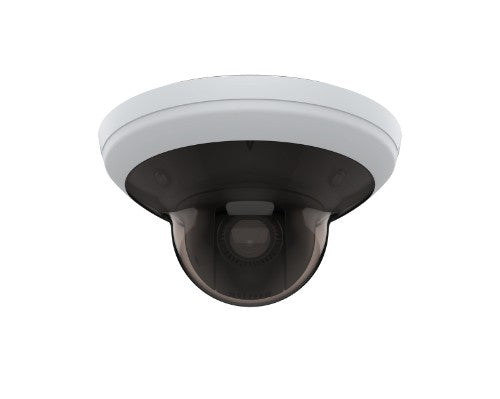

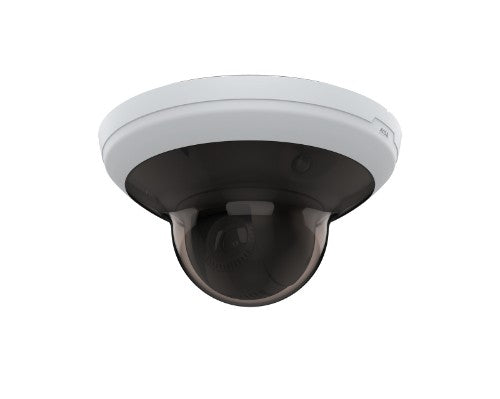

AXIS M5000-G PTZ Camera features three 5 MP sensors and one PTZ camera with 10x optical zoom for total situational awareness of indoor areas up to 400 m2 (4300 ft2). With everything displayed on one monitor, you can move from overview to detailed views in a single click. It offers wireless I/O connectivity with Z-Wave Plus® devices to communicate with up to six devices in a system setup for instance monitor temperatures in freezers or turn lights on/off. With AXIS M5000-G, you get the benefits of four cameras while installing just one camera.
Specifications
| Performance |
|---|
| Number of languages |
12 |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Type |
IP security camera |
| Connectivity technology |
Wired & Wireless |
| PTZ control |
Yes |
| Placement supported |
Indoor & outdoor |
| Wide Dynamic Range (WDR) |
Yes |
| Day/night mode |
Yes |
| Certification |
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2,
VCCI Class A, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A) |
| Design |
|---|
| Form factor |
Dome |
| Product colour |
Black, White |
| Mounting type |
Ceiling/wall |
| International Protection (IP) code |
IP51 |
| Camera |
|---|
| Minimum illumination |
0.1 lx |
| Tilt angle range |
0 - 180° |
| Pan range |
0 - 360° |
| Camera shutter speed |
1/66500 - 2 s |
| Camera pan control |
Yes |
| Camera tilt control |
Yes |
| Progressive scan |
Yes |
| Image sensor |
|---|
| Sensor type |
CMOS |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors |
1 |
| Panoramic camera |
|---|
| Viewing angle, vertical (panoramic camera) |
36.3° |
| Viewing angle, horizontal (panoramic camera) |
61.8° |
| Focal length range (panoramic camera) |
4.7 - 47 mm |
| Lens system |
|---|
| Number of lenses |
3 |
| Zoom capability |
Yes |
| Optical zoom |
10x |
| Digital zoom |
12x |
| Night vision |
|---|
| Night vision |
Yes |
| Video |
|---|
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
Yes |
| Gain control type |
Auto |
| Bit rate control |
Variable Bit Rate (VBR) |
| Maximum resolution |
1920 x 1080 pixels |
| Video formats supported |
H.264, H.265, M-JPEG |
| Frame rate |
30 fps |
| Video streaming |
Yes |
| Total megapixels |
5 MP |
| Audio |
|---|
| Audio detection |
Yes |
| Network |
|---|
| Bluetooth |
No |
| Networking standards |
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Quality of Service (QoS) support |
Yes |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Storage |
|---|
| Built-in HDD |
No |
| Compatible memory cards |
SD, SDHC, SDXC |
| Internal memory |
2048 MB |
| Flash memory |
512 MB |
| Ports & interfaces |
|---|
| Terminal block port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired & Wireless |
| Security |
|---|
| Alert notification type |
E-mail |
| Video motion detection |
Yes |
| Security algorithms |
802.1x RADIUS |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Password protection |
Yes |
| Pixel counter |
Yes |
| Digest authentication |
Yes |
| Power |
|---|
| Power source type |
PoE |
| Power consumption (max) |
13.4 W |
| Power consumption (typical) |
7.6 W |
| Certificates |
|---|
| Certification |
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2,
VCCI Class A, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
10 - 85 °C |
| Operating relative humidity (H-H) |
-40 - 65% |
| Storage relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Height |
138 mm |
| Diameter |
24.7 cm |
| Weight |
1.95 kg |
| Packaging content |
|---|
| Number of cameras |
1 |
| Manual |
Yes |
| Drilling template included |
Yes |
