Description
2592x1944, 25/30 fps, 1/2.7, CMOS, PoE, IP66, IK10, 900 g
Key Features
- Analytics with deep learning; Audio and I/O connectivity; Built-in cybersecurity features; Excellent image quality in 5 MP; Lightfinder 2.0, Forensic WDR, and OptimizedIR
Description

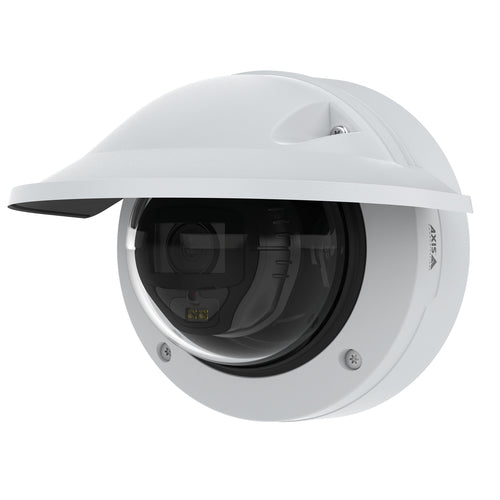

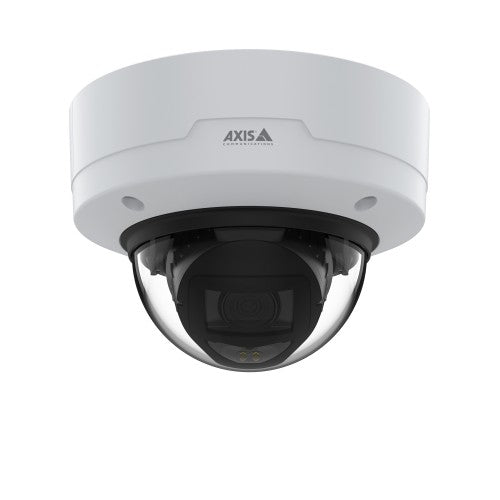

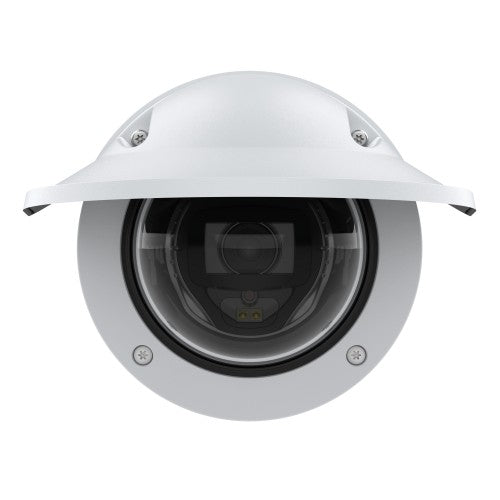

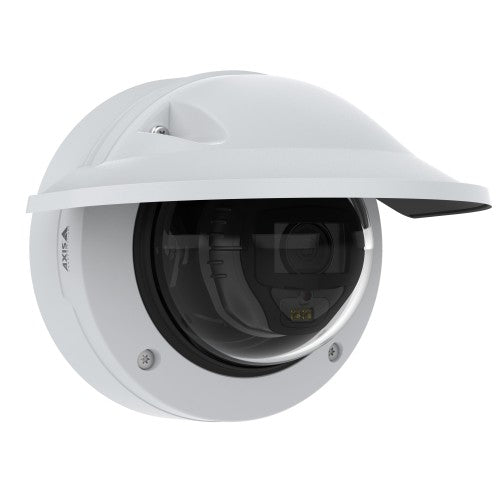

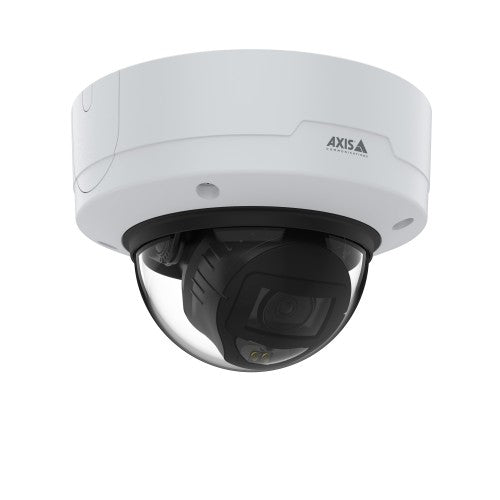

Featuring Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS P3267-LVE delivers excellent image quality under any light conditions. Based on the latest Axis system-on-chip (SoC), it includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Featuring audio and I/O connectivity, you can integrate equipment and extend the value of your system. Furthermore, this robust, IK10-rated, outdoor-ready camera includes built-in cybersecurity to help prevent unauthorized access and safeguard your system.Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66 |
| Housing material | Polycarbonate (PC) |
| Camera | |
| Minimum illumination | 0.13 lx |
| Tilt angle range | -10 - 80° |
| Pan range | -190 - 190° |
| Angle of rotation | 190° |
| Camera shutter speed | 1/33500 - 1/5 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Zoom capability | Yes |
| Normal focusing range | 1 m |
| Focal length range | 3 - 8 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Gain control type | Auto |
| Smart IR | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 2592 x 1944 pixels |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 5 MP |
| Video recording | Yes |
| Audio | |
| Audio detection | Yes |
| Network | |
| Bluetooth | No |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 2048 MB |
| Flash memory | 8192 MB |
| Ports & interfaces | |
| Terminal block port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 12.1 W |
| Power consumption (typical) | 6.4 W |
| Certificates | |
| Certification | EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 107 mm |
| Diameter | 14.9 cm |
| Weight | 900 g |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Drilling template included | Yes |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
