Description
9 dBI, 0.617 - 0.96 / 1.71 - 6GHz, IP66, Black

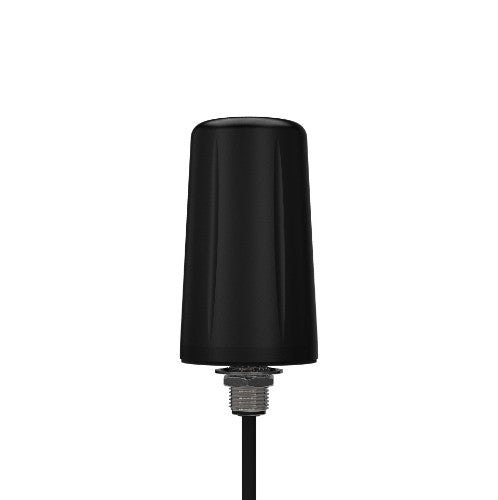

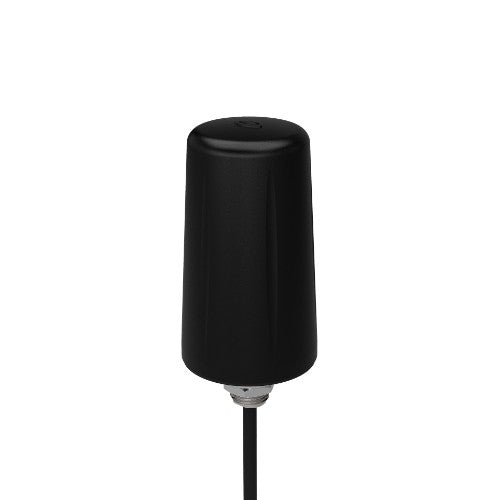

The LPB-6-60 antenna is a cost effective Omni-directional panel mount antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz. The LPB-6-60 is supplied with integrated 5mm double shielded CS29 coaxial cable and is available with a wide variety of connectors fitted. This Antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. This LPB-6-60 requires a conductive ground plane of >300mm (1′) diameter for optimal performance or it can be bracket mounted (p/n B4BE-6-60).
Description
DescriptionThe LPB-6-60 antenna is a cost effective Omni-directional panel mount antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz. The LPB-6-60 is supplied with integrated 5mm double shielded CS29 coaxial cable and is available with a wide variety of connectors fitted. This Antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. This LPB-6-60 requires a conductive ground plane of >300mm (1′) diameter for optimal performance or it can be bracket mounted (p/n B4BE-6-60).
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 9 dBi |
| Frequency band | 0.617 - 0.96 / 1.71 - 6 GHz |
| Gain | 9 dBi |
| Features | |
| International Protection (IP) code | IP66 |
| Connector gender | Male |
| Antenna type | Omni-directional antenna |
| Product colour | Black |
| Cable length | 5 m |
| Antenna connector type | SMA |
| Antenna gain level (max) | 9 dBi |
| Frequency band | 0.617 - 0.96 / 1.71 - 6 GHz |
| Gain | 9 dBi |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Width | 48 mm |
| Depth | 48 mm |
| Height | 82 mm |
| Technical details | |
| Antenna gain level (max) | 9 dBi |
| Frequency band | 0.617 - 0.96 / 1.71 - 6 GHz |
| Antenna type | Omni-directional antenna |
| Gain | 9 dBi |
| Cable length | 5 m |
| Antenna connector type | SMA |
| Colour | |
| Product colour | Black |
