Description
QCA9531 650 MHz, 64 MB RAM, 16 MB FLASH, 18 W, 802.3af/at, 802.11b/g/n, 300 Mbit/s, Wi-Fi 4, RS485
KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT.
You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors, such as electricity meters and relays.
It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and liquid sensors with only a few megabytes per day!
KNOT features so many protocol support and connectivity options:

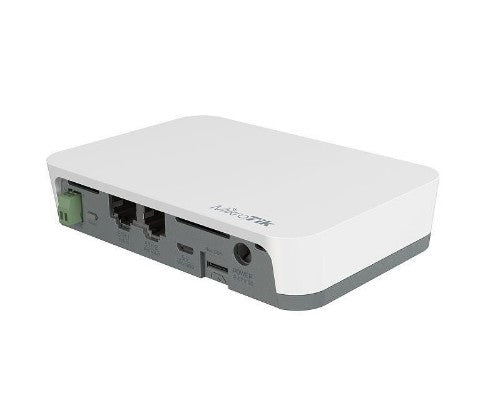

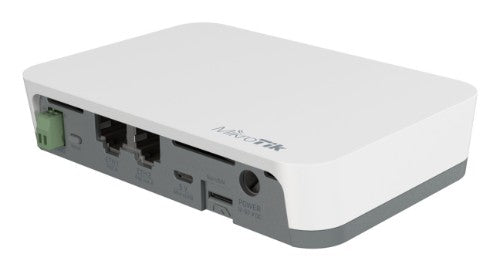

2.4 GHz wireless, Bluetooth, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!
With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format.
It has powerful filters for forwarding only relevant packets and ignoring others.

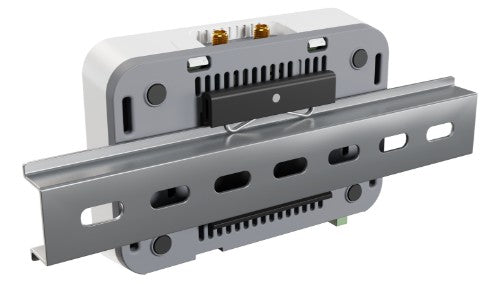

KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on.
Bring flexible low-cost connectivity to the most remote or tricky areas with the MikroTik KNOT!
Description
The newest addition to the MikroTik IoT product family – KNOT – is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe.KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT.
You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors, such as electricity meters and relays.
It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and liquid sensors with only a few megabytes per day!
KNOT features so many protocol support and connectivity options:
2.4 GHz wireless, Bluetooth, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!
With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format.
It has powerful filters for forwarding only relevant packets and ignoring others.
KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on.
Bring flexible low-cost connectivity to the most remote or tricky areas with the MikroTik KNOT!
Specifications
| Design | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| Mounting type | DIN-rail |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Features | |
| Antenna gain level (max) | 1.5 dBi |
| Built-in processor | Yes |
| Processor frequency | 650 MHz |
| Number of processors installed | 1 |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 650 MHz |
| Number of processors installed | 1 |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Processor model | QCA9531 |
| Certification | CE, FCC, IC, EAC, ROHS |
| Mounting type | DIN-rail |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Data transmission | |
| Forwarding rate | 300 Mpps |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,100 Mbit/s |
| WLAN data transfer rates supported | 300 Mbit/s |
| Wi-Fi | Yes |
| Wireless connection | Yes |
| Cabling technology | 10/100Base-T(X) |
| Forwarding rate | 300 Mpps |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Micro-USB 2.0 ports quantity | 1 |
| SIM card type | NanoSIM |
| SIM card slot | Yes |
| Serial interface type | RS-485 |
| Power | |
| Power consumption (typical) | 18 W |
| Power over Ethernet (PoE) | Yes |
| Software | |
| Compatible operating systems | RouterOS |
| Weight & dimensions | |
| Width | 122 mm |
| Height | 26 mm |
| Depth | 87 mm |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Technical details | |
| Built-in processor | Yes |
| WLAN data transfer rates supported | 300 Mbit/s |
| Wi-Fi | Yes |
| Wireless connection | Yes |
| Processor frequency | 650 MHz |
| Number of processors installed | 1 |
| Antenna gain level (max) | 1.5 dBi |
| Harmonized System (HS) code | 85176990 |
| Memory | |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Certificates | |
| Certification | CE, FCC, IC, EAC, ROHS |
| Antenna | |
| Antenna gain level (max) | 1.5 dBi |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
