Description

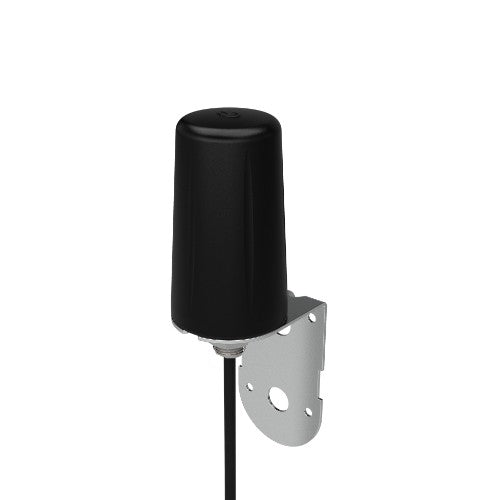

B4BE-6-60 | Bracket Mount 4G/5G Antenna
The B4BE range has been designed to provide cost effective coverage booster antennas for 2G/3G/4G and 5G devices. The antennas are designed for wall or mast mounting and are weather proof which allows the device to reap the benefits of an antenna mounted in an elevated or external location where the signal is strongest.
The omni-directional radiation pattern allows the antenna to be quickly installed while the global Cellular/GSM/LTE coverage provided by the antenna allows it to be utilised for 2G/3G/4G and 5G applications the world over.
The antenna range is supplied in two variants the B4BE-6-60 is fitted with 5mm double shielded CS29 cable and the B4BEE-6-60 variant is fitted with 2.8mm RG174 cable,
Description
The Panorama B4BE is a robust bracket mount antenna for LTE, M2M and IoT applications.The B4BE range has been designed to provide cost effective coverage booster antennas for 2G/3G/4G and 5G devices. The antennas are designed for wall or mast mounting and are weather proof which allows the device to reap the benefits of an antenna mounted in an elevated or external location where the signal is strongest.
The omni-directional radiation pattern allows the antenna to be quickly installed while the global Cellular/GSM/LTE coverage provided by the antenna allows it to be utilised for 2G/3G/4G and 5G applications the world over.
The antenna range is supplied in two variants the B4BE-6-60 is fitted with 5mm double shielded CS29 cable and the B4BEE-6-60 variant is fitted with 2.8mm RG174 cable,
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 5 dBi |
| Frequency band | 0.617 - 6 GHz |
| Impedance | 50 Ω |
| Features | |
| Housing material | Acrylonitrile styrene acrylate (ASA), Aluminium |
| International Protection (IP) code | IP66 |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2.5:1 |
| Polarization | Vertical polarization |
| Mounting | Universal |
| Product colour | Black |
| Cable length | 2 m |
| Antenna connector type | SMA |
| Antenna gain level (max) | 5 dBi |
| Frequency band | 0.617 - 6 GHz |
| Impedance | 50 Ω |
| Weight & dimensions | |
| Height | 164 mm |
| Diameter | 4.8 cm |
| Technical details | |
| Antenna gain level (max) | 5 dBi |
| Frequency band | 0.617 - 6 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2.5:1 |
| Polarization | Vertical polarization |
| Mounting | Universal |
| Impedance | 50 Ω |
| Cable length | 2 m |
| Antenna connector type | SMA |
| Colour | |
| Product colour | Black |
