305m max., USB type C, 800 x 480 color capacitive multi-touch
Description

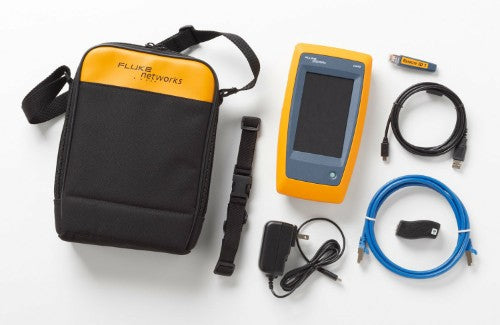

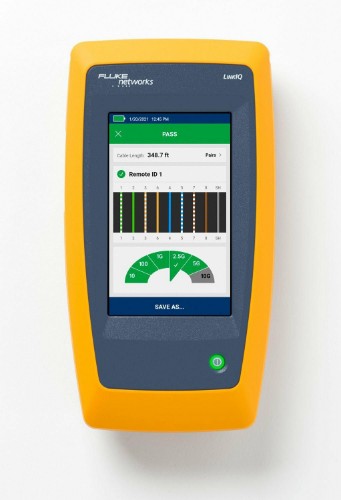

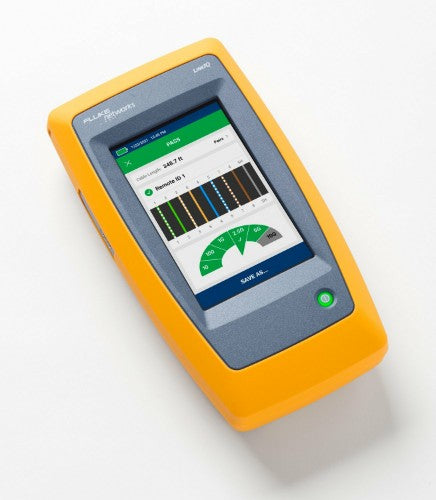

The LinkIQ™ Network+Cable Tester is designed to provide trusted cable testing along with network testing professionals need to do their jobs. LinkIQ™ validates cable performance (up to 10 Gig) using frequency-based measurements and provides distance to fault information along with a wire map of the cable under test. The LinkIQ™ also performs nearest switch diagnostics to identify key network issues and validate switch configuration eliminating the need of using another device. Additional features include, Analog and Digital Toning, Port Blink, 802.1x authentication, Remote Office Locators, and the ability to manage results via LinkWare™ PC.
Specifications
| Technical details |
|---|
| Product type |
Twisted pair cable tester |
| Supported connectors |
RJ-45,USB |
| Built-in display |
Yes |
| USB port |
Yes |
| Maximum cable length |
305 m |
| Weight & dimensions |
|---|
| Width |
106 mm |
| Height |
215.9 mm |
| Weight |
624 g |
| Power |
|---|
| Battery voltage |
3.6 V |
| Battery type |
Built-in battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
6400 mAh |
| Charging time |
4.5 min |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
0 - 90% |
