Description

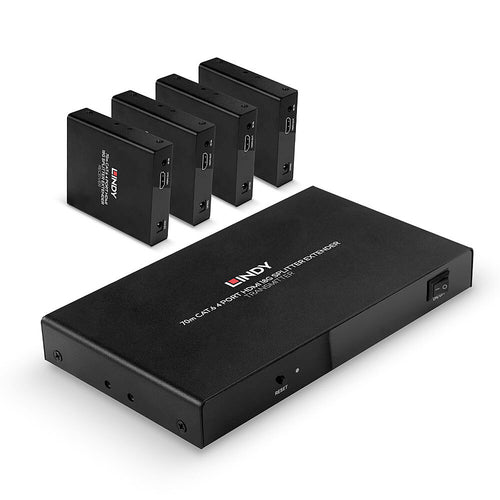

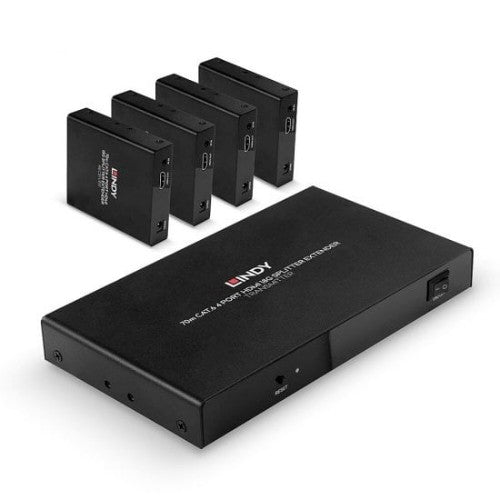

70m Cat.6 4 Port HDMI 4K60 Splitter Extender
Scalable Content DistributionThis Cat.6 splitter allows for distribution to up 4 remote locations using the included receivers, at up to 70m in distance, ideal for sharing content simultaneously in sports bars or events. The local HDMI output on the splitter allows for monitoring using a connected display, or alternatively can be combined with up to 2 additional Cat.6 splitters for even larger scale content distribution.
Immersive 4K and HDR SupportWith support for resolutions up to 3840x2160@60Hz, this splitter ensures superior clarity of high-quality video, including movies, sports, games, or live monitoring. HDR support ensures a much wider colour gamut is visualised, alongside a higher peak brightness and deeper blacks for an enhanced dynamic contrast. This provides an eye-catching and engaging experience for the viewer in a variety of different applications including digital signage in retail, content delivery in lecture halls, or information broadcasting in travel hubs.
Seamless IR ControlThe included IR cables allow for simple control via an IR remote from any of the receiver locations, removing the need to be situated at the source side on the setup.
Simultaneous PoC DistributionThe Cat.6 HDMI 4K60 Splitter also support PoC (Power over cable) allowing for power to be distributed alongside audio and video over the cat.6 cabling. This allows for only one power source being required at the transmitter side, ensuring a minimalist and time-saving setup at the receiver locations.
Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.
Key Features
- Distribute 4K HDMI signals to up to 4 displays in multiple locations
- Supports resolutions up to 4K@60Hz, with additional support for HDR
- Features a loop-through HDMI output on the transmitter for local monitoring or cascading for larger installs
- Supports Power over Cable (PoC) to the receivers, only a single power supply is required for operation
Description
The Lindy 70m Cat.6 4 Port HDMI 4K60 Splitter Extender is a simple, professional solution for distribution of 4K HDMI signals to multiple displays using standard Cat.6 network cables.Scalable Content DistributionThis Cat.6 splitter allows for distribution to up 4 remote locations using the included receivers, at up to 70m in distance, ideal for sharing content simultaneously in sports bars or events. The local HDMI output on the splitter allows for monitoring using a connected display, or alternatively can be combined with up to 2 additional Cat.6 splitters for even larger scale content distribution.
Immersive 4K and HDR SupportWith support for resolutions up to 3840x2160@60Hz, this splitter ensures superior clarity of high-quality video, including movies, sports, games, or live monitoring. HDR support ensures a much wider colour gamut is visualised, alongside a higher peak brightness and deeper blacks for an enhanced dynamic contrast. This provides an eye-catching and engaging experience for the viewer in a variety of different applications including digital signage in retail, content delivery in lecture halls, or information broadcasting in travel hubs.
Seamless IR ControlThe included IR cables allow for simple control via an IR remote from any of the receiver locations, removing the need to be situated at the source side on the setup.
Simultaneous PoC DistributionThe Cat.6 HDMI 4K60 Splitter also support PoC (Power over cable) allowing for power to be distributed alongside audio and video over the cat.6 cabling. This allows for only one power source being required at the transmitter side, ensuring a minimalist and time-saving setup at the receiver locations.
Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.
Specifications
| Features | |
|---|---|
| Material | Metal |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Propositon 65 |
| Audio formats supported | LPCM |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 70 m |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Chipset | GSV2006, GSV5100 |
| Extended display identification data (EDID) | Yes |
| HDCP version | 2.2 |
| Technical details | |
| Material | Metal |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Propositon 65 |
| Package type | Box |
| Audio formats supported | LPCM |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 70 m |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |

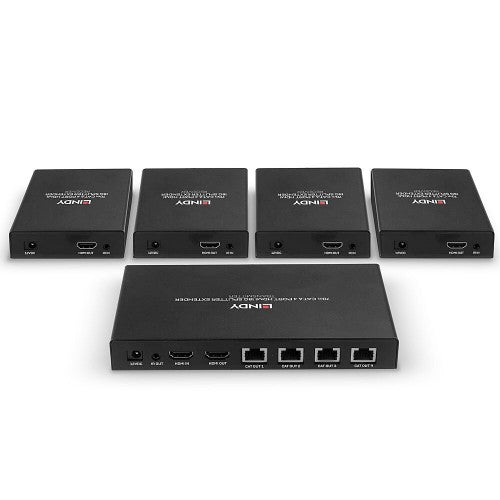

| Ports & interfaces | |
| Remote (IR) output | 1 |
| Remote (IR) input | 4 |
| RJ-45 input ports | 4 |
| RJ-45 output ports | 4 |
| HDMI in | 1 |
| Number of HDMI outputs | 5 |
| HDMI version | 2.0 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Receiver weight | 199 g |
| Transmitter weight | 390 g |
| Transmitter dimensions (WxDxH) | 180 x 103 x 23 mm |
| Receiver dimensions (WxDxH) | 100 x 88 x 23 mm |
| Package depth | 60 mm |
| Package width | 423 mm |
| Package height | 354 mm |
| Package weight | 2 kg |
| Packaging data | |
| Package type | Box |
| Package depth | 60 mm |
| Package width | 423 mm |
| Package height | 354 mm |
| Package weight | 2 kg |

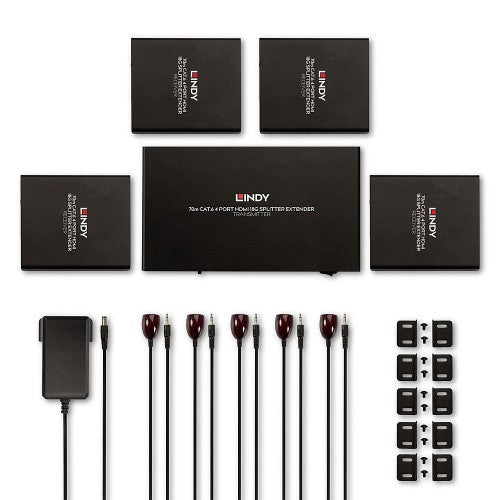

| Packaging content | |
| Mounting brackets included | Yes |
| Cables included | IR, IR sensor |
| Manual | Yes |
