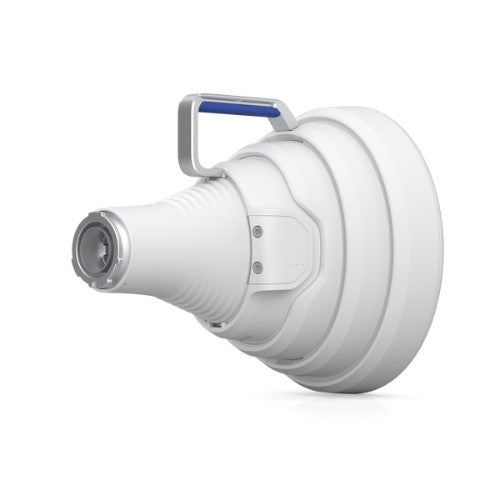

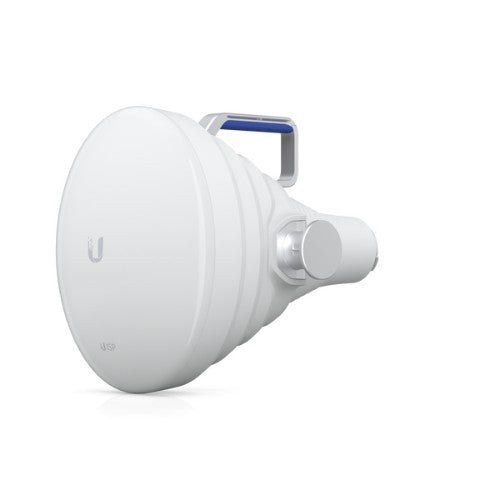

High-isolation, point-to-multipoint (PtMP) horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz)
Key Features
- High-isolation 30° horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz)
- Low backlobes for device co-location
- 15+ km PtMP link range
- Die-cast, UV-stabilized polycarbonate enclosure for enhanced durability and weatherproofing

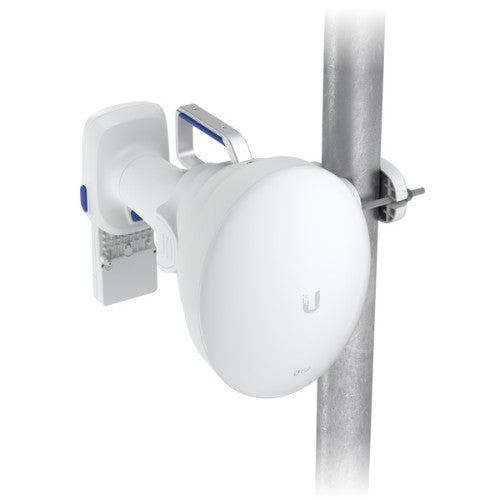

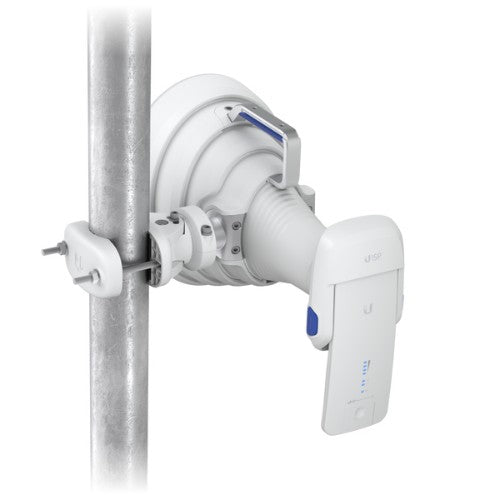

- Pole-mountable antenna with a metal carrying handle

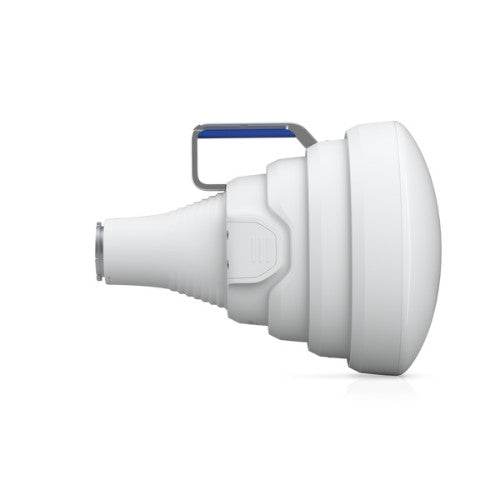

- Two side latches for secure, snap-in radio connection
Description

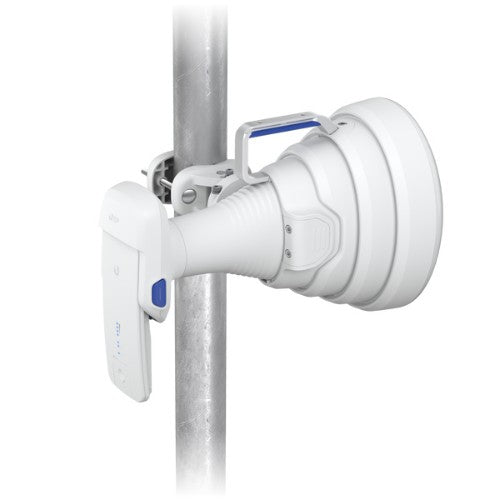

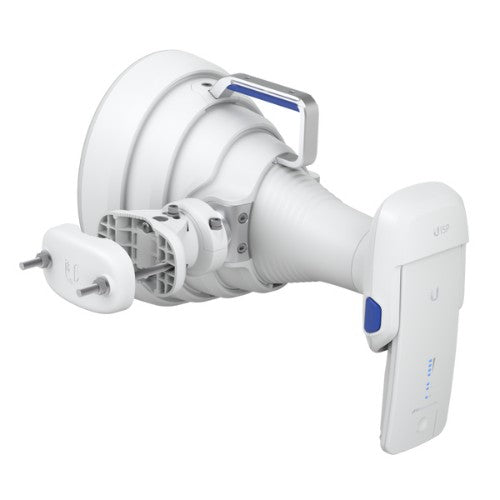

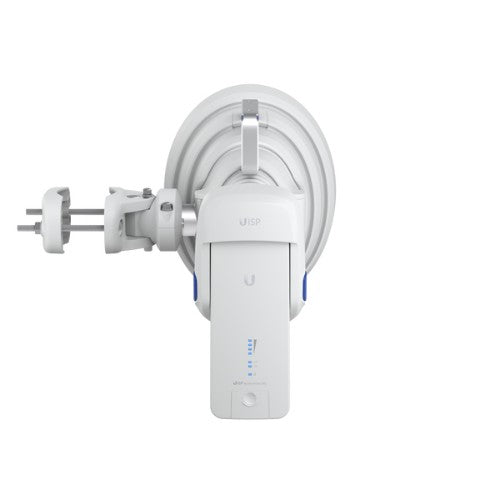

The UISP® Horn is an efficient PtMP antenna that provides high isolation within congested environments by utilizing its wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber 5XHD Radio (AF 5XHD), LTU Rocket , or airMAX Rocket Prism AC 5 GHz Radio (RP 5AC) to amplify their signal. The UISP Horn also has a latch on each side for secure, snap-in radio connection. Operation frequency may vary based on regional radio frequencies and regulations.
Specifications
| Performance |
|---|
| Antenna gain level (max) |
19.5 dBi |
| Frequency band |
5.15 - 6.875 GHz |
| Vertical beam width |
25° |
| Horizontal beam width |
30° |
| Features |
|---|
| Ultraviolet (UV) resistant |
Yes |
| Survival wind speed |
200 km/h |
| Housing material |
Aluminium, Polycarbonate (PC) |
| Mounting pipe |
25 - 70 mm |
| Isolation |
20 dB |
| International Protection (IP) code |
IPX6 |
| Wind load |
90 |
| Antenna gain level (max) |
19.5 dBi |
| Frequency band |
5.15 - 6.875 GHz |
| Antenna type |
Horn antenna |
| Vertical beam width |
25° |
| Purpose |
Outdoor |
| Polarization |
Dual polarization |
| Mounting |
Pole |
| Horizontal beam width |
30° |
| Product colour |
White |
| Compatible products |
airFiber 5XHD Radio (AF 5XHD), LTU Rocket, or airMAX Rocket Prism AC 5 GHz Radio (RP 5AC) |
| Technical details |
|---|
| Antenna gain level (max) |
19.5 dBi |
| Frequency band |
5.15 - 6.875 GHz |
| Antenna type |
Horn antenna |
| Vertical beam width |
25° |
| Purpose |
Outdoor |
| Polarization |
Dual polarization |
| Mounting |
Pole |
| Horizontal beam width |
30° |
| Compatible products |
airFiber 5XHD Radio (AF 5XHD), LTU Rocket, or airMAX Rocket Prism AC 5 GHz Radio (RP 5AC) |
| Colour |
|---|
| Product colour |
White |
| Weight & dimensions |
|---|
| Weight |
3.06 kg |
| Width |
224 mm |
| Depth |
380 mm |
| Height |
282 mm |
| Packaging content |
|---|
| Mounting kit |
Yes |
