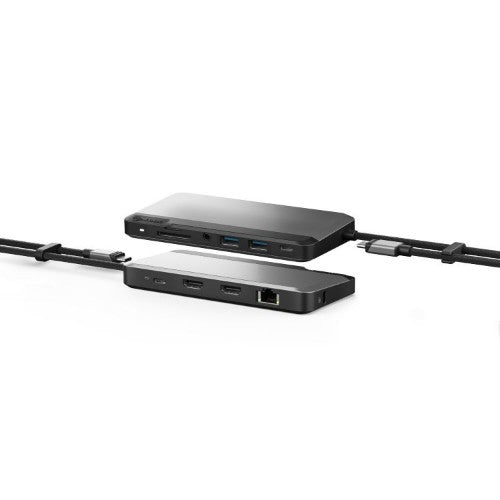

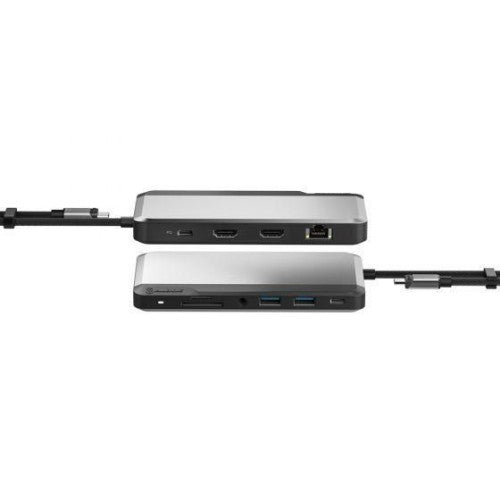

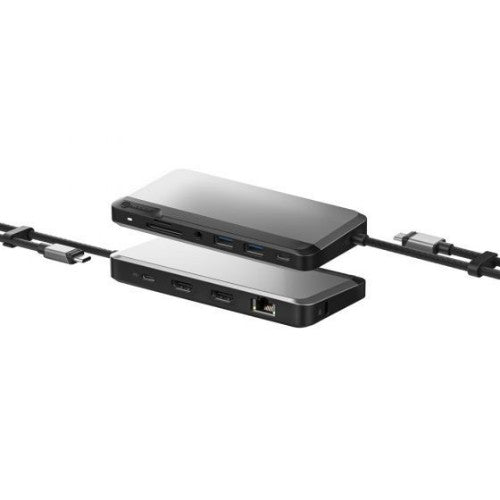

USB-C Dual Display Dock – MX2 Lite HDMI Edition
Ports for a Better Desk Many modern laptops are missing the ports professionals need to connect essential USB accessories and displays at their desk. With the nine-port MX2 on your desk, you can connect two pristine HDMI-enabled computer monitors for multi-screen activities. You can run all your standard IT peripherals, including keyboard, mouse, printer and phone. Transfer files from your SD and MicroSD card. Play back audio over headphones while you work and connect to Ethernet when you need a reliable connection for activities such as video conferencing.
Full HD for Focused Work
It’s Clearer in Full HD The MX2 features two HDMIports for dual Full HD [@60Hz] displays on Windows laptops and desktops [with USB-C or Thunderbolt 3&4 with video output] *Dual displays save you time otherwise squandered on toggling between applications on single screens. MX2 users also benefit from sharp display resolutions for visually detailed tasks such as image editing and design and layout work. *See resolution support table below for full details of the resolutions and video outputs your computer is capable of.
A Featherweight Dock for Heavyweight Performance
Ports. Power. Portability. The MX2 weighs just 138 grams and occupies less space than a mobile phone. With premium metal alloy casing, the warranty-backed dock is a smart choice for households who need a take-anywhere dock for home, office and on the go.
Key Features
- ALOGIC’s USB-C Dual Display Dock [MX2 Lite HDMI Edition] is a nimble dock featuring the ports and power Windows users need for a highly-connected work space
- Laptop users can plug into the dock to run multiple external HDMI monitors and a full suite of desk peripherals, all while fast-charging their laptop
Description
Ten Ways to Enhance Your WorkspacePorts for a Better Desk Many modern laptops are missing the ports professionals need to connect essential USB accessories and displays at their desk. With the nine-port MX2 on your desk, you can connect two pristine HDMI-enabled computer monitors for multi-screen activities. You can run all your standard IT peripherals, including keyboard, mouse, printer and phone. Transfer files from your SD and MicroSD card. Play back audio over headphones while you work and connect to Ethernet when you need a reliable connection for activities such as video conferencing.
Full HD for Focused Work
It’s Clearer in Full HD The MX2 features two HDMIports for dual Full HD [@60Hz] displays on Windows laptops and desktops [with USB-C or Thunderbolt 3&4 with video output] *Dual displays save you time otherwise squandered on toggling between applications on single screens. MX2 users also benefit from sharp display resolutions for visually detailed tasks such as image editing and design and layout work. *See resolution support table below for full details of the resolutions and video outputs your computer is capable of.
A Featherweight Dock for Heavyweight Performance
Ports. Power. Portability. The MX2 weighs just 138 grams and occupies less space than a mobile phone. With premium metal alloy casing, the warranty-backed dock is a smart choice for households who need a take-anywhere dock for home, office and on the go.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| Microphone in | No |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 85 W |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Product colour | Grey |
| Card reader integrated | Yes |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| LED indicators | Yes |
| Compatible memory cards | SD |
| Maximum refresh rate | 60 Hz |
| Technical details | |
| Product colour | Grey |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Weight | 138 g |
| Width | 62 mm |
| Depth | 139 mm |
| Height | 16.3 mm |
| Design | |
| Product colour | Grey |
| Cable lock slot | Yes |
| LED indicators | Yes |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
