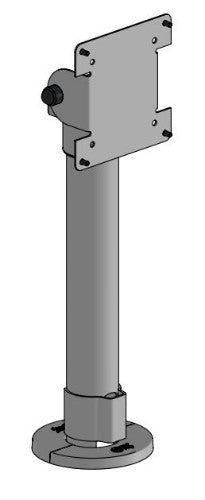

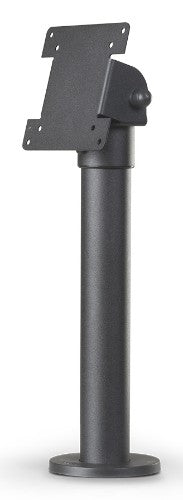

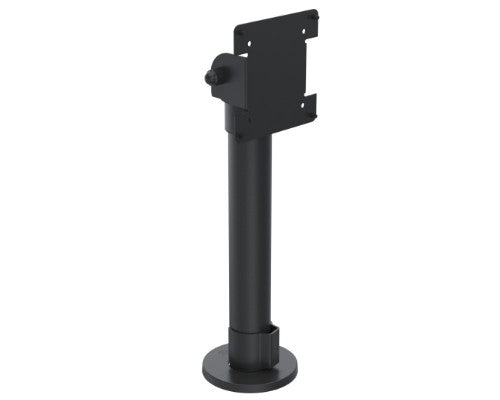

VESA 75/100 Pole Mount, Top Screen Mount
Key Features
- Compatible with VESA 75 and VESA 100 mounting hole patterns
- Enhances workstation productivity by enabling optimal screen placement within the operator's eyeline
- 5-year warranty
Description
The top mount is used when the solution requires space for the attachment of other peripherals such as a swing arm for a printer or payment terminal to the SpacePole – in addition to the screen. This type of mounting solution is particularly useful where the actual space on the counter itself is limited. Raising the technology above the counter frees up any space that is available.
Specifications
| Features |
|---|
| Product type |
POS mount |
| Product colour |
White |
| Material |
Metal |
| Minimum VESA mount |
75 x 75 mm |
| Maximum VESA mount |
100 x 100 mm |
| Angle of rotation |
210° |
| Tilt angle range |
10 - 70° |
| Cable management |
Yes |
| Minimum screen size |
27.9 cm (11") |
| Maximum screen size |
68.6 cm (27") |
| Height adjustment |
No |
| Display |
|---|
| Built-in display |
No |
| Weight & dimensions |
|---|
| Width |
115 mm |
| Depth |
103.6 mm |
| Height |
390.8 mm |
| Weight |
5.91 kg |
| Package width |
130 mm |
| Package depth |
600 mm |
| Package height |
130 mm |
| Package weight |
6.21 kg |
| Packaging data |
|---|
| Package width |
130 mm |
| Package depth |
600 mm |
| Package height |
130 mm |
| Package weight |
6.21 kg |
| Technical details |
|---|
| Pallet net width |
80 cm |
| Pallet net weight |
918.6 kg |
| Pallet net height |
171 cm |
| Pallet net length |
120 cm |
| Compliance certificates |
REACH |
| Version |
1.0 |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
8473308000 |
