Description

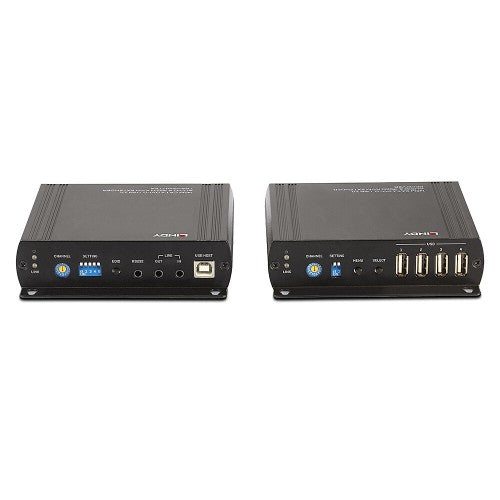

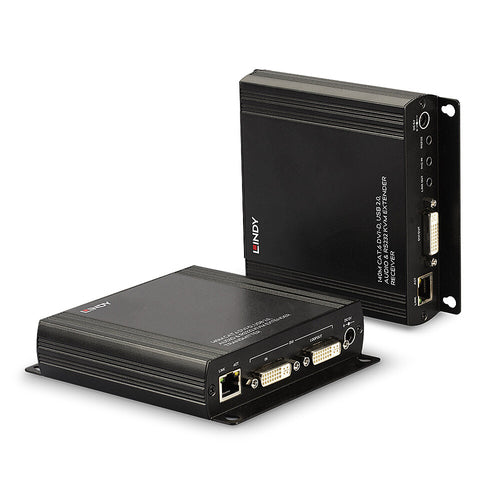

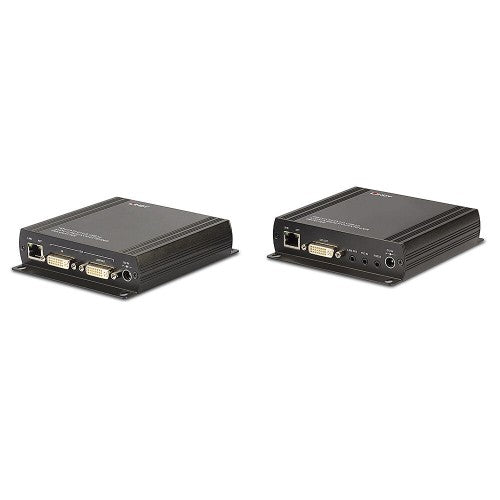

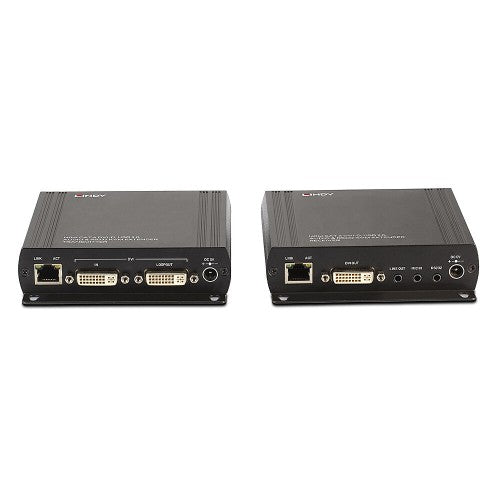

140m Cat.6 DVI-D, USB, Audio and RS-232 KVM Extender
The extenders built-in EDID function ensures maximum compatibility with the display or projector at the receiver or even at the loop out DVI port on the transmitter, while analogue audio 3.5mm inputs and outputs allow users to connect speakers, microphones and a line-in interface.
RS-232 connections also allow for integration into pre-installed control systems.
This extender provides a simple plug and play installation, with no additional drivers required, great for both professional and first time users. In addition to point-to-point applications, it can be used also via a gigabit network, a rotary switch on both units can pair transmitters with receivers.
Please note: to reach distances longer that 140m, it is possible to add a gigabit network switch or the repeater 42709 inbetween transmitter and receiver (with 42709 the total length supported is up to 280m).
Key Features
- Extends DVI-D, USB 2.0, Audio and RS-232 up to 140m using only one Cat.6 cable
- Supports DVI Single Link resolutions up to 1920x1200
- 4 USB 2.0 Type A ports to connect keyboard, mouse and mass storage devices
- Easy, user friendly installation - no software required
- 2 year warranty
Description
The Lindy Cat.6 DVI-D Single Link, USB, Audio and RS-232 KVM Extender allows users to control a source device such as a PC from a single keyboard, mouse and display up to 140m using a Cat.6 RJ-45 cable. Supports single link resolutions up to 1920x1200 and HDMI signals including Full HD 1080p, 3D and HDCP 1.4. Ideal for KVM applications, the Extender consists of a transmitter and a receiver unit. The transmitter must be connected to a source such as a PC or KVM Switch, while the console with display, keyboard and mouse must be connected to the receiver. It's also possible to connect additional USB 2.0 devices such as storage and hard drives (webcams are not supported).The extenders built-in EDID function ensures maximum compatibility with the display or projector at the receiver or even at the loop out DVI port on the transmitter, while analogue audio 3.5mm inputs and outputs allow users to connect speakers, microphones and a line-in interface.
RS-232 connections also allow for integration into pre-installed control systems.
This extender provides a simple plug and play installation, with no additional drivers required, great for both professional and first time users. In addition to point-to-point applications, it can be used also via a gigabit network, a rotary switch on both units can pair transmitters with receivers.
Please note: to reach distances longer that 140m, it is possible to add a gigabit network switch or the repeater 42709 inbetween transmitter and receiver (with 42709 the total length supported is up to 280m).
Specifications
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 140 m |
| Cable types supported | Cat6 |
| Product colour | Black |
| Material | Metal |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| USB 2.0 ports quantity | 4 |
| Maximum refresh rate | 60 Hz |
| Transmitter | |
| Transmitter video port type | DVI-I |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | DVI-I |
| RJ-45 ports quantity (receiver) | 1 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| USB port type | USB Type-A/USB Type-B |
| RJ-45 ports quantity | 2 |
| PC Audio in | Yes |
| Weight & dimensions | |
| Transmitter width | 12.5 cm |
| Transmitter depth | 14 cm |
| Transmitter height | 3 cm |
| Receiver width | 12.5 cm |
| Receiver depth | 14 cm |
| Receiver height | 3 cm |
| Package width | 355 mm |
| Package depth | 195 mm |
| Package height | 60 mm |
| Package weight | 1.52 kg |
| Packaging data | |
| Package width | 355 mm |
| Package depth | 195 mm |
| Package height | 60 mm |
| Package weight | 1.52 kg |
| AC adapter included | Yes |
| Cables included | Audio (3.5mm), RS-232, USB Type-A to USB Type-B |
| Manual | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | Audio (3.5mm), RS-232, USB Type-A to USB Type-B |
| Manual | Yes |
| Screwdriver included | Yes |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Weight | 1.27 kg |
| Power requirements | 5VDC 2.6A |
| Maximum resolution | 1920 x 1200 pixels |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
