Description

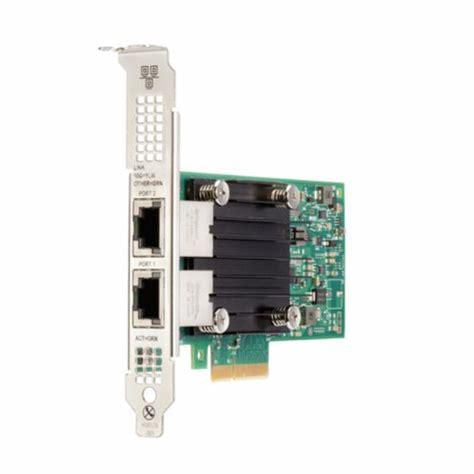

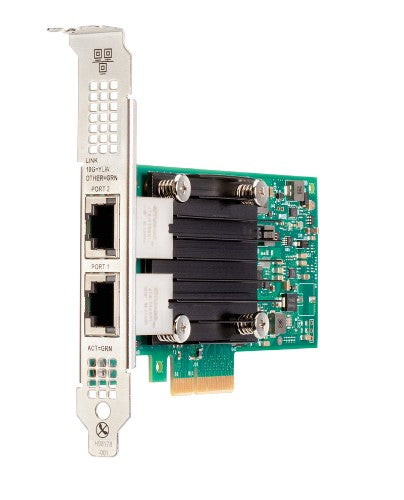

Ethernet 10Gb 2-port BASE-T X550-AT2 Adapter, Refurbished
Features
Improve Application Performance
- HPE Ethernet 10Gb 2-port 562 Adapters offload packet processing to reduce CPU utilization with tunnel offloads (VXLAN and NVGRE). Now you can distribute network traffic across CPU cores in your data center.
- Speeds up packet processing to service more I/O requests utilizing data plane development packet (DPDK).
Increase I/O Bandwidth for Workload Intensive Applications
- HPE Ethernet 10Gb 2-port 562 Adapters deliver single root I/O virtualization (SR-IOV) which increases virtual network performance while decreasing CPU utilization.
- Provides a seamless performance upgrade from 1GBASE-T to 10GBASE-T with backward compatibility.
Description
Are you looking for a simple way to migrate to 10G high performance data center with low cost and low power in your data center? The HPE Ethernet 10Gb 2-port 562 Adapters deliver high performance and low latency for Ethernet traffic to and from the server with minimal CPU resources required. Processing of I/O packets on the adapter frees up CPU to do other more important tasks. For environments such as Telco/NFV, high-performance computing (HPC) and ecommerce that deal with large volumes of small packet traffic, these adapters accelerate small packet processing by bypassing processing in the host O/S kernel.Features
Improve Application Performance
- HPE Ethernet 10Gb 2-port 562 Adapters offload packet processing to reduce CPU utilization with tunnel offloads (VXLAN and NVGRE). Now you can distribute network traffic across CPU cores in your data center.
- Speeds up packet processing to service more I/O requests utilizing data plane development packet (DPDK).
Increase I/O Bandwidth for Workload Intensive Applications
- HPE Ethernet 10Gb 2-port 562 Adapters deliver single root I/O virtualization (SR-IOV) which increases virtual network performance while decreasing CPU utilization.
- Provides a seamless performance upgrade from 1GBASE-T to 10GBASE-T with backward compatibility.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 3.0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 20000 Mbit/s |
| Network | |
| Chipset | Intel® X550-AT2 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10GBase-T |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1as, IEEE 802.3ad, IEEE 802.3x |
| Jumbo frames support | Yes |
| Ethernet LAN data rates | 10000 Mbit/s |
| Maximum data transfer rate | 20000 Mbit/s |
| Technical details | |
| Compatible products | HPE ProLiant DL120 Gen10 Server HPE ProLiant DL160 Gen10 Server HPE ProLiant DL180 Gen10 Server HPE ProLiant DL360 Gen10 Server HPE ProLiant DL380 Gen10 Server HPE ProLiant DL560 Gen10 Server HPE ProLiant DL580 Gen10 Server HPE Apollo 2000 - XL170r Gen10 Server HPE Apollo 2000 - XL190r Gen10 Server HPE Apollo 4500 - XL450 Gen10 Server HPE Apollo 6000 – XL230k Gen10 Server HPE ProLiant ML110 Gen10 Server HPE ProLiant ML350 Gen10 Server |
| Compliance certificates | RoHS |
| Design | |
| Compatible products | HPE ProLiant DL120 Gen10 Server HPE ProLiant DL160 Gen10 Server HPE ProLiant DL180 Gen10 Server HPE ProLiant DL360 Gen10 Server HPE ProLiant DL380 Gen10 Server HPE ProLiant DL560 Gen10 Server HPE ProLiant DL580 Gen10 Server HPE Apollo 2000 - XL170r Gen10 Server HPE Apollo 2000 - XL190r Gen10 Server HPE Apollo 4500 - XL450 Gen10 Server HPE Apollo 6000 – XL230k Gen10 Server HPE ProLiant ML110 Gen10 Server HPE ProLiant ML350 Gen10 Server |
| Chipset | Intel® X550-AT2 |
| Internal | Yes |
| Component for | Server |
| Power | |
| Power consumption (typical) | 10.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Performance | |
| Compatible products | HPE ProLiant DL120 Gen10 Server HPE ProLiant DL160 Gen10 Server HPE ProLiant DL180 Gen10 Server HPE ProLiant DL360 Gen10 Server HPE ProLiant DL380 Gen10 Server HPE ProLiant DL560 Gen10 Server HPE ProLiant DL580 Gen10 Server HPE Apollo 2000 - XL170r Gen10 Server HPE Apollo 2000 - XL190r Gen10 Server HPE Apollo 4500 - XL450 Gen10 Server HPE Apollo 6000 – XL230k Gen10 Server HPE ProLiant ML110 Gen10 Server HPE ProLiant ML350 Gen10 Server |
| Other features | |
| Chipset | Intel® X550-AT2 |
